Description

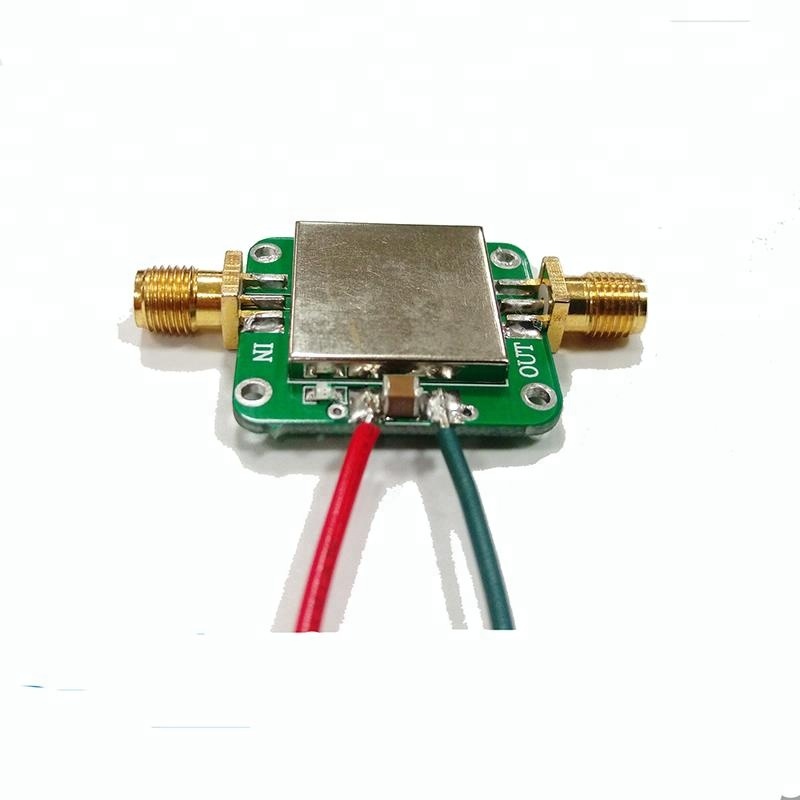

DC12V Broadband 1MHz-2GHz Gain 32dB RF LNA Amplifier Cable TV Booster Signal Amplifier FM Signal Amplifier
Product Description
The amplifier has the advantages of wide frequency range, high gain, low noise figure, etc.
Application
It can be used in various RF receiving front ends to increase the communication distance! Wide range of shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers and other places where low noise and small signal RF amplification is required!
Specification
Supply voltage: 12V DC
Gain: 32dB
Input and output impedance: 50Ω
Bandwidth: 10MHz to 2GHz (different gains at different frequencies)
Gain: 32dB
Input and output impedance: 50Ω
Bandwidth: 10MHz to 2GHz (different gains at different frequencies)
|
Frequency
|
gain
|
|
0.05GHz
|
20dB
|
|
0.1GHz
|
27dB
|
|
0.1GHz
|
29.8dB
|
|
0.5GHz
|
27.3dB
|
|
0.8GHz
|
25dB
|
|
1GHz
|
23dB
|
|
1.5GHz
|
17dB
|
|
2GHz
|
16.5dB
|
Details Images
