Description

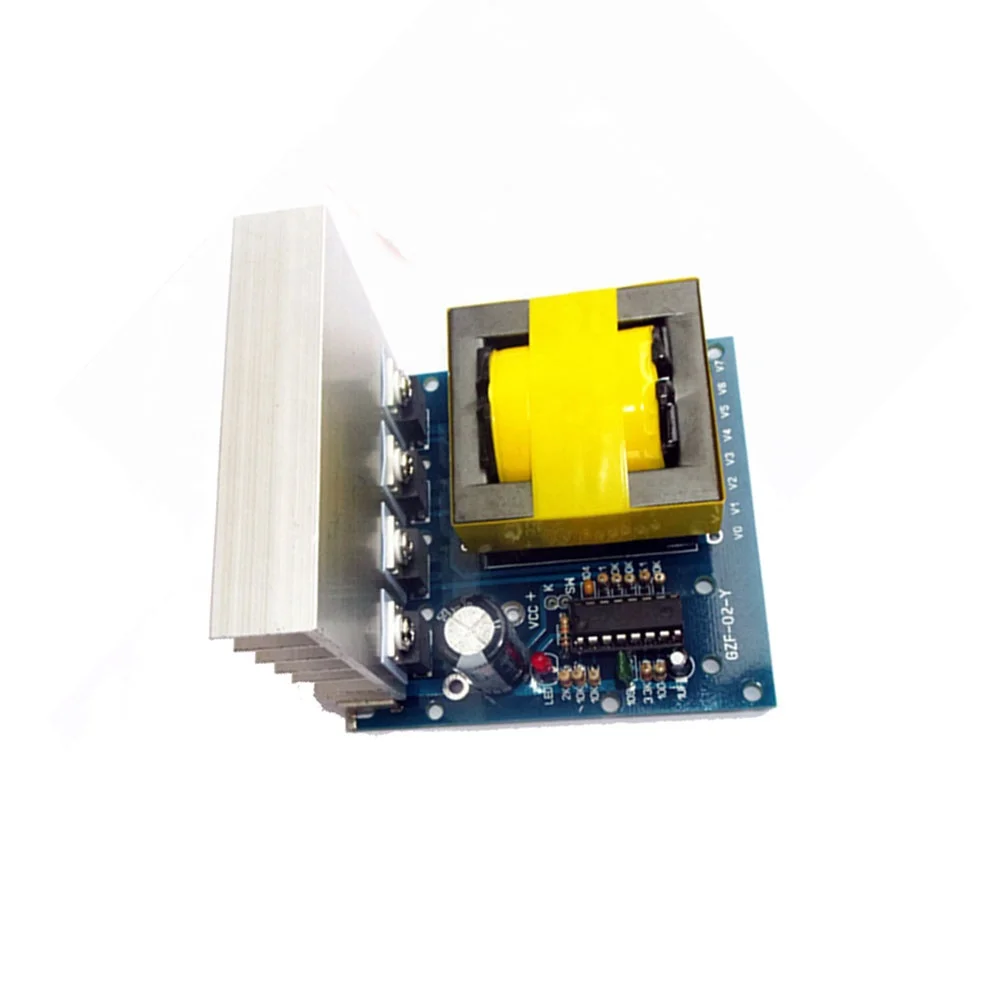

DC12V/24V to AC18V/0-220V-380V Inverter Pre-stage Booster Module DC to AC Power Converter 500 Watt Power Inverter
Product Description
Parameter
|
Power
|
500W
|
|
Input
|
DC12V 24V
|
|
Output
|
AC220V 380V and AC18V (can be customized)
|
|
Quiescent Current
|
0.35A
|
|
Output waveform
|
high frequency square wave
|
|
Protection
|
No protection
|
|
size
|
8cm*7.5cm
|
Performance characteristics:
1. The product should be widely used, products with high energy efficiency, long life, low power consumption, easy to use and safe, energy saving and durable, is the field, night camp, night market vendors, driving family emergency power failure is a good helper.
2 can be used as a sine wave, repair sine wave, single silicon machine, four silicon pre-stage step-up inverter circuit. For electronic enthusiasts DIY production, maintenance replacement, manufacturers control cabinet supporting products and so on.
2 can be used as a sine wave, repair sine wave, single silicon machine, four silicon pre-stage step-up inverter circuit. For electronic enthusiasts DIY production, maintenance replacement, manufacturers control cabinet supporting products and so on.
Note
1. This board is a high-frequency square wave AC output, so the general inductive appliances can not be brought! ! " Such as: electric motor fan coil transformer, etc."
Another: simple resistance and pressure reduction class small appliances, cheap resistance capacity step-down LED lamps may not be
used
2. When connected to a small load (LED lamp mobile phone charger DVD set-top box, etc.) It is recommended that the output voltage low point such as: 160V
3. It is recommended to increase the heat sink when the load is working for a long time.
4 power supply can not be reversed. Another power supply and power line should be large enough current
5. Because there is no protection output Do not overload Do not short circuit.
6. Output high-frequency square wave AC voltage Many multimeters will not measure or display too low (which is incorrect, not the actual voltage)
Special reminder: Electronic products suggest that we output a series of high-frequency diodes to rectify into DC output on our board, because many switching power supply rectifying parts of these appliances are used for the sake of cost-saving ordinary rectifier, so they are connected to the "high-frequency AC output "The rectifying diode of the conductor will be heated and damaged, and the diode will break down." Eventually burned board.
Another: simple resistance and pressure reduction class small appliances, cheap resistance capacity step-down LED lamps may not be
used
2. When connected to a small load (LED lamp mobile phone charger DVD set-top box, etc.) It is recommended that the output voltage low point such as: 160V
3. It is recommended to increase the heat sink when the load is working for a long time.
4 power supply can not be reversed. Another power supply and power line should be large enough current
5. Because there is no protection output Do not overload Do not short circuit.
6. Output high-frequency square wave AC voltage Many multimeters will not measure or display too low (which is incorrect, not the actual voltage)
Special reminder: Electronic products suggest that we output a series of high-frequency diodes to rectify into DC output on our board, because many switching power supply rectifying parts of these appliances are used for the sake of cost-saving ordinary rectifier, so they are connected to the "high-frequency AC output "The rectifying diode of the conductor will be heated and damaged, and the diode will break down." Eventually burned board.
Details Images
