Description
Product Description

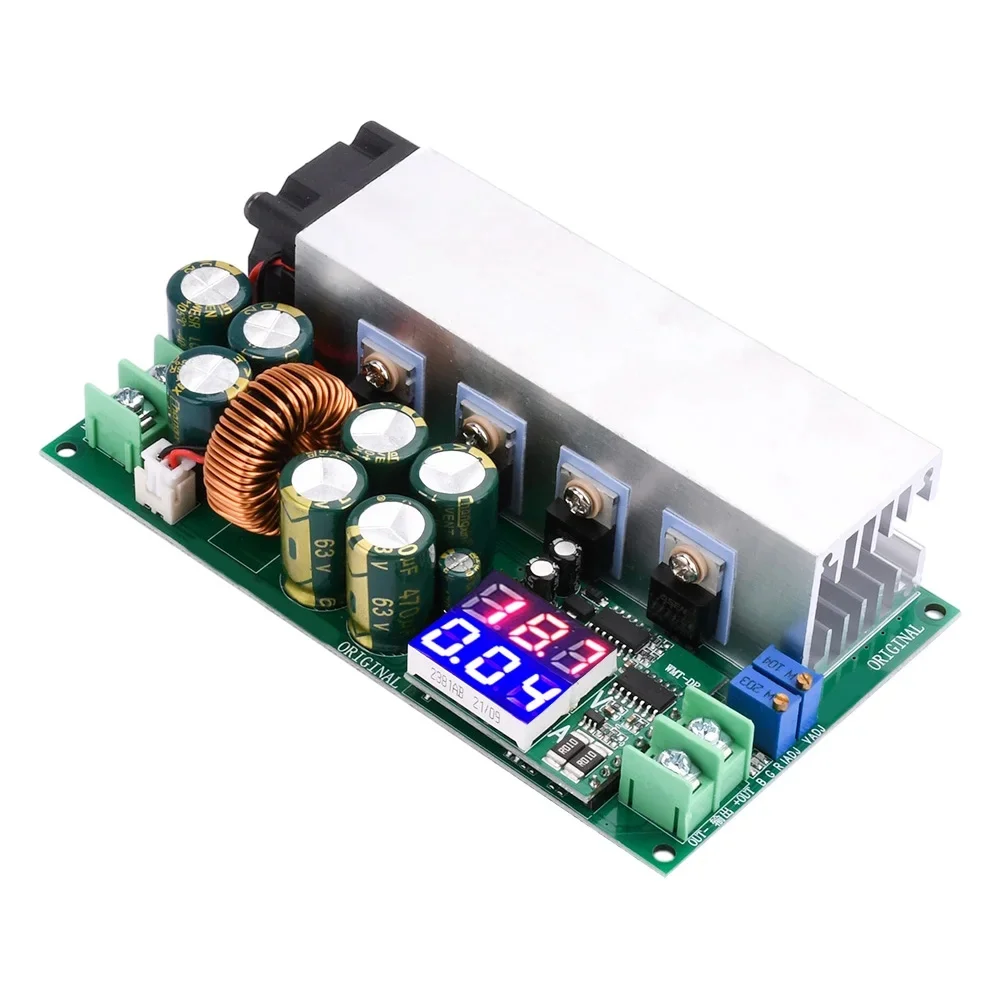

DC12-80V 20A Adjustable Step-Down Power Module Constant Current Constant Voltage Module Voltage And Current LED Display 600W
Introduction
Features:
1. High performance, continuously adjustable output voltage and current; 2. Add digital display function, output voltage can be displayed, making it more convenient to use; 3. Easy to operate, ready to use when connected to the line; 4. Made of high-quality materials, with an input voltage of up to 80V; 5. Extremely efficient, up to 93%.
Parameters: Input voltage: DC12-80V (cannot be used for 72V batteries) Output voltage: 2.5V-50V adjustable (can only be reduced) (maximum output voltage=input voltage * 0.8) Output current: 20A (MAX) 25A overcurrent Maximum power: 600W Conversion efficiency: ≥ 93% Protection: overcurrent protection, anti backflow protection Size: L125mm * W70mm * H32mm Working temperature: -40-85 ℃ Storage environment: -20 ℃ -+50 ℃ Relative humidity: 65 ± 20% Wiring: In high-power situations, the wiring should be as thick as possible.
Interface Description: IN+: Input positive pole IN -: Input negative pole OUT+: output positive pole OUT -: Output negative pole B-Bule blue light: constant voltage without current G-Green green light: current light C-R-Red red light: constant current mode light IADJ: Current regulation, clockwise large, counterclockwise small VADJ: Voltage regulation, clockwise large, counterclockwise small Attention: To charge the battery and battery, please add a diode to the output to prevent backflow.
