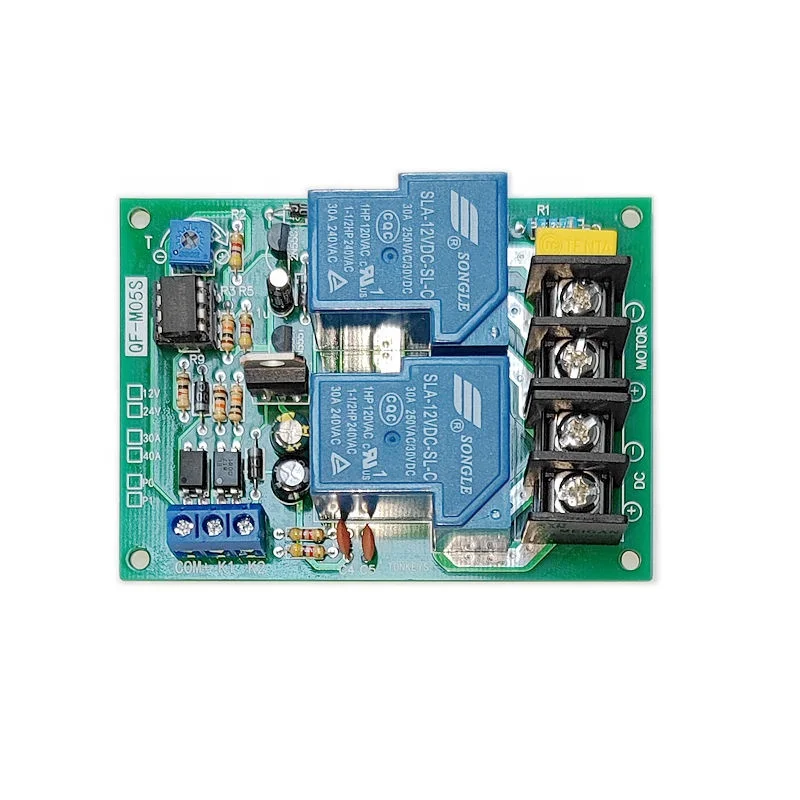

DC Motor Forward and Reverse Rotation Control Board with Overtime Stop Forward and Reverse Relay Module for Motor
Product Description
How to choose it?
1, Pls leave us a note, working voltage is DC12V or 24V optional,The current is 30A 40A can choose.
2, pls choose the following working mode.
Self-locking/0-60 seconds Self-locking/0-10 points Self-locking/no timeout function P1 jog/bridge drive without lock Self-locking/0-10 seconds P2 single key switch self-locking without timeout Forward and reverse automatically cycle 0-10 seconds Forward and reverse automatically cycle 0-60 seconds There are 4 working modes to choose from, please note: (1) 0-60 seconds adjustable timeout: it will stop automatically when it reaches the set time in forward rotation, and it stops automatically when it reaches the set time in reverse rotation. The time setting range is 0-60 seconds. (2) 0-10 minutes adjustable timeout: it will stop automatically when it reaches the set time in forward rotation, and it stops automatically when it reaches the set time in reverse rotation. The time setting range is 0-10 minutes. (3) No timeout function: After forward rotation is triggered, it enters forward rotation until it encounters a reverse rotation signal; after reverse rotation is triggered, it enters reverse rotation until it encounters a forward rotation signal. (4) Jog/no lock and no timeout: When the forward rotation input has a signal, it will enter forward rotation, and the forward rotation signal will stop immediately when the forward rotation signal disappears; when the reverse input has a signal, it will enter reverse rotation, and the reverse rotation signal will stop immediately when the reverse signal disappears. That is, no lock and no delay.Application
1. Motor forward and reverse control 2. Cooperate with the travel switch to realize the reciprocating motion control
Specification
|
item
|
value
|
|
Name
|
DC motor forward and reverse control module (with overtime stop)
|
|
Function
|
The forward key controls the motor to rotate forward, and the reverse key controls the motor to reverse. With overtime stop function, the time is adjustable.
|
|
Power supply
|
12V/ 24V
|
|
Power supply protection
|
With reverse connection protection, there is no response when the power is connected reversely, and the module will not be damaged.
|
|
Output capacity
|
Maximum 30A and 40A can be purchased. Direct output voltage (active output, directly connected to the motor)
|
|
Response speed
|
20mS (20 milliseconds)
|
|
Delay range
|
1-60 seconds adjustable (see options for other ranges)
|
|
Module power consumption
|
<1W
|
|
Life
|
more than 100,000 relay actions
|
Installation Instructions
Terminal description
COM: The common terminal of K1 K2 K1: Forward rotation signal input, a short positive voltage pulse can switch the motor to forward rotation. (The motor will stop after the jog version signal disappears). K2: Reverse signal input, a short positive voltage pulse can switch the motor to reverse. When K1 and K2 input signals at the same time, the motor will stop suddenly. (The motor will stop after the jog version signal disappears). DC+: Power supply positive input, DC DC-: Power negative input, DC MT+: Positive motor MT-: negative pole of motor
Details Images
