Description

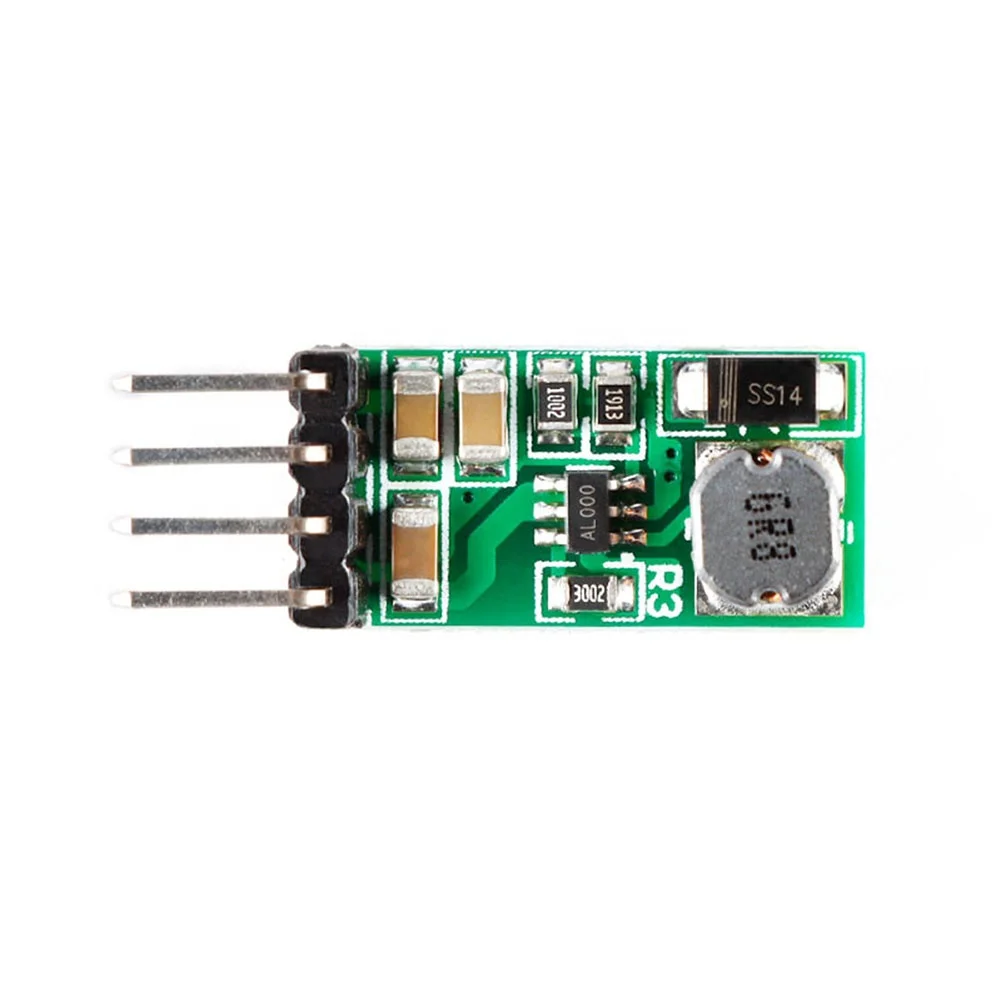

DC DC Step Up Power Supply Boost Converter Board Module 3V-6V Input to 12V Output Boost Converter
Product Description
The power supply module is a power supply that can be directly mounted on the printed circuit board. There are two types of step-down and step-up. Its characteristics are that it can be an application-specific integrated circuit (ASIC), digital signal processor (DSP), microprocessor, Memory, field programmable gate array (FPGA) and other digital or analog loads provide power.
Specification
item
value
Input voltage
3-6V
Output voltage
12V
Output current
0.5A (maximum)
Conversion efficiency
90% (maximum)
Output ripple
<50mV
Output accuracy
±0.1V
working frequency
1. 0MHz
Operating temperature
-40℃-+85℃
Working humidity
20%~90%
Size
20.5mm* 10.5mm*5.5mm without pin header (length * width * height)
PCB layers
2-layer board
Shutdown function
not support
Cooling method
Natural heat dissipation
Installation method
2.54MM Pin
Whether to bring an apartment
Without isolation
Production Process
Machine paste, reflow soldering
Design aging standards
720 hours without failure
Factory aging standard
72 hours without failure
Service life
without 3000 hours failure (the output current does not exceed the rated value)
