Description
Product Description

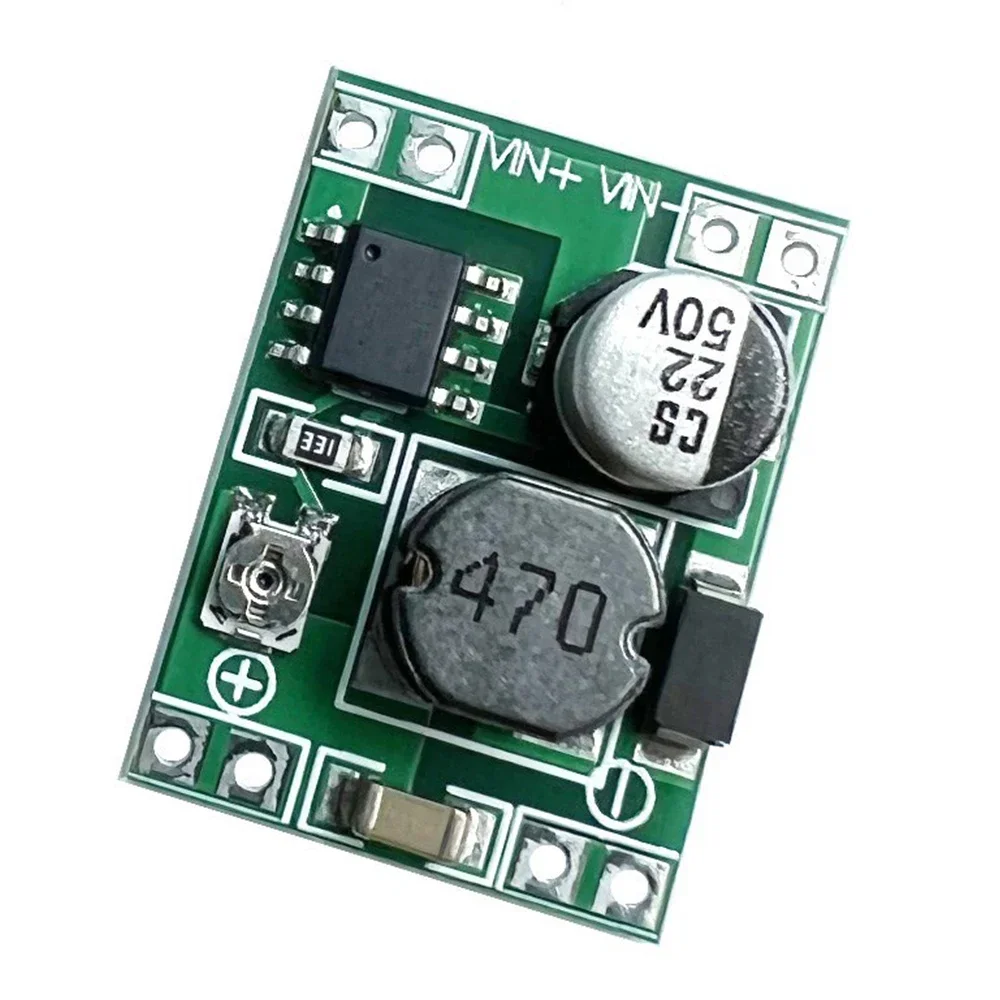

DC-DC Step Down Module Adjustable Output Voltage Power Supply DC 5V-40V to DC 1.2-35V Mini Buck Converter XL1509
Features:
1.Ultra-small volume 2.Long service life 3.Safe and reliable 4.Exquisite workmanship 5.It is applicable to DIY mobile power supply, communication equipment power supply and various occasions with strict requirements for volume and weight (such as aviation model).
Parameters:
Name: XL1509 DC-DC step-down module Input: 5V-40V Output: 1.2-35V continuously adjustable Output current: 2A (Max) Conversion efficiency: 96% (Max) Switching frequency: 150KHz Size: L22mm * W17mm * H7mm Working temperature: - 40 ℃ -+85 ℃ Load capacity: about 5W for long time and about 7W for short time
