Description
DC-DC Solar Voltage Regulators Stabilizers 5 9 12 24V Output Monitoring Power Converter Car Step Down Buck Regulator
Product Description
Feature
1. Made with imported chips, good quality and low price 2. Synchronous rectification technology, the conversion rate is over 96%, and the heat generation is extremely low. 3. Brake automatic protection functions such as over voltage, over current, over temperature, short circuit, etc., and work normally after the conditions are restored. 4. Epoxy resin potting, waterproof, shockproof, moisture-proof and dust-proof. 5. Small size and easy installation. 6. Using imported components from Japan, quality assurance. The potting package is moisture-proof and waterproof, anti-vibration and anti-shock, low heat, stable performance, suitable for long-term work.
Note
We have following style can choose, pls leave us a note which one do you want.

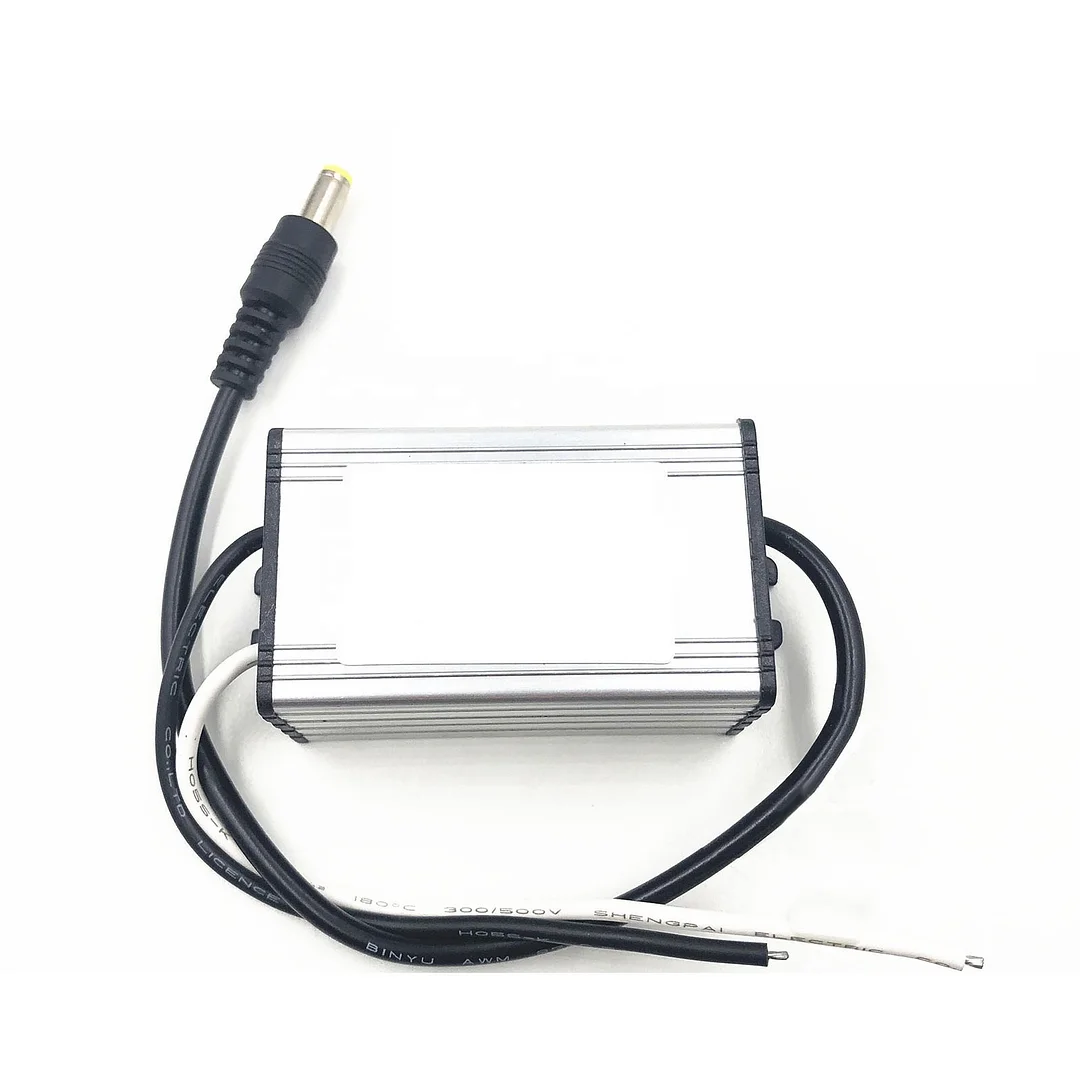

17-58V to 12V3A 17-58V to 12V6A 8-58V to 5V3A 8-58V to 5V6A 12-55V to 9V3A 17-55V to 9V6A 8-35V regulated 12V2A 8-35V regulated 12V3A 8-35V voltage stabilized 12V5A (cast aluminum) 17-58V to 12V3A with DC connector 17-58V to 12V6A with DC connector 8-58V to 5V3A with DC connector 8-58V to 5V6A with DC connector 12-55V to 9V3A with DC connector 17-55V to 9V6A with DC connector 8-35V regulated 12V2A with DC connector 8-35V regulated 12V3A with DC connector 8-35V regulated 12V5A with DC connector 28-55V to 24V3A 28-55V to 24V3A with DC connector Specification
|
item
|
value
|
|
Module nature
|
non-isolated buck regulator module
|
|
Scope of application
|
high-power vehicle power supply, network power supply, various devices that require 12V stabilized power supply power supply
|
|
Input voltage
|
17-55V 8-58V
|
|
Output voltage
|
fixed output: 12V9V5V
|
|
Output current
|
2A to 6A
|
|
Output overcurrent protection
|
automatic overcurrent limit output when the output current is too large
|
|
Output short-circuit protection
|
When the output terminal is completely short-circuited. Automatic current limit
|
|
Minimum pressure difference
|
2V
|
|
Output power
|
natural cooling 36W/72W
|
|
Conversion efficiency
|
up to 96%
|
|
Working temperature
|
industrial grade (-40°C to +85°C)
|
|
Load regulation
|
±1%
|
|
Voltage adjustment rate
|
±0.5%
|
|
Dynamic response speed
|
5% 200uS
|
Details Images
