Description
Product Description

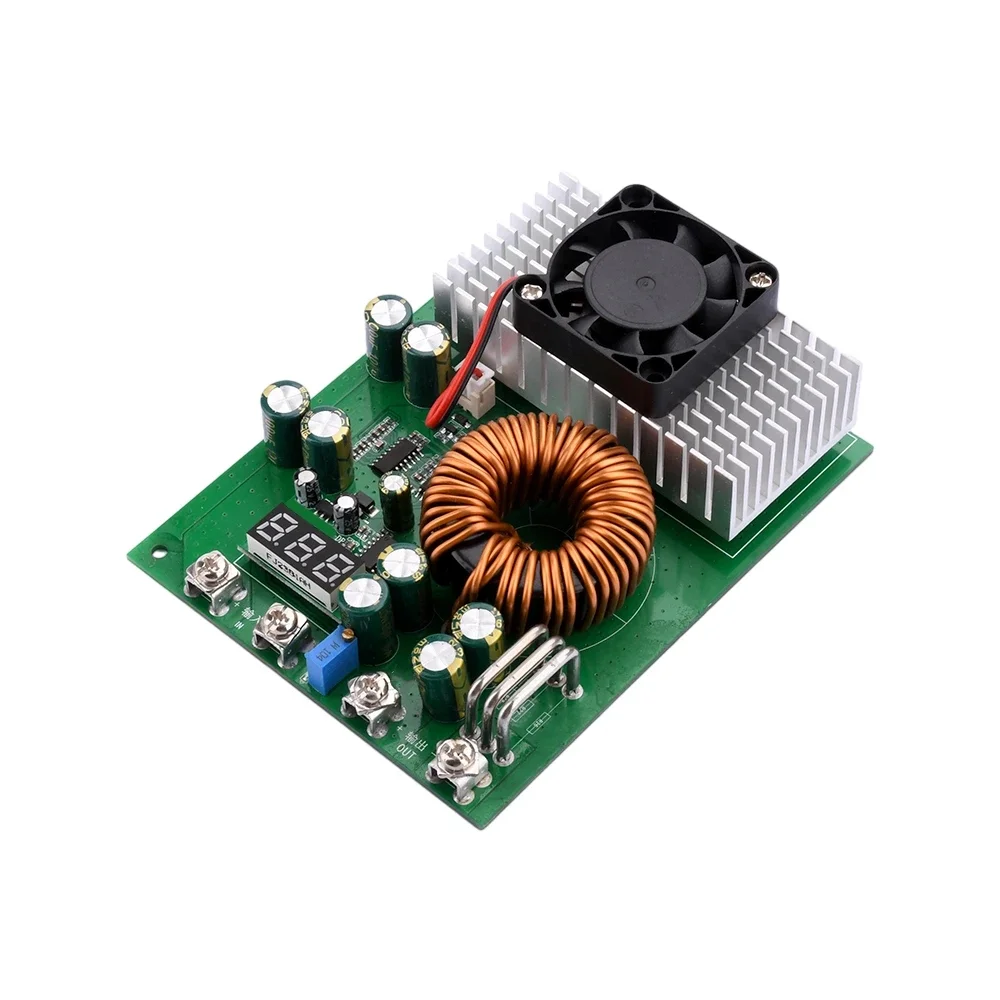

DC-DC High Power 1000W Adjustable Step-down Power Supply Module With Fan 25V-90V To 2.5V-50V Buck Converter 50A Constant Current
Introduction
Features: 1.High performance, continuously adjustable output voltage and current; 2.Add digital display function for more convenient use; 3.Easy to operate, ready to use when connected to the line; 4.Made of high-quality materials, with an input voltage of up to 90V; 5.Extremely efficient, up to 93%. Specifications: Input voltage: DC25-90V (cannot be used for 84V batteries) Output voltage: 2.5V-50V adjustable (can only be reduced) (maximum output voltage=input voltage * 0.8) Output current: 50A (MAX), long-term operation within 30A Maximum power: 1000W (for use with electric tools within 1000W) Conversion efficiency: ≥ 93% Protection: overcurrent protection 60A Size: L120mm * W97mm * H40mm Working temperature: -40-85 ℃ Storage environment: -20 ℃ -+50 ℃ Relative humidity: 65 ± 20% Wiring: In high-power situations, the wiring should be as thick as possible. Interface Description: IN+: Input positive pole IN -: Input negative pole OUT+: output positive pole OUT -: Output negative pole Note: To charge the battery and battery, please add a diode to the output to prevent backflow! Package Included: 1X module
