Product Description

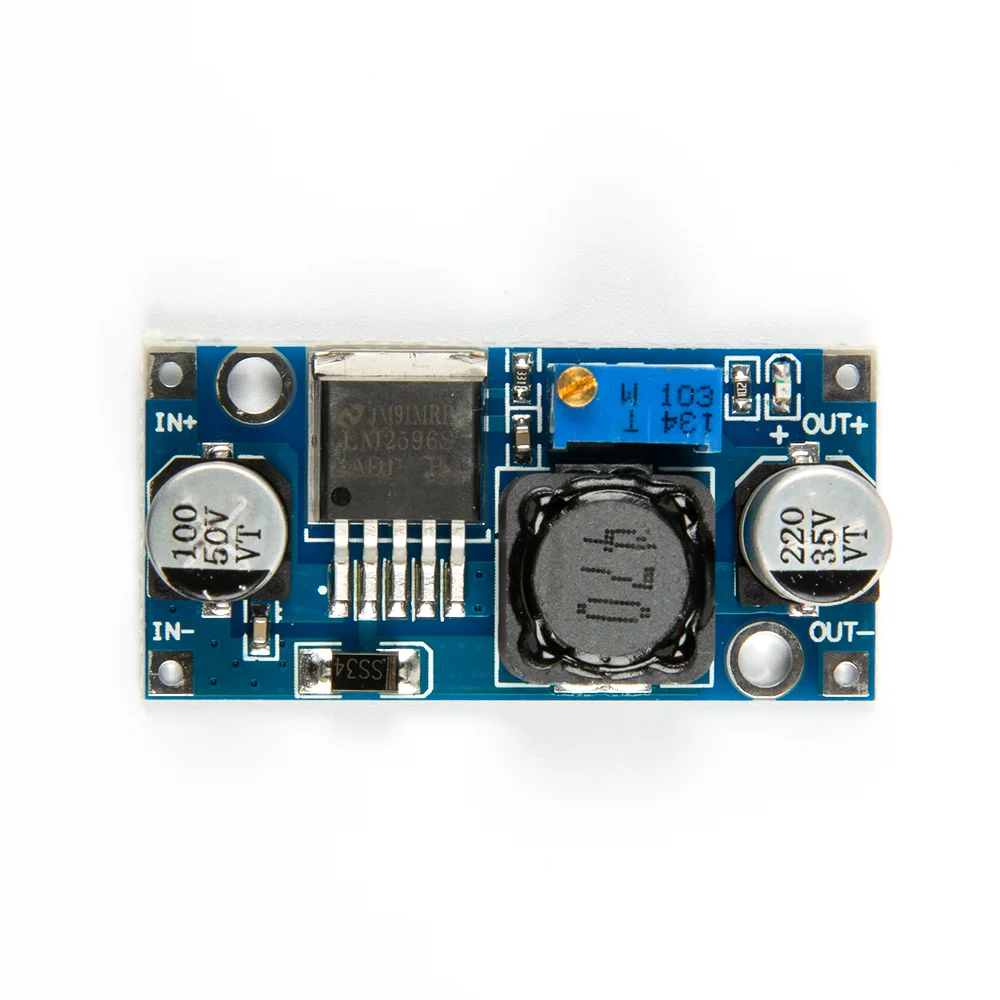

DC-DC Adjustable Voltage Regulator DC-DC Step-down Converter Module
Description
Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features:
Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Dynamic Response speed: 5% 200uS
Dimension: 43*20*14mm (L*W*H)
1. Industry market conditions and original factory prices fluctuate frequently, please confirm with the business for specific prices
Input voltage:4.5-35V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A,maximum 3A(Additional heatsink is required)
Features:
Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short Circuit Protection: Current limiting, since the recovery
Operating Temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load Temperature rise: 40
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Dynamic Response speed: 5% 200uS
Dimension: 43*20*14mm (L*W*H)
1. Industry market conditions and original factory prices fluctuate frequently, please confirm with the business for specific prices
2. The original package is packaged, the specific price involves unpacking and repacking according to the required quantity, please confirm with the business for the specific price
