Description
Product Description

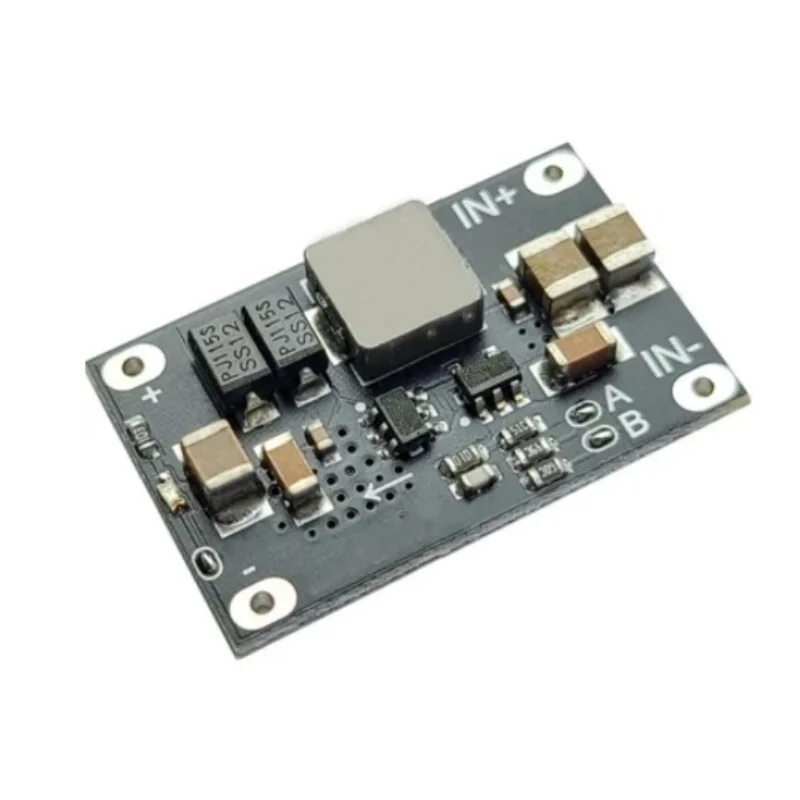

DC-DC 3-5.5V to 12V 1A Step-Down Boost Module 10W to 5V 8V 9V 12V Output Lithium Battery PCB DC-DC Step-Down Boost Board



Product selling points:



1. Use high-quality materials, durable

2. Delicate appearance

3. Stable performance

4. Easy to use

5. Wide range of use



Parameters:



Input voltage range: 3V~5.5V. The input voltage should be lower than the set output voltage.

The output voltage can be set to 5V/8V/9V/12V, and the default is 12V

Output capacity: when input with 3.6V lithium battery, it can output 5V1.5A, 8V1A, 9V1A and 12V0.8A;

With 5V input, 8V1.2A, 9V1.2A

12V1A

When the default output is 12V, the LED indicator consumes about 1mA (the input current is about 3mA)

If the indicator light is turned off, the input current is<1mA at no load

Description of voltage setting:

The words A and B can be seen on the front of the PCB, and the output voltage can be changed by changing the on-off of the pad next to the character with an electric soldering iron.

A B VOUT

Disconnect 5V

Disconnect 8V

Connected and disconnected 9V

Connected 12V



Package list:

DC-DC booster module
