Description
Product Description

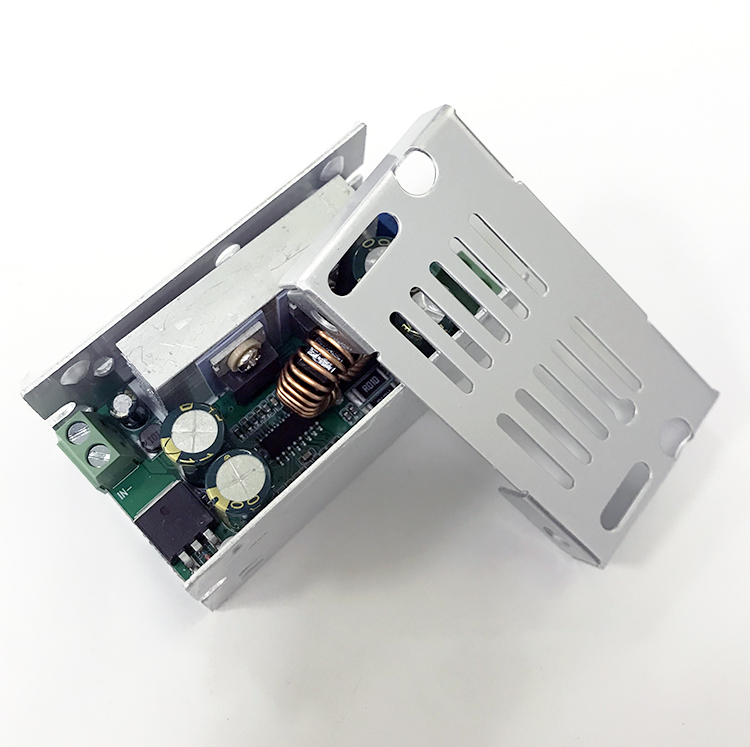

DC DC 15A 200W 60V Adjustable Step Down Converter Buck Board Adjustable Voltage Module Stabilized Synchronous Rectification
Module Name: DC-DC Synchronous Rectifier Adjustable Buck module (with housing) Input: 7V-60V Output: 1-35V adjustable (maximum cannot exceed 35V) Efficiency: 96% (MAX) Protection: short circuit protection, reverse protection (reverse no burning plate) Module size: L70mm*W40mm*H30mm Module weight: 77g Operating temperature: -40℃-+85℃ Load capacity: 15A (MAX) Output power: natural heat dissipation 100W, enhanced heat dissipation 150W. This power is the power when the pressure difference is small, and the power cannot be reached when the pressure difference is large. Wiring mode: The terminal does not need to be welded. IN is the input and OUT is the output Special note: The greater the pressure difference between input and output of the module, the more severe the heating, the lower the efficiency, and the worse the load capacity.
