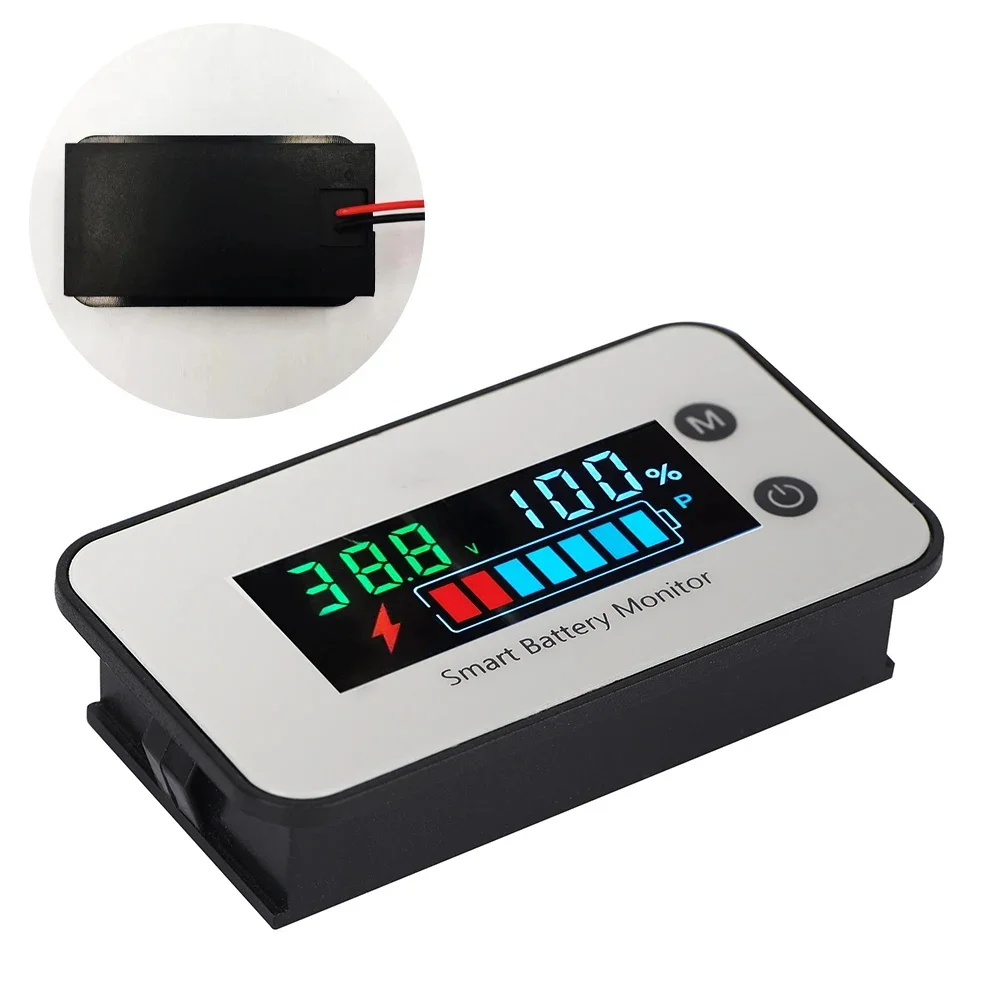

DC 7-100v Battery Capacity Monitor Meter 12v 24v 48v Battery Power Percentage Voltage Temperature Indicator Gauge 4 Styles
Product selling points:
1. Using high quality materials, durable and long-lasting
2. High-quality environmental protection shell
3. Exquisite appearance
4. Accurate measurement
5. Whether it is a motorcycle, two-wheeled electric car, three-wheeled electric car, car, supercar, as long as it is with a battery can measure the percentage of the remaining voltage and power.
Parameters:
Voltage range: DC7-100V
Working current: <10mA
Voltage accuracy: 0.1V (0.1%-0.5%)
Display mode: liquid crystal screen
Display color: color
Measurement accuracy: 0.5%
Measurement speed: 2 times per second
Supported battery types:
1.L ternary lithium battery, measuring range from L03 string to L20 string. With power failure memory function
2.P.Lead-acid battery, measuring range from DC 12V to 24V, 36V, 48V, 60V, 72V. with power failure memory function.
3.F. LiFePO4 battery, measuring range from F04 to F24 series, with power failure memory function.
4.Customized setting: If the battery type is not the above 3, please customize the setting
Wiring method:
Only two wires: red wire for positive ("+"), black wire for negative ("-")
Mode introduction:
Mode 1: is the parameter setting: Setting>L-Lithium ternary battery
Mode 2: Timing function: the meter can be set to auto off
Mode 3: is customized mode: customize full voltage and dead voltage
Mode 4: is low voltage alarm. Set the low voltage value on the meter. Display 10.0.20.0. The left side is the voltage when the battery is 10%, the right side is the voltage when the battery is 100%.
Mode 5: is calibration voltage
Mode 6: is the temperature setting, you can set the temperature to display (ON) or not display (OFF)
Mode 7: is the high voltage alarm, set the high voltage value, when higher than this value will alarm.
