DIY Reverb Board

$5.90
Quantity

Description

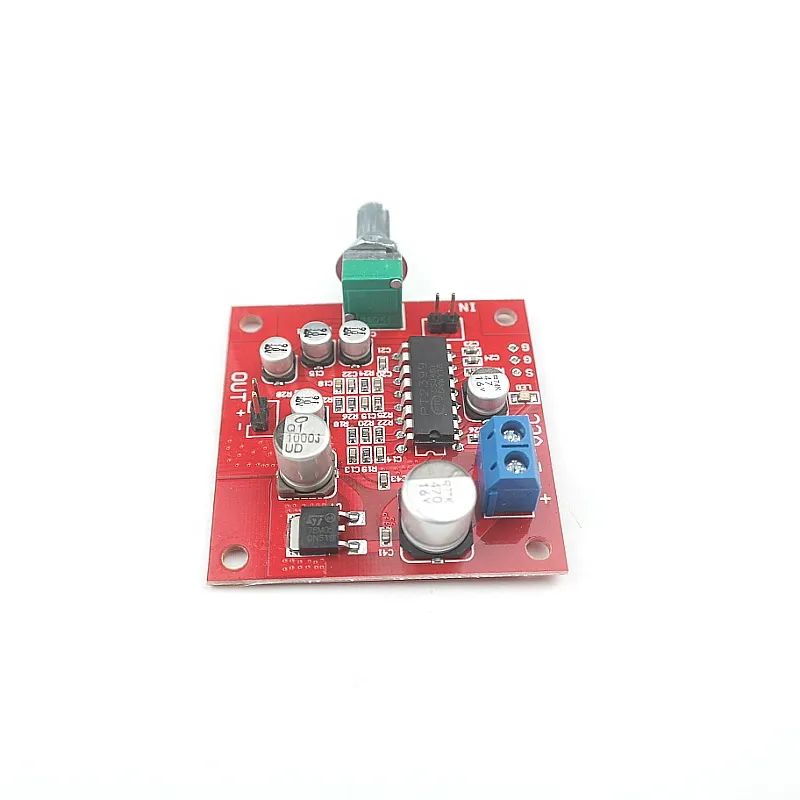

DC 6-15V PT2399 Microphone Reverb Plate Reverb Adjustment Digital Kara OK Reverberation Board DIY Reverb Board
Product Description
The latest revision: It is made by patch technology, the overall height of the board is only about 13mm, and the performance is more stable.
R27 is the reverberation depth resistor. If you need to change it, you can remove R27 and connect another potentiometer to the S-G-G pad for adjustment. The potentiometer can be used for 20k-50k.

Instructions for use of microphone reverb board

Microphone---->microphone preamplifier---->microphone reverb board----->power amplifier, this microphone reverb board can be combined with our MAX9812 electret microphone front board to form an OK board with reverb function. Note: The board is a separate reverb board without microphone preamplifier
Voltage
DC6-15V
Size
50mm*50mm
Details Images
