1 Working voltage: 5V (5V version), 8-16V (12V version);
2 Working current: 12-15MA;
3 MODBUS RTU command supports 03, 06, 16 function codes;
4 RS485 interface/TTL232 interface optional
5 Sensor model: HX711, 24-bitADC
6 Load cell input signal range: ±20mv
7 Sampling rate: 10HZ or 40HZ can be set
8 The functions of baud rate, division value, zero-chasing range, median filter, average filter, dynamic tracking, etc. are integrated inside.
9 Default baud rate 9600 N 8 1, baud rate and parity bit optional
10 If the setting is wrong, you can short-circuit ''RESET'' for 5 seconds to restore the factory settings
11 In MODBUS RTU command mode, up to 247 devices can be used in parallel
12 size: 45*16.5*6.2mm
13 Weight: 4 grams
For Modbus rtu command details, see ''WG18A02 Modbus RTU Commands''
For software usage, please refer to ''WG18A02TestTool Instructions for Use''

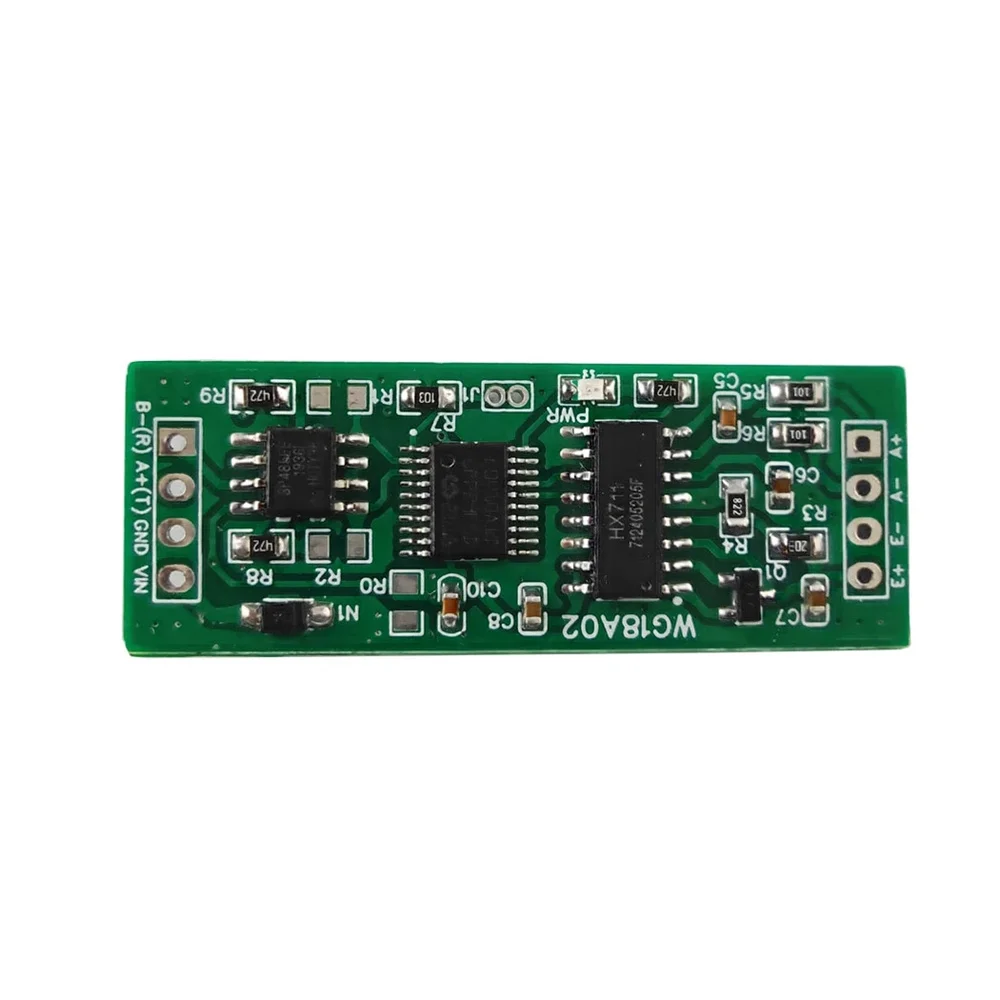

Pin description:
VIN : Working Power+
GND : Working power-
A+(T): RS485 A+/TTL232 TXD
B-(R) : RS485 B-/TTL232 RXD
E+ : Sensor Power+
E- : Sensor Power-
A- : Sensor signal output-
A+ : Sensor signal output+
