Description

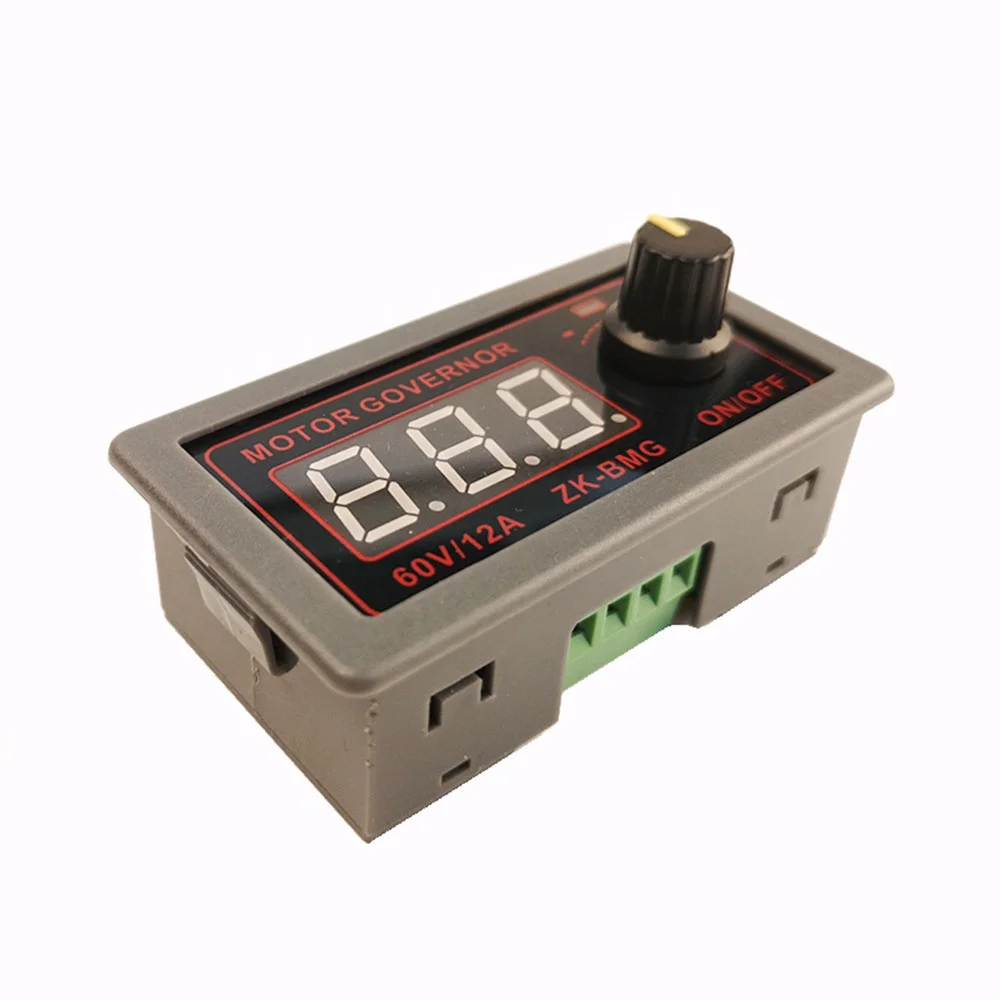

DC 5V 12V 24V 60V 500W Motor Speed Regulator with Stepless Variable Rotary Switch PWM Signal Generator Speed Governor
* [High Grade Material] This PWM Motor Speed Controller is made of premium quality circuit board material, which has a good durability and wear-resistance to ensure a long term service.
* [Soft-Start Protection] The motor controller has a soft-start protection function that can effectively reduce the inrush
current, protect the motor and prolong the life of the motor.
* [Digital Encoder Button] The digital encoder knob can adjust the motor speed, which is more accurate and consistent to control the engine speed than ordinary potentiometers.
* [Features] LCD HD display. Can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. Comes with start and stop button and can be controlled by external switch, to meet your control requirements.
* [Wide Input Voltage Range] This PWM DC Motor Speed Controller supports a widely input voltage from DC 9V-60V, and it fits to 12V 24V 36V 48V power supply, at the same time the output current is 12A, power 500w, which ensures a widely application. You can use this Adjustable Motor Controller in different occasions upon different purposes.
* [Soft-Start Protection] The motor controller has a soft-start protection function that can effectively reduce the inrush
current, protect the motor and prolong the life of the motor.
* [Digital Encoder Button] The digital encoder knob can adjust the motor speed, which is more accurate and consistent to control the engine speed than ordinary potentiometers.
* [Features] LCD HD display. Can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. Comes with start and stop button and can be controlled by external switch, to meet your control requirements.
* [Wide Input Voltage Range] This PWM DC Motor Speed Controller supports a widely input voltage from DC 9V-60V, and it fits to 12V 24V 36V 48V power supply, at the same time the output current is 12A, power 500w, which ensures a widely application. You can use this Adjustable Motor Controller in different occasions upon different purposes.
Specification
|
Working voltage
|
DC9V-60V
|
|
Rated current
|
12A
|
|
Peak current
|
20A
|
|
Power
|
500W (max)
|
|
Working frequency
|
1KHz-99KHz
|
|
Frequency Accuracy
|
1%
|
|
Frequency Resolution
|
1KHz
|
|
Working cycle
|
0%-100%
|
|
Working cycle resolution
|
1%
|
|
Size
|
79*43*26mm
|
|
Working Temperature
|
-40~85c
|
|
Working humidity
|
0%-95%RH
|
Operation of digital encoder knob:
1. In the default interface: (the duty cycle is displayed by default) Short press: switch motor start and stop Long press 10s: to enter the setting interface Counterclockwise rotation: the duty ratio decreases Clockwise rotation: increased duty cycle 2. Under the setting screen: Short press: select setting parameters and switch between ON-OFF, duty cycle lower limit, duty cycle upper limit and working frequency. ON-OFF is to set the module to be normally open or closed by default. Rotate the encoder to switch to the default on-off state. The display form of duty cycle lower limit is "L" + two digits, the display form of duty cycle upper limit is "H" + two digits or "100", and the display form of working frequency is "F" + two digits. Long press 2s: exit the setting interface Counterclockwise rotation: the corresponding Settings are reduced Clockwise rotation: the setting parameters increase accordingly
Application
Drive motor
Brightness control
Speed control
Generator
Brightness control
Speed control
Generator
