Description
Product Description

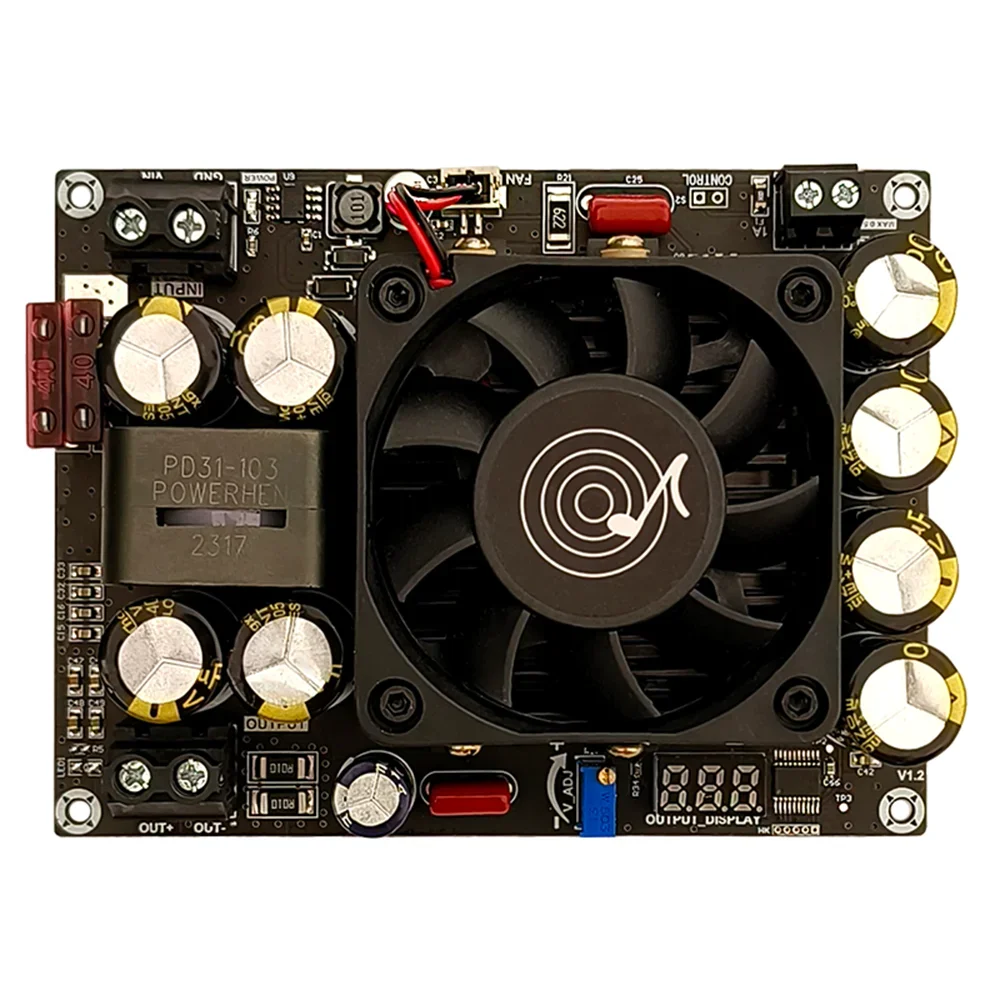

DC 500W Step-up Boost Converter Constant Current Power Supply Driver 12V-24V to 24V-50V Voltage Charger Step Up Module
Features: 1.Supports DC11-27V wide voltage input, supports both in car and battery. 2.Easy to use, output voltage Vin~50V, continuously adjustable. 3.Equipped with a voltmeter display, thickened heat sink, temperature controlled air cooling, and sustainable operation. 4.Special inductance for digital power amplifier, special magnetic shielding structure, reducing noise and resisting electromagnetic interference; Ultra large rated current, low magnetic loss, low DC resistance, low noise, and usable audio power amplifier. 5.Eight 1000UF capacitors with sufficient capacity, paired with low ESR filter capacitors, provide stable performance.
Parameters: Power supply voltage: DC11-27V, unstable output voltage above 27V Output voltage: Vin~50V Output power: 500W Working current: 67mA @ (Vin=12V, Vout=36V) 80mA @ (Vin=12v, Vout=48V) 42mA @ (Vin=20V, Vout=36V) 50mA @ (Vin=20V, Vout=48V) Conversion efficiency: 92% -95% Temperature controlled fan rotation conditions: Just after powering on, it will automatically run a 2-second self check and then stop. During operation, if the board temperature reaches 36 ℃ or above, the fan will rotate, otherwise the fan will stop. Module size: 122x92x39mm
