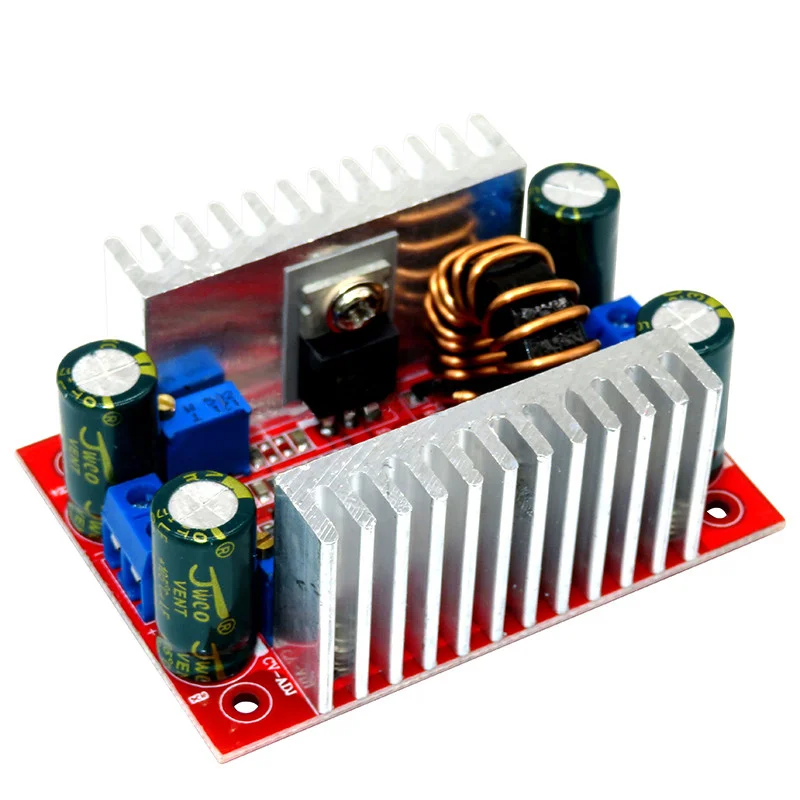

DC 400W 15A Step-up Boost Converter Constant Current Power Supply LED Driver 8.5-50V to 10-60V Voltage Charger Step Up Module
PARAMETERS
1 . module name : 400W boost constant current module
2. module nature : non isolated boost module ( boost )
3 . Input voltage : dc8 . 5v-50v 4 . Input current : 15A ( max ) over 8a , please strengthen heat dissipation 5.Static working current : 10MA ( when 12V rises to 20v , the higher the output voltageis , the higher the static current will be) 6.Output voltage : 10-60v continuously adjustable 7.Output current : if 12a Max exceeds 7a , please strengthen heat dissipation ( it is relatedto input and output voltage difference , the larger the voltage difference , the smaller theoutput current ) 8 .Constant current range : 0. 2-12a
9 . Output power :=input voltage * 10a 10 . For example : Input 12V * 5A= 60W , input 24V * 5A=120w Input 36V*5A= 180W , input 48V * 5A=240W
11. Working temperature : -40～＋85℃ ( please strengthen heat dissipation when the ambient temperature is too high) 12 . Working frequency : 150KHz 13.Conversion efficiency : up to 96 % ( efficiency is related to input and output voltage , current and voltage difference ) 14. Over current protection : Yes ( if the input exceeds 15a , the output voltage will be automatically reduced , and there is a certain range of error .) 15 . Input reverse connection protection : none ( if more reverse connection current is neede . please connect diode in series with input ) 16 . Installation method : four 2 . 5mm screw holes
17 . Wiring mode : wiring output 18 . Module size : length 67mm * width 48mm * height 28mm
19. Module weight : 60g
|
module name
|
400w boost constant current module
|
||||||
|
module nature
|
non islolated boost module (boost)
|
||||||
|
input voltage
|
DC 8.5V-50V
|
||||||
|
input current
|
15A(max) over 8a,please strengthen heat dissipation
|
||||||
|
Installation method
|
four 2 . 5mm screw holes
|
||||||
|
Wiring mode
|
wiring output
|
||||||
|
Module size
|
length 67mm * width 48mm * height 28mm
|
||||||
|
Module weight
|
60g
|
||||||
Products Description
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
