DC 15V 18V 19.5V 20V 24V to 12V 9V 6V 5V DC DC Converter Step-Down Buck Board 78MXX 05 06 09 12 LDO regulators Module

$0.96
Specification : Output 6V no Pin
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description
Product Description

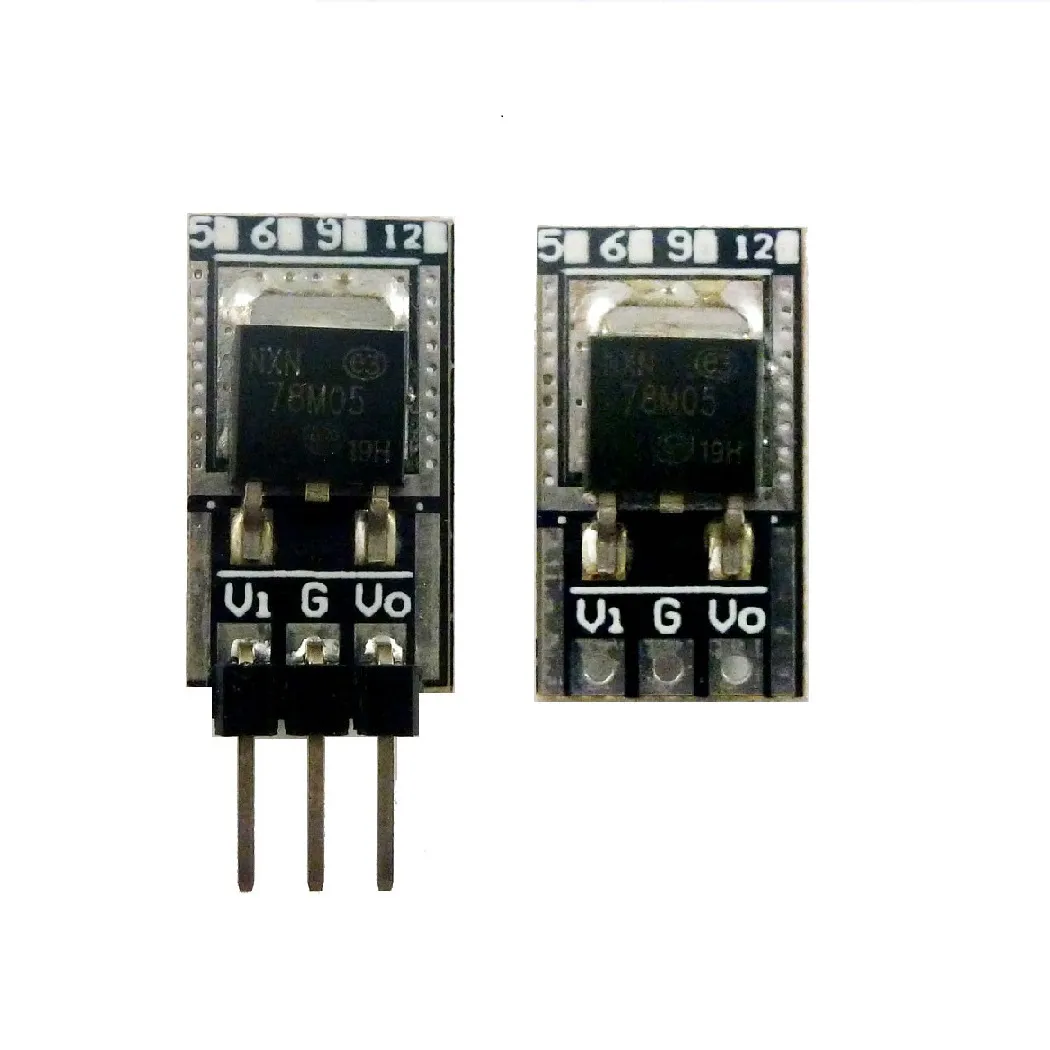

78MXX 05 06 09 12 LDO regulators Module DC 15V 18V 19.5V 20V 24V to 12V 9V 6V 5V DC DC Converter Step-Down Buck Board





Description:

5V :
Input voltage: DC 7-25V ,Output voltage: DC 5V

Output current : 5- 200mA
Short Circuit Current : 300mA
6V :
Input voltage: DC 8-25V ,Output voltage: DC 6V

Output current : 5- 200mA
Short Circuit Current : 270mA

9V :
Input voltage: DC 11.5-25V ,Output voltage: DC 9V

Output current : 5- 200mA
Short Circuit Current : 250mA

12V :
Input voltage: DC 14.5-30V ,Output voltage: DC 12V

Output current : 5- 200mA
Short Circuit Current : 240mA

Highly Accurate:±2%
Quiescent Current : 6mA
Thermal overload protection
Short circuit protection
Output transition SOA protection
± 2 % output voltage tolerance
Guaranteed in extended temperature range
Operating Temperature: -40℃ ~ +125℃

Size : 18 x 10.5 x 5mm
Weight : with pin 1.1g,no pin 0.9g

Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



Applications:

Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Relay PLC
Model aircraft
LED Lighting
raspberry pi Arduino UNO MEGA2560
electronic diy kit
STM32 FPGA/CPLD PIC AVR Board
electronic diy kit
Wifi Module,ESP8266
Bluetooth Module,HC-05,HC-06,SPP-C
