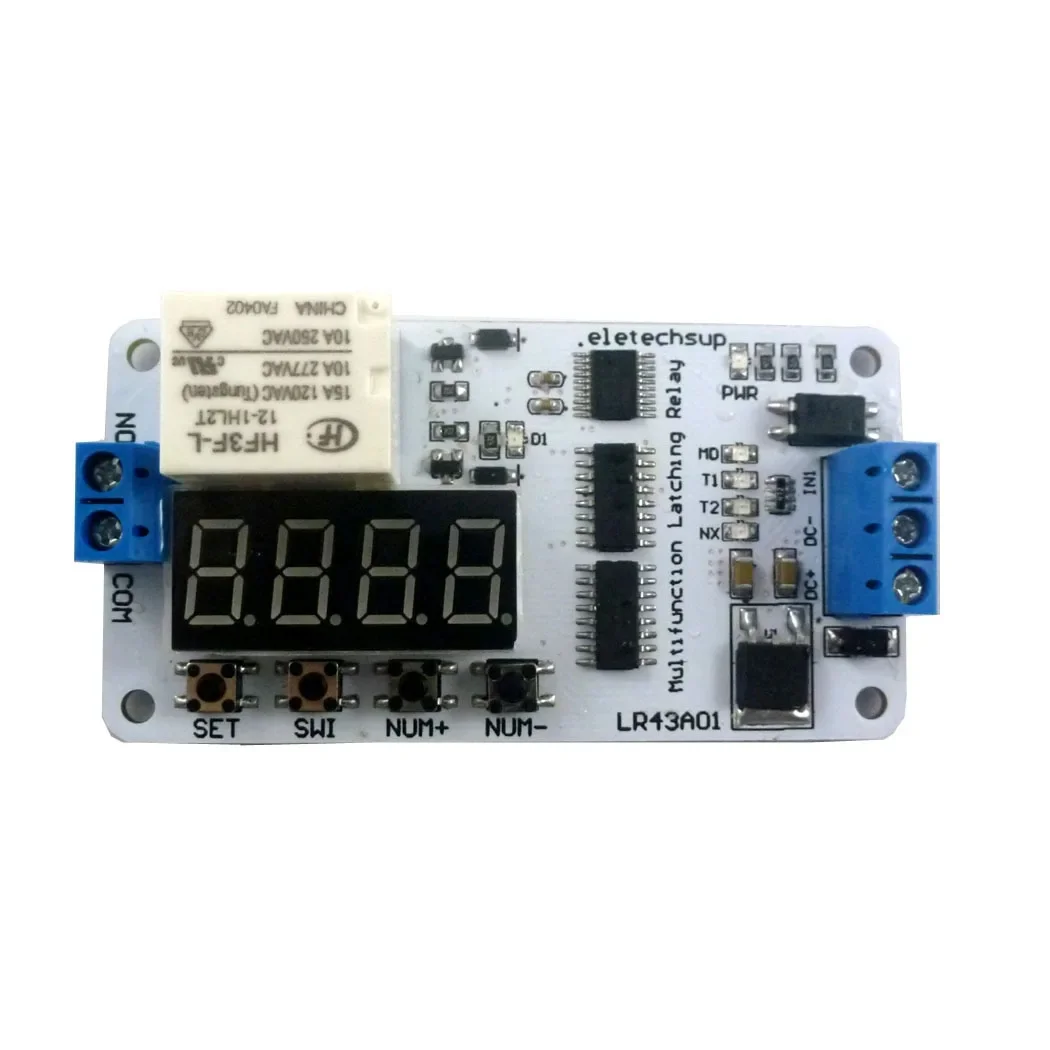

Specifications:
Working voltage: DC 12V(10-15V)
Working current: 7-8MA(Digital Tube is OFF)
Working current: 28-30MA(Digital Tube is ON)
Relay switching current: 45MA (only lasts 0.3 seconds)
Load current: AC 250V/10A, DC 30V/10A
0.1 seconds -270 hours between adjustable
18 functions can be selected(Function compatible with CE030 FRM01 Relay Module)
D1 LED: Relay status indication: ON relay is on, OFF relay is off
PWR LED: Input indicator,It will flash when power on or trigger.
Size: 76x40x20mm
Weight: 28g
Energy saving is relative to ordinary relay modules.
In the working state, click the SET button to close the digital display, and click again to open the digital tube display.
Press and hold the NUM+ button for 4-5 seconds. After 10 seconds, enter the energy-saving mode. Press and hold the NUM+ button again for 4-5 seconds to exit the energy-saving mode (this function can only be set when the digital tube is lit).
Typical applications:
Automotive electronics
Industrial automation and control
Industrial equipment
Motor LED PLC
IP Camera PTZ CCTV
UPS Uninterruptible power supply
Smart Home
Emergency lighting
MCU development board
Toy car
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC Motor
Fluorescent lamp
Automotive electronics
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1-3cm differences due to manual measurement.
Package Includes:
1x Relay
