D100 Fingerprint Control Board Modified Fingerprint Identification Module MODBUS Access Control Relay Switch
Product Description
We have following style can choose, pls leave us a note which one do you want.

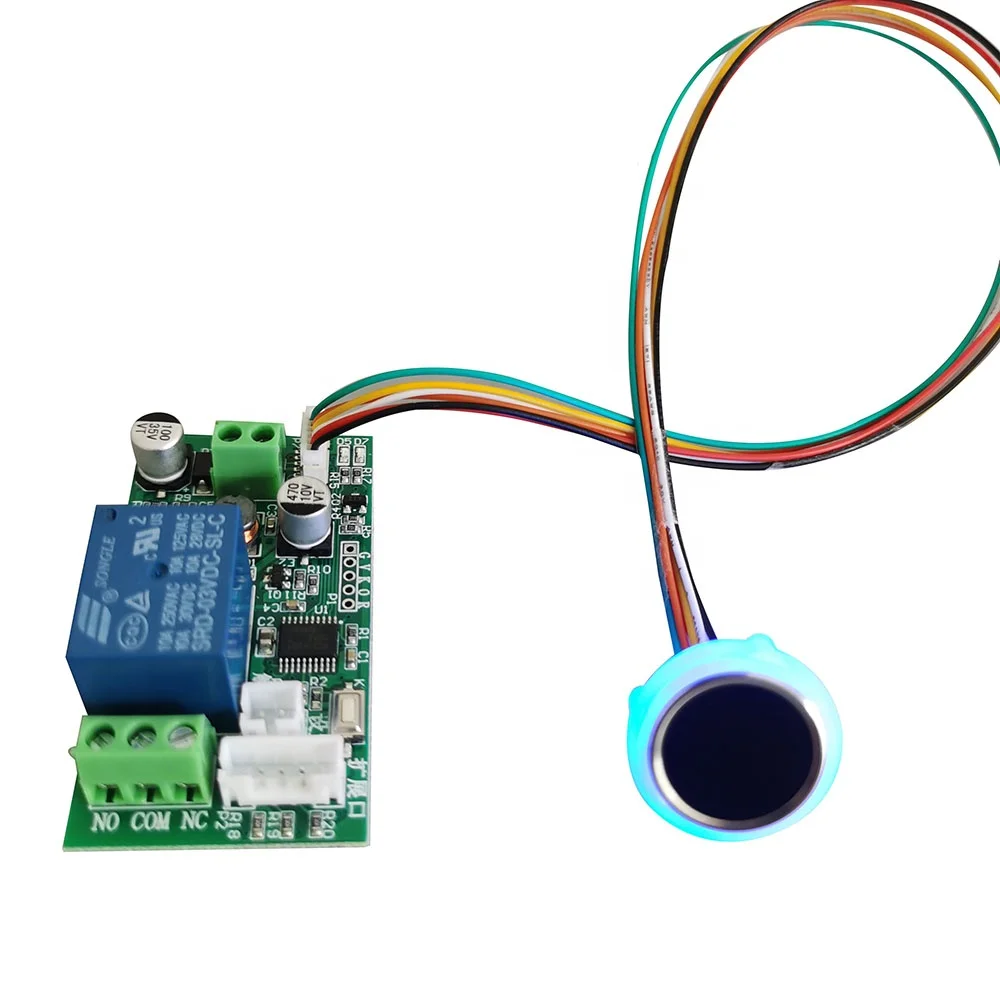

Control board + ABS circular fingerprint Control board + ABS round fingerprint + shell Control board + square fingerprint Control board + square fingerprint + shell Control board + square fingerprint + fingerprint shell + shell Control board + waterproof metal fingerprint Control board + waterproof metal fingerprint + shell Control board + waterproof metal fingerprint + shell + 12V lock Control board + waterproof metal fingerprint + shell + cover Fingerprint control board
The ABS circular fingerprint head has an opening of 19mm, and the installation needs to be fixed with fixing glue, which is relatively troublesome. It is best to buy a square fingerprint head with a fingerprint shell, which is easy to install, and it is not easy to install without a fingerprint shell. The square fingerprint headband is embedded in the fingerprint shell with a 42mm hole. The metal head fingerprint hole is 25mm, and the installation is directly fixed with a nut, which is very convenient for installation. This fingerprint has the ability of self-learning fingerprint features. After each successful verification, the pattern at the time will be remembered and saved, and the fingerprint will be more and more useful.
Specification
|
Description of the basic functions of the control panel
|
value
|
|
|
1
|
Control board wide voltage input, DC7V-DC30V are compatible (+ is positive,-is negative); The length, width and height of the bare control board is 56*30*19mm. The length, width and height of the matching control panel box are 60*40*25mm respectively.
|
|
|
2
|
Suitable for DIY users to modify, used in access control, automobile control, electrical control, industrial control and other occasions.
|
|
|
3
|
You can freely choose the relay self-locking mode, jog mode, and ignition mode.
|
|
|
4
|
In jog mode, the time of relay control can be adjusted freely.
|
|
|
5
|
The recorded fingerprint information and the set jog time, relay mode, etc. will not be lost after power off.
|
|
|
6
|
You can delete all fingerprints, you can also delete all ordinary user fingerprints, or you can delete designated individual ordinary user fingerprints. You can also restore the fingerprint factory settings with one key.
|
|
|
7
|
One-key unlocking function, an external mechanical button can realize one-key unlocking through the button (suitable for opening the door inside the access control door)
|
|
|
8
|
Reserve an expansion port, which can communicate with the host computer device MODBUS RTU serial port through an external 485 board or a USB board, display the fingerprint unlock record, delete the specified fingerprint number, register the fingerprint, copy the fingerprint characteristics with one click, etc., or you can Customize other functions according to customer requirements. If the general user doesn't use this expansion port, you don't need to worry about it.
|
|
Installation Instructions
Detailed description
Press the button to restore factory settings: When the circuit board is powered on, keep pressing the "settings button" on the circuit board for more than 10 seconds, you can see that the red indicator light on the circuit board lights up and the fingerprint module starts to light up in white, then release the "settings button", fingerprint If the green light is always on for 1 second, it means the deletion is successful; if the fingerprint is always on for 1 second, it means the deletion has failed. After restoring the factory state, the system will clear all fingerprint libraries. At this time, the system is in demonstration mode, and any fingerprint can control the relay to open. Recording the fingerprint of the administrator for the first time: When the system is in the factory state, press any finger on the fingerprint window and hold it for about 5 seconds without letting go. The yellow light of the fingerprint will light up. After the finger is removed, the yellow light will flash, and the operation of adding the administrator fingerprint will be entered. Start pressing the finger, the light blue light will turn on when the finger is pressed, and the yellow light will flash when the finger is lifted. Press the finger 4 to 6 times continuously, the green light will be on for about 3 seconds, and the new fingerprint will be entered successfully; Enter more administrator fingerprints: You must use the administrator's fingerprint to press for more than 5 seconds and not release it until the yellow light turns on. After removing the finger, the yellow light flashes and enters the operation of adding fingerprint management. The entry process is the same as above. Enter the fingerprints of ordinary users: You must use the management fingerprint to press for more than 10 seconds without releasing it. The yellow light turns on in turn, and the pink light turns on and then removes your finger. The pink light starts to flash, and enters the operation of adding ordinary user fingerprints. The entry process is the same as above. Mode selection: [factory default is jog output mode] When the circuit board is powered on, after pressing the "set button" on the circuit board, the blue indicator light on the circuit board will flash, and the number of flashes represents different relay output modes. After pressing the button again, the number of flashes will cycle from 1 to 2 to 3. The blue light flashes once: it represents the relay self-locking output. The blue light flashes twice: represents the relay jog output. The blue light flashes for three seconds: it represents the relay ignition output. (Suitable for car and motorcycle ignition) Relay jog time adjustment: [factory default jog time is 1 second] Press and hold the "set button" on the circuit board first, then turn on the circuit board input power, wait for the red and blue indicator lights on the circuit board to go out, then release the "set button". Then press the "set button" again, you can see the red indicator light starts to flash, and the number of flashes represents the corresponding timing time. After pressing the "Settings button" again, the number of flashes increases. At this time, press the fingerprint with your finger. After the verification is successful, the jog time will be automatically saved, and it will not be lost after the power is off. 1 flashing represents the timing of 300 milliseconds; 2 flashes for 600 milliseconds; 3 flashes for 1 second; 4 flashes for 2 seconds; 5 flashes for 3 seconds; 6 flashes for 4 seconds; flashes 7 Time represents 5 seconds of timing; 8 blinks represents 10 seconds of timing; 9 blinks represents 60 seconds of timing; 10 blinks represents 15 minutes of timing; Relay normally open and normally closed: The relay output has normally open and normally closed, users can choose these two modes according to different use occasions. NO stands for normally open contact, NC stands for normally closed contact, and COM stands for common contact. (Under normal circumstances, only NO and COM are used, but NC is generally not used) Note: The relay supports a maximum load of 2KW. The relay is a contact output, a switch signal, and no voltage output. The relay output contact can be regarded as a mechanical switch. This switch can be connected to an external voltage of 5V or an external voltage of AC220V.
How to record the fingerprint of the administrator?
After the administrator's fingerprint verification is successful, press and hold the fingerprint sensor for more than 5 seconds. When the yellow light of the fingerprint sensor is on, let go. After pressing it four times, the green light of the fingerprint sensor is on, indicating that the fingerprint is successfully entered. PS: If it is the first time to record a fingerprint, the control panel needs to be in the factory reset state (the factory default is to restore the factory state), press and hold for 5 seconds with any finger, and let go after seeing the yellow light of the fingerprint collector light up , You can enter the mode of registering administrator fingerprints. After the registration is successful, only the registered fingerprints can be unlocked successfully.
Note
1. The default length of the fingerprint head line is 300mm, and it can also be equipped with any other length. If you need a longer line, you need to contact customer service to make up the difference. 2, The full range of fingerprint modules comes with colorful lights. The fingerprint module comes standard with a capacity of 50 fingerprints, and it can also be expanded to a capacity of 500. 3, Note: The default shipping accessories do not send a key to unlock the terminal line, 4. The relay supports a maximum current load of 10A, and cannot be overloaded.
