Description

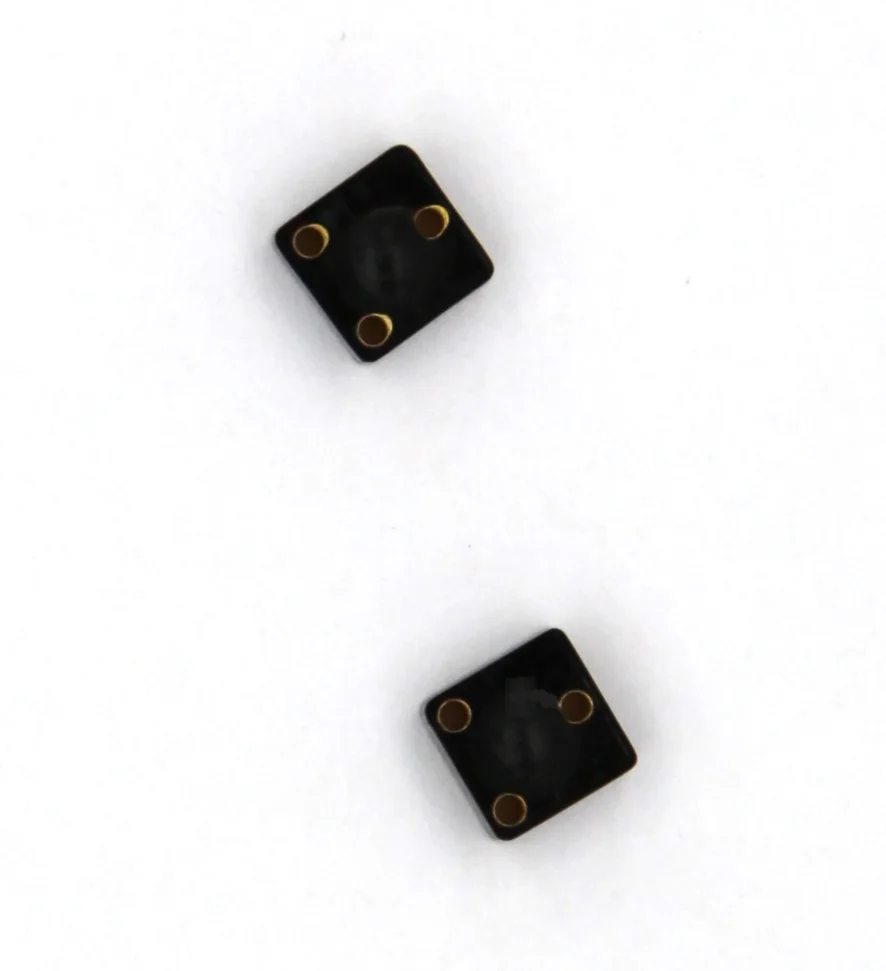

Product Description
Size
6×6×3mm
Color
Regular black, colors optional
Material
FR4
Weight
0.3g
Installation
Adhesive installation: 3M imported thin glue or thick glue, customized according to customer needs Liquid glue installation: Industrial AB glue is adopted Embedded installation: embedded metal groove
Chip
Alien H3
Frequency
902-928mhz；866-868mhz
Protocol
ISO 18000-6C，EPC global C1Gen2
Chip capacity
EPC district：96bits（Can be extended to 480bits） USER district：512bits TID district：64bits
Data storage
10years or 100 thousand times
RF parameters
Reading distance：1m（Stick to a metal surface，4W EIRP reader） Reading distance：0.6m（R2000 POS，30dbm） (The effect is related to the actual application environment and testing equipment)
Working temperature
-20℃~100℃
Storage temperature
-40℃~140℃
Dustproof and waterproof grade
IP68
Application
Tool management such as micro equipment management, small equipment and asset management
Personalized customization
Pre-write code, laser code, LOGO printing, color customization, etc
Conformance testing
100% Pass Voyantic test (figure below)
Product Recommendation
Production Process
Exhibition
Packing&Transportation
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: Within 15 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
