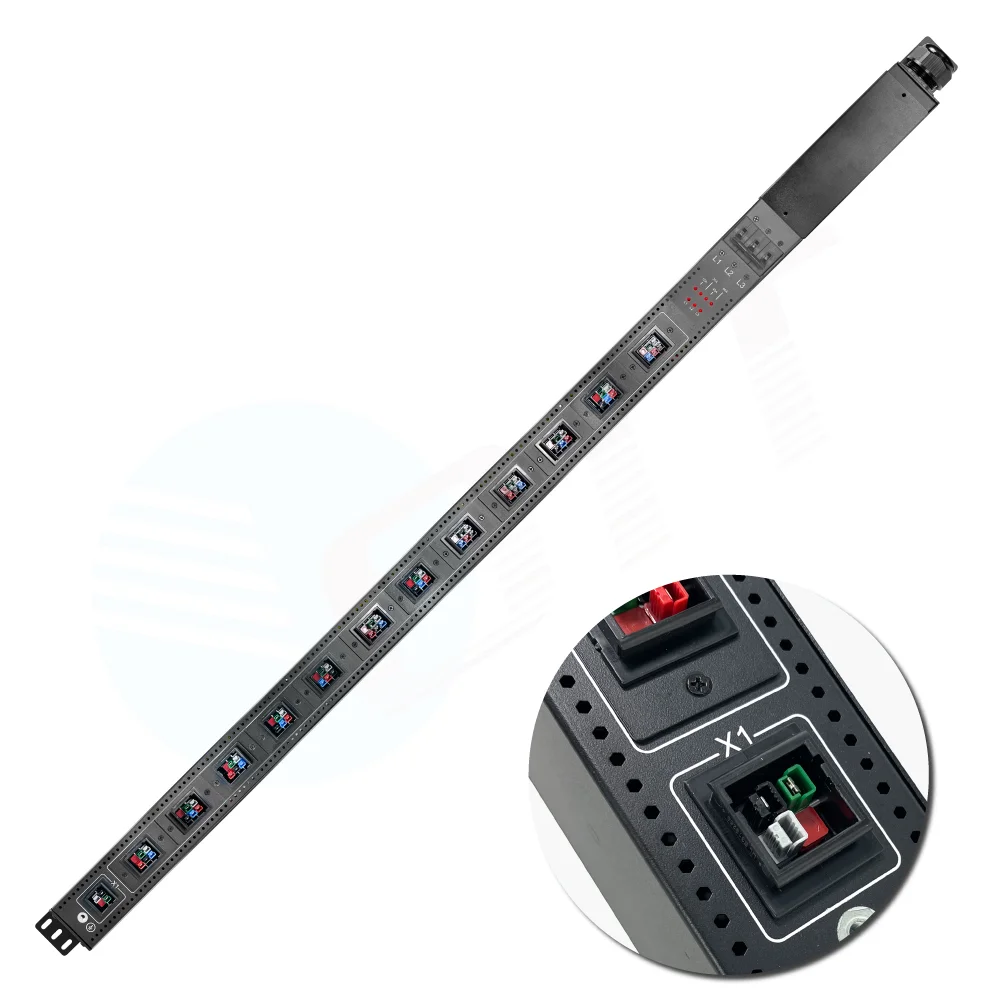

Customized PA34 PA33 PA45 PDU Socket for S21 T21 3 Phase High Power Smart Rack Power Distribution Unit

$340.00
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description
Our PDUs are professionally certified, competitive and factory-tested products

(1) Silk screen printing is neat, clear, no raw edge (2) Automatically realize three-phase balance after power-on (2) A single outlet can be independently disassembled for maintenance (3) The whole pdu has a heat dissipation hole and is equipped with a heat dissipation fan to solve the problem of excessive ambient temperature in hot summer (4) The circuit breaker is equipped with a hardware bracket, which is not easy to loosen for a long time and will not sink (5) The junction box is easy to connect. The logo is clear and easy to understand. (6) A dust-proof cover can be used to cover the unused PDU ports (6) Internal wiring with digital identification, fine workmanship details (7) The surface treatment passes the hundred-cell test, and the paint will not fall off
Specification
Place of Origin
China Guangdong
Brand Name
OIT
Model Number
OIT-36PA34-04C13-3P-200A
Power
Max 57KW
Voltage
208-250V
Total Current
Max 80A
Socket Standard
24PCS C19
Input Connector
80Ax5wires(or junction box,input breaker optional,price difference,)
Frequency
50/60Hz
Total Output Power
Max 57KW
Breaker
3pcs 1P 80A circuit breaker. Each breaker control 8 outlets.
Dimension
LxWxH=1660*85*85mm
Net weight
15KG
Wire specification
UL certification , with flame retardant function
Certificate
ETL CE RoHS
Max Output Power for Each Outlet
Under 208V, Max 1872W per Outlet
Under 220V, Max 1980W per Outlet
Under 240V, Max 2160W per Outlet
Under 250V, Max 2250W per Outlet
Input Voltage
Output Voltage
380V~/3 phase(LLLNG)
415V~/3 phase(LLLNG)
433V~/3 phase(LLLNG)
208V~/3 phase(LLLG)
480V~/3 phase(LLLNG)
220V~ WYE
240V~ WYE
250V~ WYE
208V~ Delta(option)
277V~ WYE
Packing & Delivery
PE bag, Carton Box for PDU.
