It is a high performance near field RFID antenna. It can be widely applied in many applications. It has features like evenly field, few blind side, big size and ultra-thin. It can be used in applications like jewelry, retails, library, pharmacy and smart documents tracking cabinet, counter inventory, worker station in assembly line.
1/3
${data.index + 1}/${data.total}
Description
Specification

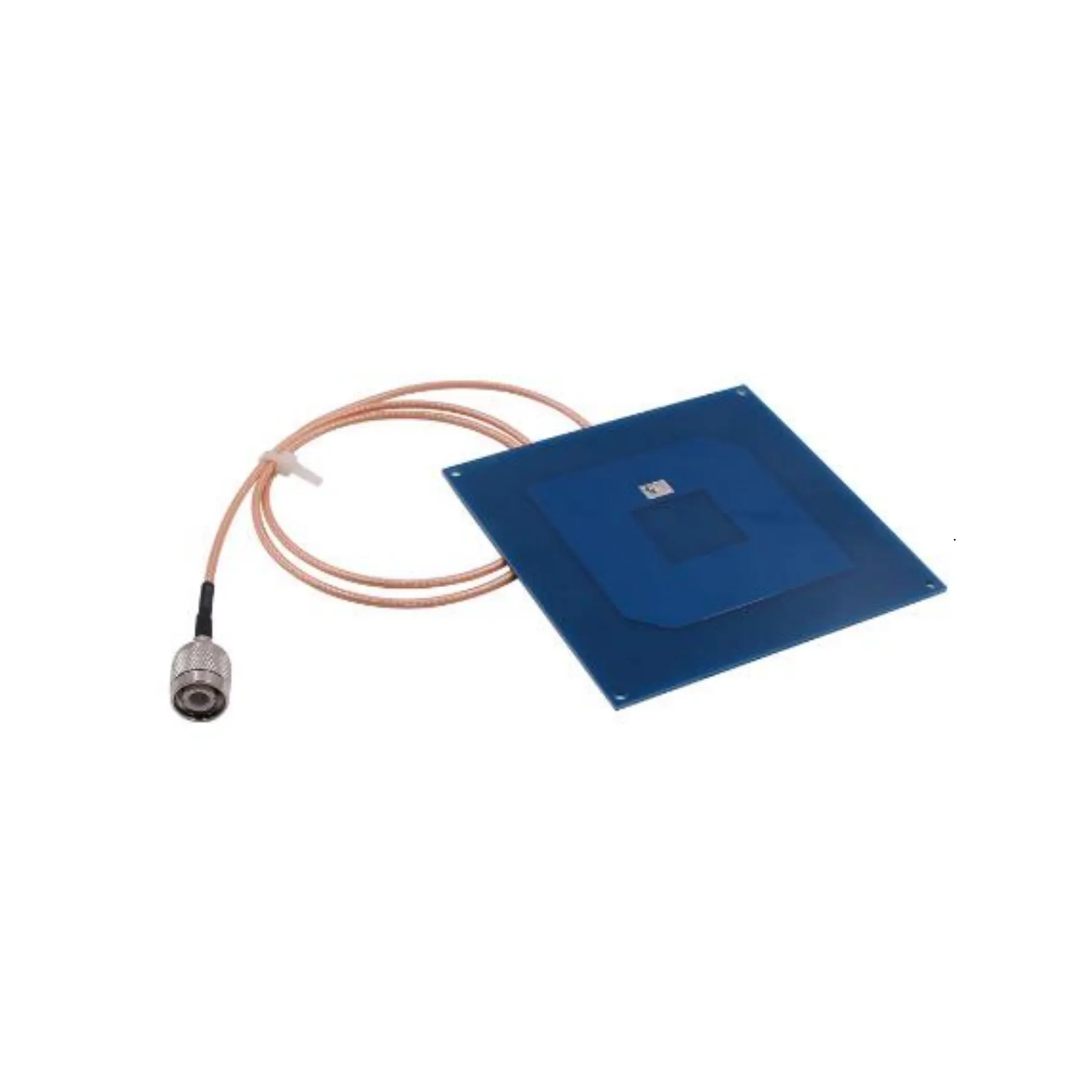

Customized FR4 Ultra-thin Near-field Circular Polarization RFID Antenna
OVERVIEW
Key Features
* Beautiful appearance, good environmental adaptability; * Easy to install; * Accurate and high speed reading with high data security.
| Customized FR4 Ultra-thin Near-field Circular Polarization RFID Antenna | ||
| Electrical Specifications | ||
| Frequency Range | 865~868MHz and 902-928MHz | |
| Gain | 2-3dBi | |
| Horizontal Beam Width | Hor:58°±5° Vert: 58°±5° | |
| F/B Ratio | >18 | |
| VSWR | <1.3 | |
| Impedance | 50 Ω | |
| Polarization | Circular/Linear polarization | |
| 10Max. Power | 100W | |
| Connector | TNC/Custom | |
| Lightning Protection | DC ground | |
| Mechanical Specifications | ||
| Dimension | 100*100*7mm | |
| Weight | 0.2Kg | |
| Reflector Material | RF4 | |
| Radome Material | PCB | |
| Operating Temperature | -40~80°C | |
Product Picture
SDK and Certificates
SDK and Certification
We provide SDK for different OS platform(Windows, Linux, Android, Raspberry Pi) and development language(C, C#, C++, Java, Python...).
Many of our RFID readers already have certificates of CE(EU) and FCC(USA), and some of them get FCC(Korea) and Saber( Saudi Arabia), we can help our client to get the certificate as needed locally.
