Product Overview
ODM 10 inch NFC Windows Tablet PC for POS System
10 inch NFC Windows Tablet: L1040BI
The 10 inch L1040BI Windows NFC Tablet is a high-performance smart tablet designed specifically for mobile payment scenarios. It features an advanced front built-in NFC function for fast and secure payment operations, along with powerful hardware and a range of features to meet your payment needs in various commercial environments.
Core Features

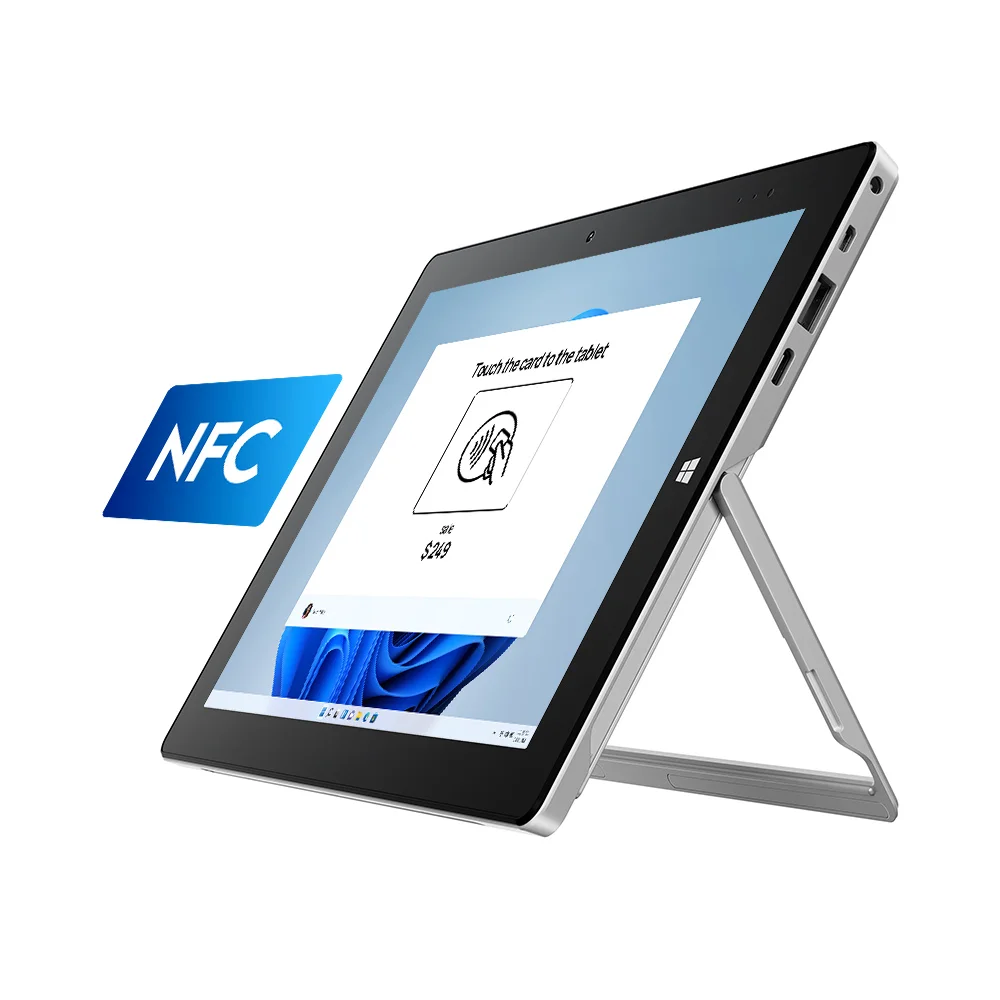

1. Front NFC: Built-in NXP P300 NFC for fast, secure contactless payments.
2. Windows 11 OS: Seamless app compatibility with an intuitive, user-friendly interface.
3. High-Performance Specs: Powered by Intel Alder Lake N100 CPU, 8GB RAM, 256GB SSD for smooth performance.
4. Versatile Connectivity: Includes USB-A, USB-C, MicroSD, 3.5mm audio, Micro HDMI, and 4G support for flexible usage.
5. Vivid Display: 10.1" IPS screen, 1920x1200 resolution, and MPP stylus compatibility for a stunning visual experience.
6. Long Battery Life: Equipped with a 7.6V 3000mAh battery for extended use.
7. Portable & Durable: Sturdy metal build, compact size, with an optional desktop stand for added convenience.
8. Stylus Support: Boost productivity with precise writing and drawing features.
Product Details
10 inch NFC Windows Tablet Details
|
10 inch NFC Windows Tablet Specification
|
||
|
Model
|
L1040BI
|
|
|
Chipset&Platform
|
||
|
CPU
|
Intel Alder lake N100 3.40 GHz
|
|
|
RAM
|
8GB LPDDR5
|
|
|
ROM
|
256GB M.2 SSD
|
|
|
OS
|
WINDOWS 11
|
|
|
Display
|
||
|
Screen
|
10.1inch TFT LCD IPS
|
|
|
Resolution
|
1920*1200
|
|
|
Touch Panel
|
G+F COF IC锛欸T7382H
With Windows virtual keys
Supports MPP stylus pens |
|
|
Wireless
|
||
|
WiFi
|
IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz
|
|
|
Bluetooth
|
Bluetooth 5.0
|
|
|
Cellular
|
4G
|
|
|
NFC
|
NXP P300, suport FelicaFront Facing NFC
|
|
|
Camera&Speaker&Mic
|
||
|
Front
|
2MP
|
|
|
Rear
|
5MP
|
|
|
Speaker
|
Box speakers 8Ω/0.8W*2
|
|
|
Mic
|
Built-in*1
|
|
|
I/O ports
|
||
|
DC in
|
1*12V2A(3.5mm)
|
|
|
USB
|
1*USB-A(data);1*USB-C(data&OTG&DP)
|
|
|
SD card
|
1*MicroSD
|
|
|
SIM card
|
1*Micro SIM
|
|
|
Audio Jack
|
1*3.5mm
|
|
|
HDMI
|
1*Micro HDMI
|
|
|
Buttons
|
Optional
|
|
|
Power supply
|
||
|
Battery
|
7.6V 3000mAh
|
|
|
DC in
|
12V2A
|
|
|
AC Adaptor
|
Input:100-240V,50-60Hz.Output:12V/2A,DC3.5mm
|
|
|
Functions
|
||
|
Accelerometer(G-sensor)
|
YES
|
|
|
Light sensor
|
Optional
|
|
|
Proximity sensor
|
Optional
|
|
|
Mechanical
|
||
|
Dimensions
|
256.3 x 170.8 x 9.35mm
|
|
|
Weight
|
TBD
|
|
|
Mount
|
Surface
|
|
|
Housing materials
|
Metal
|
|
|
Environment
|
||
|
Operationg temperature
|
-10 to 60
|
|
|
Storage temperature
|
-20 to 70
|
|
|
Certifications
|
||
|
Optional
|
CE,FCC,RoHS,KC...(Optional)
|
|
10 inch NFC Windows Tablet Accessories & Packaging
Including in the Packaging
1x Tablet
1x AC/DC Adaptor
1x USB Cable
1x User Manual
1x Warranty Card
