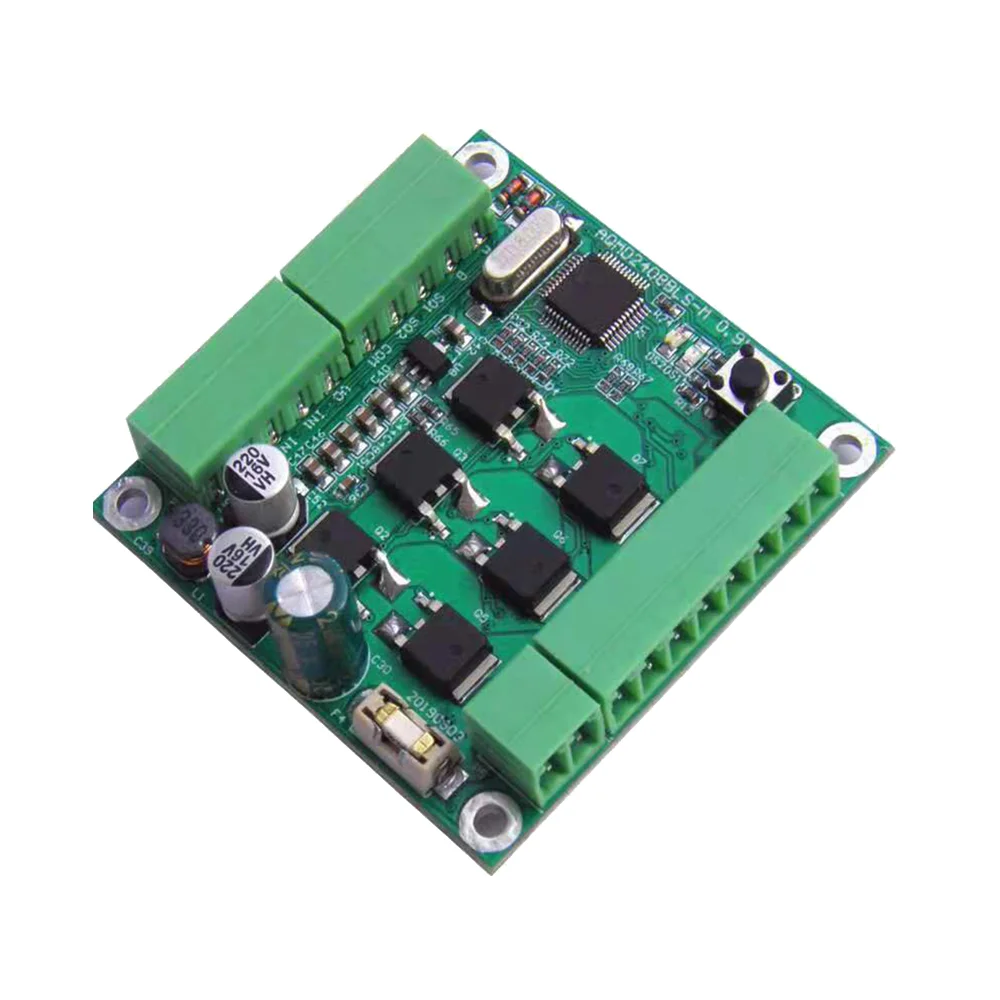

Current/Speed DIP 12V 24V 48V 60V Brushless Drive Board Brushless DC Motor Driver BLDC Motor Driver Controller Module
Product Description
◆ Support voltage 9V～24V or 9V～60V; ◆ Compact size, the rated 3A model is only 4.5x4.5cm, the 24V rated 8A model is only 5.5x5.5cm, and the 60V rated 8A model is only 9.3x5.6x2.1cm; ◆ One-key motor phase sequence adaptation, temperature monitoring, maximum 2 times rated current output, large starting torque ◆Support MODBUS-RTU communication protocol; 485 common mode voltage protection; support the use of 485 to carry out mixed control of duty cycle, steady speed and position of the motor ◆ Support motor overload current limit, stall stop, support drive internal temperature measurement, overheat current limit/protection ◆ Motor current PID adjustment control, the maximum starting/load current and braking current can be configured separately; ◆ Support potentiometer and switch, analog signal and logic level, PWM/frequency/pulse signal, RS485 various input signals ◆ Support duty cycle speed regulation (voltage regulation), speed closed-loop control (steady speed), position closed-loop control (stepping/servo), torque control (current limiting) various speed regulation methods ◆ Support acceleration and deceleration buffer time and acceleration and deceleration acceleration control, which can automatically accelerate and decelerate and accurately position within the specified stroke ◆ Support single potentiometer, dual potentiometer independent, dual potentiometer comparison control forward and reverse speed ◆ Support analog signal voltage range configuration and logic level voltage configuration, analog signal supports 0~3.3V voltage range, logic level can support 0~24V and other voltages; support analog signal linearity adjustment and logic level threshold configuration ◆ Support external PWM, frequency signal for motor speed regulation, support external pulse signal for step control of motor ◆ Support external limit switch limit and stall limit ◆ 18kHz PWM frequency, motor speed regulation without PWM clamor
Specification
|
Voltage
|
9-24V or 9V to 60V
|
|
Current
|
3A/8A optional
|
9-24V 8A
Support control signal potentiometer, 0~3.3V analog quantity, PWM, frequency, pulse, level, switch quantity, 485 communication control Support voltage 9~24V Rated output current 8A Maximum output current 16A (current doubler)/10A (non-current doubler) Braking method Dynamic braking/energy feedback Maximum soft braking current 3A Maximum suitable motor 24V130W 12V~45W Dimensions 5.5x5.5x1.7cm Features Compact size, high current
9-24V 3A
Support control signal potentiometer, 0~3.3V analog quantity, PWM, frequency, pulse, level, switch quantity, 485 communication control Support voltage 9~24V Rated output current 3A Maximum output current 6A (current doubler)/4A (non-current doubler) Braking method Dynamic braking Maximum soft braking current 3A Maximum suitable motor 24V~50W 12V~18W Dimensions 4.5x4.5x1.7cm Features Compact size, high current
9-60V 8A
Support control signal potentiometer, 0~3.3V analog quantity, PWM, frequency, pulse, level, switch quantity, 485 communication control Support voltage 9~60V Rated output current 8A Maximum output current 16A (current doubler)/10A (non-current doubler) Braking method (braking resistance) energy consumption braking Maximum soft braking current 3A Maximum suitable motor 24V~135W 48V~270W Dimensions 9.3x5.6x2.1cm Features Compact size, high current
