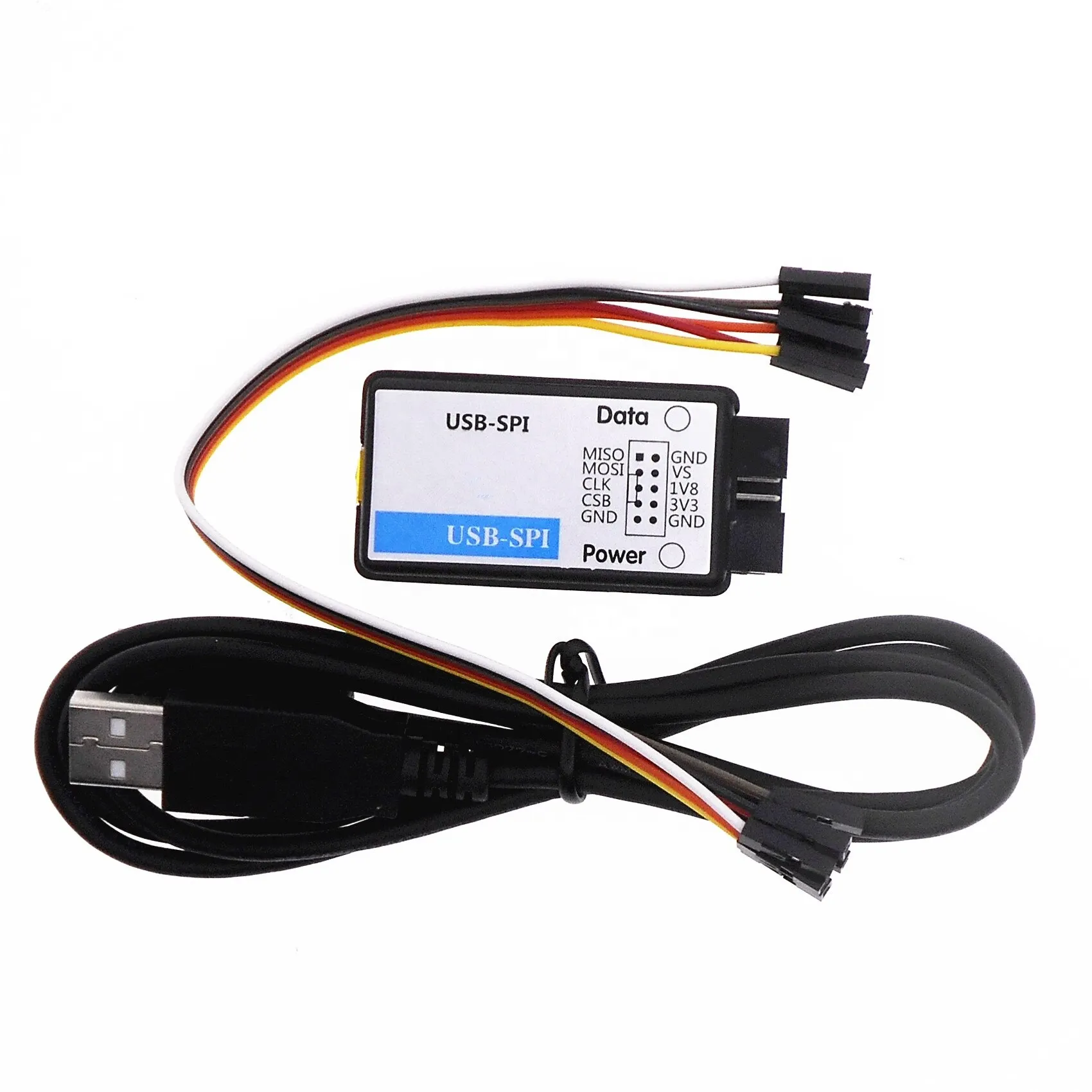

CSR Ble USB to SPI Program Downloader Volt Switching Ble Burner Programmer Development Tool Software CSR SPI Program
Product Description
This product can be achieved using the ble target board burn program, parameter settings, modify, and program online debugging and other functions.
|
Characteristics
|
value
|
|
|
1
|
providing dual 3.3V and 1.8V power output, easy to use!
|
|
|
2
|
Increase SPI level switching capabilities, support for 3.3V and 1.8V!
|
|
|
3
|
Increase the PTC current limit protection, current limiting 500mA, but worry about the wrong connection, short circuit is notafraid!
|
|
|
4
|
The power supply portion cleaner process, tantalum decoupling capacitors, tantalum capacitors built 220UF2!
|
|
Note
For voltage SPI description, we all know CSR86XX series of IO port voltage is 1.8V, so the SPI programming voltage need 1.8V, 3.3V of course also possible to use the work, but if you use a 3.3V SPI level, probably cause damage to five thousandths of a chip for for developers little to do, but for mass production, the problem is very serious!
CSR USB-SPI Features:
1. CSR USB-SPI Debugger is a real USB interface,much faster than the parallel portspeed,a good solution to the user's computer does not have a parallel port troubles.
2. CSR USB-SPI support CSR full range of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can be downloaded by Bluelab debugger supports breakpoints, single-step debugging, etc., by BlueFlash programming procedures.
4. Support all series CSR ble chip, such as
BC2 series (eg BC215159A etc.)
BC3 series (eg BC31A223, BC358239A etc.)
BC4 series (eg BC413159A06, BC417143B, BC419143A etc.)
BC5 series (eg BC57F687, BC57E687, BC57H687C etc.)
BC6 series (e.g. BC6110, BC6130, BC6145, CSR6030,, etc.)
BC7 series (e.g. BC7820, BC7830, etc.)
BC8 series (e.g. CSR8605, CSR8610, CSR8615, CSR8620, CSRA6
etc.)series ( For example CSRA64110, CSRA64210, CSRA64215 CSR10
etc.)series (such as CSR1000, CSR1001, CSR1010, CSR1011,, CSRB5
etc.)series (eg CSRB5341, CSRB5342, CSRB5348 etc.)
5. supports all Windows operating systems:
6. small size, easy to carry, product size: 49 * 28 * 14m
2. CSR USB-SPI support CSR full range of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can be downloaded by Bluelab debugger supports breakpoints, single-step debugging, etc., by BlueFlash programming procedures.
4. Support all series CSR ble chip, such as
BC2 series (eg BC215159A etc.)
BC3 series (eg BC31A223, BC358239A etc.)
BC4 series (eg BC413159A06, BC417143B, BC419143A etc.)
BC5 series (eg BC57F687, BC57E687, BC57H687C etc.)
BC6 series (e.g. BC6110, BC6130, BC6145, CSR6030,, etc.)
BC7 series (e.g. BC7820, BC7830, etc.)
BC8 series (e.g. CSR8605, CSR8610, CSR8615, CSR8620, CSRA6
etc.)series ( For example CSRA64110, CSRA64210, CSRA64215 CSR10
etc.)series (such as CSR1000, CSR1001, CSR1010, CSR1011,, CSRB5
etc.)series (eg CSRB5341, CSRB5342, CSRB5348 etc.)
5. supports all Windows operating systems:
6. small size, easy to carry, product size: 49 * 28 * 14m
Specification
Pin description
1. MISO, CLK, CSB,for the SPI programming interface, SPI interface correspondence with the CSR ble chip is connected, a default level is 1.8V SPI!
2. 3V3,1V8 reserved for the power output, provide current less than 500MA (more than 500MA automatically protected)!
3. VS is the voltage selection SPI port, when the floating VS (internal pull) SPI level is 1.8V, when the VS SPI ground level is
3.3V!
2. 3V3,1V8 reserved for the power output, provide current less than 500MA (more than 500MA automatically protected)!
3. VS is the voltage selection SPI port, when the floating VS (internal pull) SPI level is 1.8V, when the VS SPI ground level is
3.3V!
Packing list
1. CSR USB-SPI tableburner 1
2. The6 Du Bangfei line
3. The high-quality MINI a USB cable(copper wire Shielded, high stability!)
2. The6 Du Bangfei line
3. The high-quality MINI a USB cable(copper wire Shielded, high stability!)
