Precise and Effective Force Sensors & Load Cells
Force Sensors measure static and dynamic tensile and compressive forces - precisely and in virtually any condition. Our Force Sensors are based on the proven Strain gauge measuring principle. From Miniature Force Sensors to Donut Ring Force Transducers and Bending Beams to Load Cells - we offer a large selection of sensors for a wide variety of applications and industries. We are happy to assist you in the selection.
CPR161 miniature force sensor fits into any space and is ideal for compressive force measurement in, for instance, industrial process control or testing and research

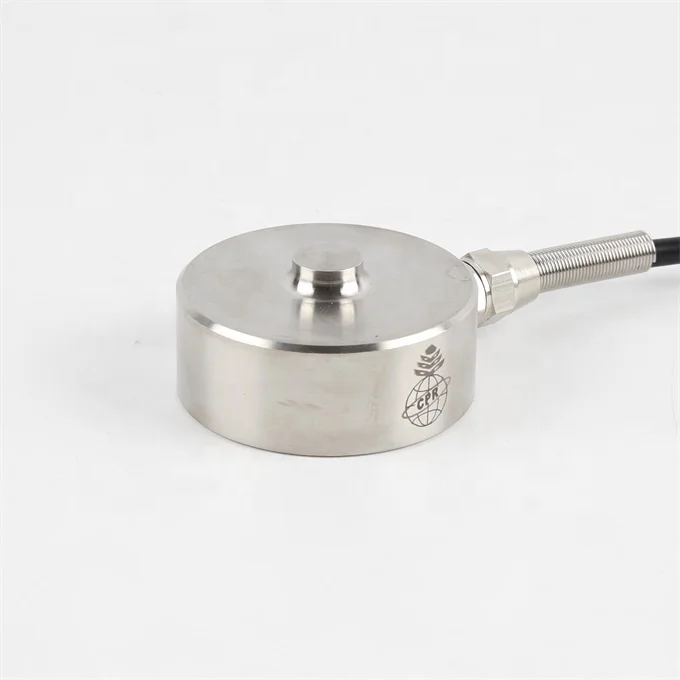

CPR161 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. This Load Button Load Cell model has a very robust construction available in Stainless Steel.
* Compression load cell
* Stainless steel construction
* EMC/FCC/ROHS approved
* High accuracy
* High stability
* Easy to install
* Protected against corrosion by nickel-plated treatment
* Customizable high temperature 0-180℃ type
* Built-in amplifier(0-5V, 0-10V, 4-20mA), RS485, TED optionally
* Suitable for machine measuring and corrosive applicvations.
* Stainless steel construction
* EMC/FCC/ROHS approved
* High accuracy
* High stability
* Easy to install
* Protected against corrosion by nickel-plated treatment
* Customizable high temperature 0-180℃ type
* Built-in amplifier(0-5V, 0-10V, 4-20mA), RS485, TED optionally
* Suitable for machine measuring and corrosive applicvations.
Capacity: 50kg, 100kg, 200kg, 500kg, 1t, 2t, 3t, 5t
Dimensions
Specifications
|
Capacity
|
0~5t
|
Zero balance
|
±0.2mV/V
|
||
|
Rated output
|
2.0 ± 0.5mV/V
|
Temp.effect on zero
|
0.5%R.O./10℃
|
||
|
Non-linearity
|
0.1~0.3%R.O.
|
Temp.effect on output
|
0.5%R.O/10℃
|
||
|
Hysteresis
|
0.1~0.3%R.O.
|
Input impedance
|
350(700)Ω±25Ω
|
||
|
Repeatability
|
0.1~0.3%R.O.
|
Out impedance
|
350(700)Ω±5Ω
|
||
|
Compensated temp range
|
-10℃~100℃
|
Insulation
|
>2000MΩ(50V DC)
|
||
|
temperature
|
(ordinary CPR161 in room temperature) -20℃~120℃
|
Safe overload
|
150% R.C.
|
||
|
Recommended excitation
|
5~10V DC
|
Ultimate overload
|
200% R.C.
|
||
|
Maximum Excitation
|
15V DC
|
Material
|
Stainless steel
|
||
|
Protection class
|
IP65（or IP67)
|
life time
|
106 time
|
||
|
Cable
|
4 core shielded cable Ø5*3m red(E+) black(E-) green(S+ ) white(S-)
|
||||
Q1: Are you trading company or manufacturer ? A: We are factory. Q2: Can you print our brand on the product? A: Yes, Of course. It can make customer’s brand logo. Q3: How to place an order ? Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters. Q4: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards. Q5: What is lead time? If we have it in stock, we can ship it to you within about 7 working days. If we don’t have it in stock, the lead time will be 2-4 weeks. The specific time needs to be negotiated. Q6: What is the payment terms? T/T, Western Union, L/C, Paypal, etc. Escrow alibaba is acceptable. Q7: What is the express delivery? DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: express delivery, by sea, by air transport. If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice. Q8: What is the quality guarantee? Quality guarantee: 12 months. If the product has quality problem within 12 months,if there is quality problem which cuased by our side, you can send back goods for repair and pay the freight cost at your side. or we can send replacement.
