Computer Control Call Serial Port Quad Band Gsm Module with ble SIM800C GSM GPRS Module USB to GSM

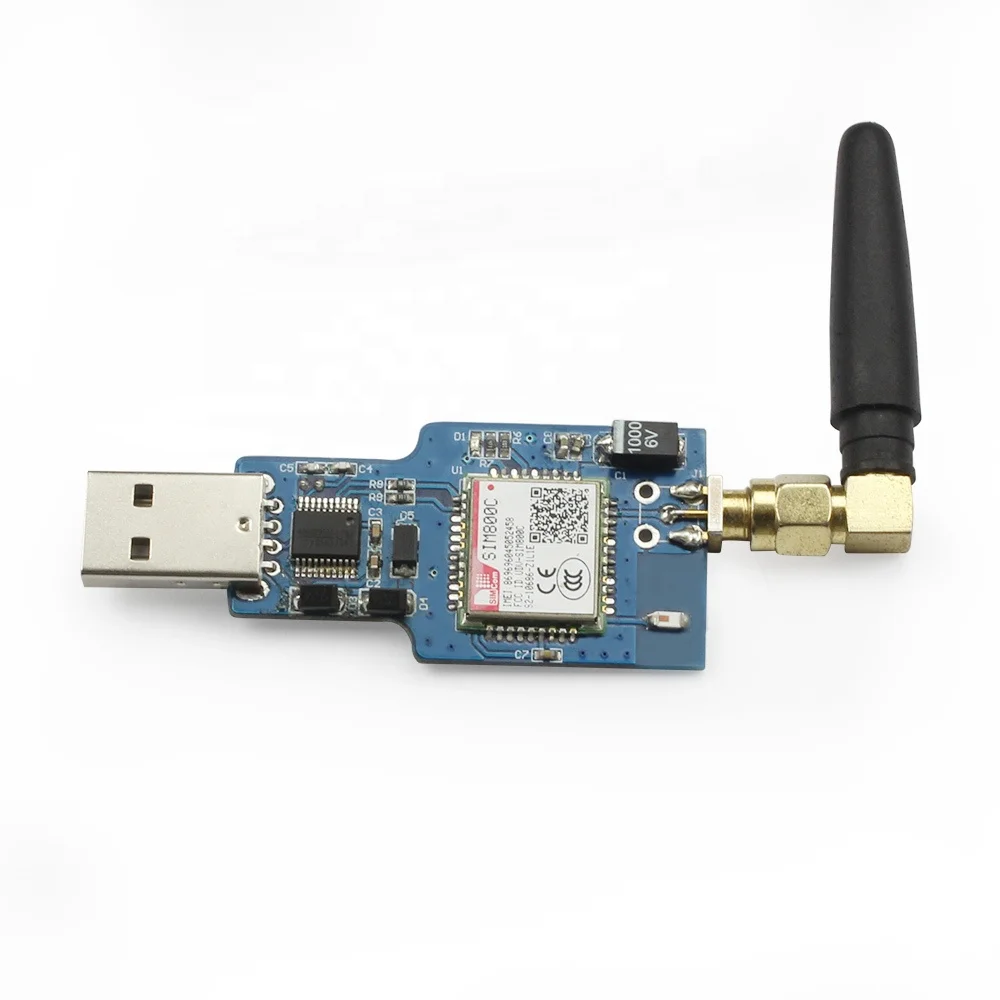

USB to GSM is a quad-band GSM/GPRS module with stable performance, compact appearance and high cost performance, which can meet the various needs of customers. Integrated USB to serial port chip, plug directly into the computer to debug. The SIM800C operates at GSM/GPRS 850/900/1800/1900MHz and is used worldwide. It can transmit voice, SMS information and data information with low power consumption, and can be applied to various compact product design requirements.
Parameter
1. Onboard original SIM800CGSM/GPRS module
2. Onboard CH340TUSB to serial port chip, easy to install and high compatibility
3. Self-elastic SIM card slot design, can use mobile or Unicom's 2G/3G/4G Micro SIM and Nano card
4. The module is powered on automatically to connect to the network, no need to press the button to control the boot, eliminating the troublesome boot process
5. Support SMS SMS sending and receiving, provide management software
6. Provide reference to the host computer source code (c#, vb) supporting materials and instructions for use
7. Support GPRS data transmission under 2G network, can be applied to mobile meter reading and other occasions
8. Support ble data transmission, IEEE802.15 ble standard, 2.4GHz working frequency band
9. Support adaptive baud rate
10. There is work indicator light. When there is no network, no SIM card or SIM card is inserted, the LED light flashes quickly in 1 second interval, and the normal access network flashes once every 3 seconds.
| Onboard | SIM800CGSM/GPRS module |
| Board size | 27*50.7mm |
Instructions
Connect the module to the 2.4GHz GSM antenna and insert the SIM card (Note: support Micro/Nano card, support China Mobile or China Unicom mobile phone 2G/3G/4G card, but does not support 3G/4G network, does not support telecom card), plug in On the USB port of the computer, the serial port driver of CH340 needs to be installed for the first time.
After the module is started, the indicator light flashes once in 1 second. After a period of initialization, the indicator light changes to 3 seconds, and the module starts to work normally. Then you can control the SIM800C module with the AT command.
1, call
Initiate a voice call: ATD189****3783; must be added a semicolon, please note! ! !
Hang up the call: ATH answering the call: ATA
2, send the English text message (TEXT mode) plug in the SIM card, start the module, the module can be operated after the module registration is successful (the indicator 3S lights up once, indicating that the module has been registered to the 2G network).
Send: AT+CMGF=1 return: AT+CMGF=1
OK to send: AT+CSCS="GSM" return: AT+CSCS="GSM"
OK to send: AT+CMGS="10086" return: AT+CMGS="10086"
>
Send: XXXXXX (0-9, A-Z) [XXXXX refers to Arabic numerals 0-9, English 26 letters A-Z]
Note: XXXXXX is the content of the text message to be sent.
Returns: XXXXXX(0-9,A-Z)[XXXXX means Arabic numerals 0-9, English 26 letters A-Z]
Send: 1A (hexadecimal transmission) Note: There will be a +CMGS command return after successful transmission.
For example, use the mobile phone to send SMS "LCTECH" to "10086". Proceed as follows:
3, GPRS data transmission
AT+CGCLASS="B"//Set the mobile station class to B, that is, the module supports packet switching and circuit switching mode, but not both.
return:
AT+CGCLASS="B"
OK AT+CGDCONT=1, IP", "CMNET"//Set PDP context flag 1, using Internet Protocol (IP) access point as "CMNET"
return:
AT+CGDCONT=1, "IP", "CMNET"
OK AT+CGATT=1// is used to set the attachment and separation of GPRS services back:
AT+CGATT=1
OK AT+CIPCSGP=1, "CMNET"/ is set to GPRS connection, the access point is
"CMNET"
return:
AT+CIPCSGP=1, "CMNET"
OK AT+CLPORT="TCP", "2000"//Set the TCP connection local port number to 2000 to return:
AT+CLPORT="TCP", "2000"
OK AT+CIPSTART="TCP", "111.68.4.142", 9090// is used to establish a TCP connection or register a UDP port number. The module will establish a TCP connection. For example, the connection destination address is 111.69.4.146 and the port is 9090. Successful connection will return: CONNECT OK
(Note: The IP address needs to be the public IP address).
return:
AT+CIPSTART="TCP","111.69.4.146",9090
OK CONNECT OK
AT+CIPSEND// module sends data to the server
return:
AT+CIPSEND
>SIM800C test//Data content: SIM800C test
return:
SIM800C test
SEND OK / / sent successfully
