Description
Product Description
1. LV low voltage distribution cabinet is suitable for three-phase AC 50HZ/60HZ, voltage 380V/440V, rated current to 6300A power distribution system , it is widely used in power plants, substations, industrial and mining enterprises etc energy consumer and using for power, lighting and distribution equipment for electrical energy conversion, distribution and control purposes
2. Protection grade is IP40. IP20-IP43 could be optional according to the requirements of service condition.
3. Good appearance. easy assembly and disassembly.
MAIN FEATURES
1.Ambient air temperature: -5℃~+40℃ and the average temperature should not exceed +35℃ in 24h
2.Indoor altitude above sea level: Maximum installation altitude: 2000m
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex.90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.The equipment shall be installed in a place where there is no violent vibration and impact, and the place where the electrical
components are not corroded.
7.Any specific requirement, consult with GP service.
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex.90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.The equipment shall be installed in a place where there is no violent vibration and impact, and the place where the electrical
components are not corroded.
7.Any specific requirement, consult with GP service.

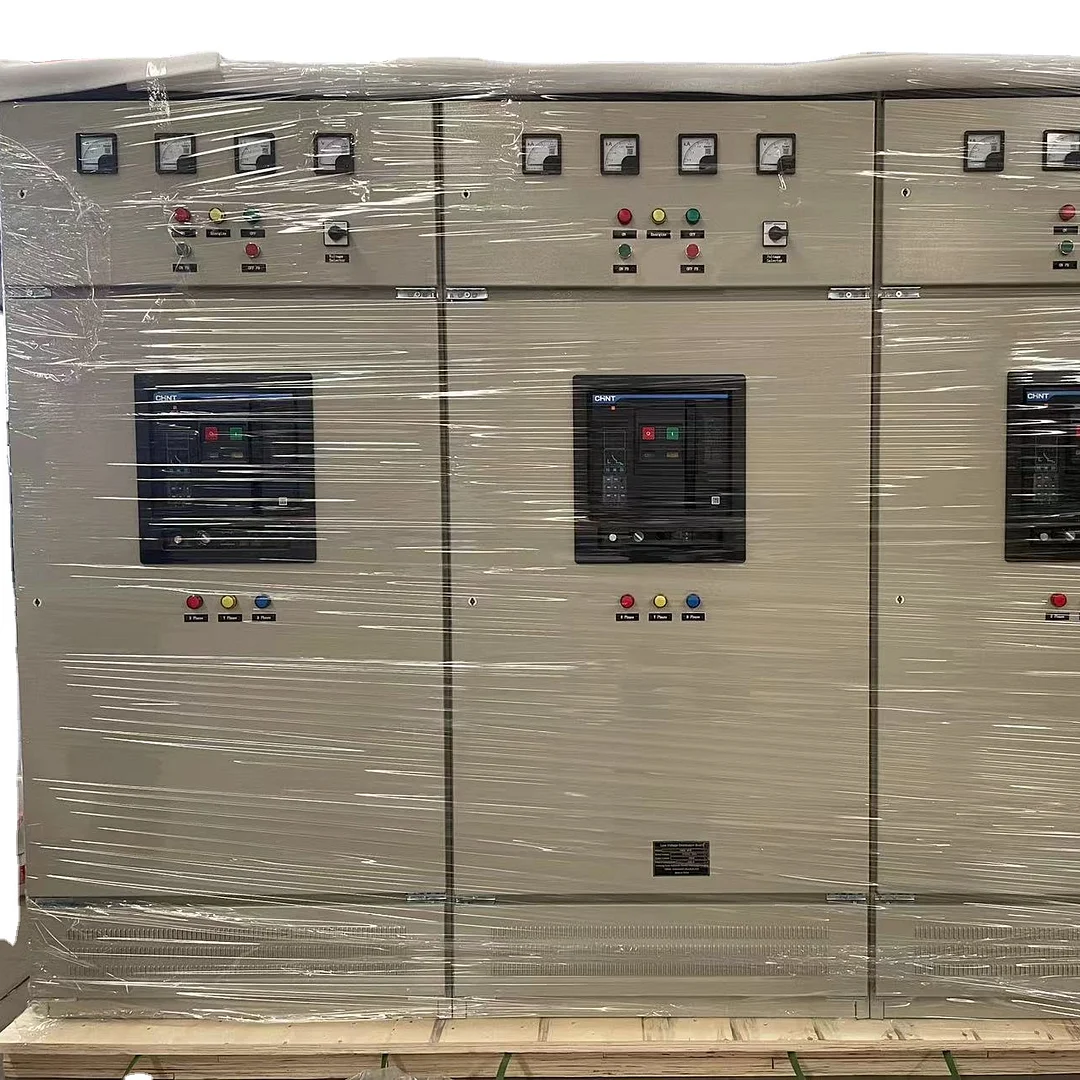

Product Picture
Detail Display
Specification
|
1
|
Item
|
parameter
|
|
|
2
|
Rated voltage
|
380/440V
|
|
|
3
|
Rated frequencty
|
50/60Hz
|
|
|
4
|
Rated peak withstand current
|
1pk can casue 375kA
|
|
|
5
|
IP degree
|
IP30/IP32/IP40/IP54
|
|
|
6
|
Outline dimension W*D*H
|
Custom
|
|
|
7
|
Package
|
Wooden case
|
