Description

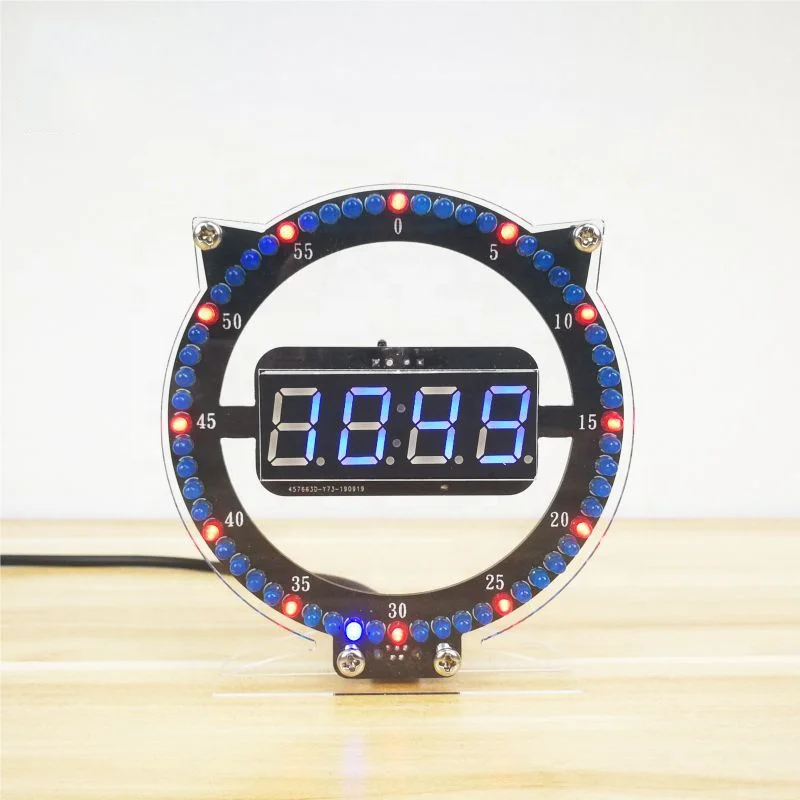

Colorful LED Electronic Clock DIY Kit Time Clock Night Light Electronic Stem DIY Education Kit Welding Part for Gift
Product Description
Display time/temperature 13 LED switching animations With second reset function to set alarm With temperature display, you can set the temperature display or not With light control function, light control switch can be set
Specification
|
item
|
value
|
|
Working voltage
|
5V
|
|
Shell size
|
86*93.3mm
|
Installation Instructions
1. The kit is powered by 5V voltage 2. After soldering, check that the chip is not soldered reversely, and then it can be powered on. Time adjustment is required for the first power-on. 1. Press the setting button for the first time to enter the display of setting minutes. At this time, every time you press the No. 2 button, the displayed value will increase by 1. The value is between 0 and 59. According to the current time, set the corresponding value. That's it. 2. After setting the minute, press the setting button for the second time to enter the setting. At this time, every time you press the plus button, the displayed time may increase by 1, and the value is between 0-23. According to the current time, set Just the corresponding value. 3. After setting the time, press the setting button for the third time, and enter the second reset setting. At this time, the current second hour is displayed, and the second will change. At this time, every time the plus button is pressed, the second will return to zero. If the user You can set the number of seconds in the actual time according to your needs. When the second of the actual time becomes 0, press the plus key to set the second. (When setting the minutes, set the minutes to one minute more than the actual number, that is, the actual number is 50 minutes, and set it to 51 minutes. This is the second to zero to be accurate) 4. Press the setting button for the 4th time to enter the setting of the alarm minute. At this time, every time you press the No. 2 button, the displayed value will increase by 1, and the value will be between 0-59. According to the current time, set the corresponding number that is Can. 5. Press the setting button for the 5th time to enter the setting of the alarm clock. At this time, every time you press the plus button, the displayed time may increase by 1, and the value is between 0 and 23. According to the current time, set the corresponding value that is Can. 6. Press the setting button for the 6th time, the current digital tube will display "1-00", then enter the alarm clock function to open or close the setting, press the plus button to open or close ("1-00" means close, "1- 11” for ON). 7. Press the setting button for the 7th time, the current digital tube will display "2-00", then enter the light control function to open or close the setting, press the plus button to open or close ("2-00" means close, "2" -11" means open) 8. Press the setting button for the 8th time, the current digital tube will display "3-00", then enter the temperature display function to open or close the setting, press the plus button to open or close ("3-00" means close, normal display The screen will always display the current time, "3-11" means open, the normal display screen will switch the clock and temperature cycle display). 9. Press the setting button for the 9th time to return to the normal display screen 10. In the normal display screen, every time you press the plus button, the animation effect of the led will switch.

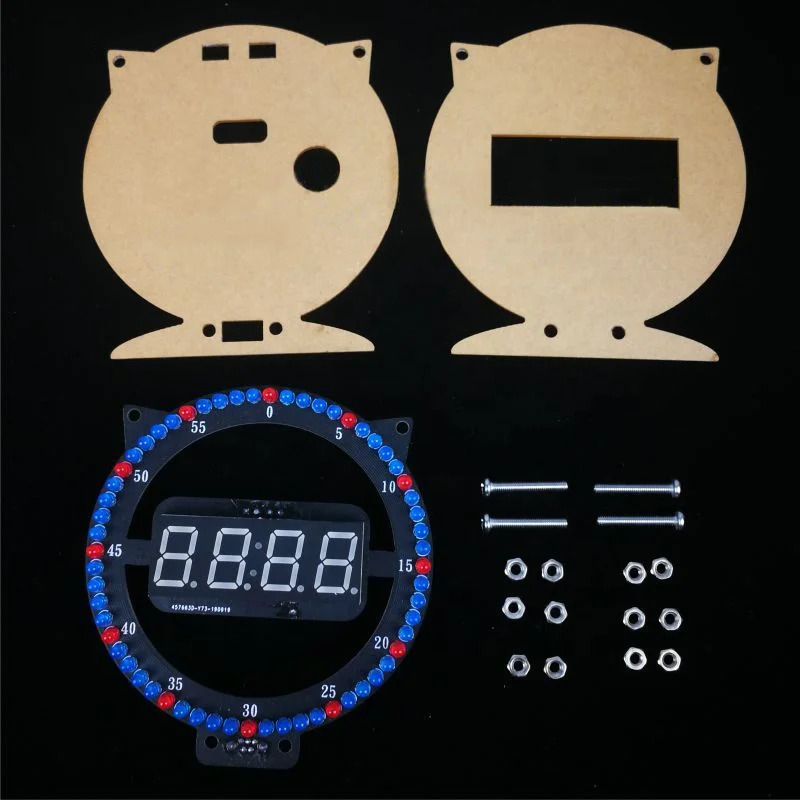

Details Images
