Description
Specification
|
Main Specifications
|
|
|
Certifications
|
FCC, CE, RoHs, SRRC
|
|
Performance Specifications
|
|
|
Frequency Range
|
840MHz~960MHz, adjustable
|
|
Protocol
|
EPC C1G2, ISO18000-6B/C
|
|
Frequency band
|
GB 920MHz~925MHz, 840MHz-845MHz; FCC 902MHz~928MHz;
|
|
Optional frequency band
|
Please tell our sales which band do you want before ordering: ETSI865MHz~868MHz; JP 916.8MHz~920.4MHz;TW922.25~927.75MHz;
ID923.125~925.125MHz; RUS, 866.6~867.4 MHz; TEST, 802.75~998.75MHz; JP_LBT,916.8~920.8MHz |
|
Communication protocol
|
COM
|
|
Reading Distance
|
0-30cm, adjustable
|
|
Antenna gain
|
0dBi
|
|
Working mode
|
Fixed frequency/frequency hopping optional
|
|
RF output power (port)
|
33dBm±1dBm(MAX)
|
|
Recognizing speed
|
>400 times / S
|
|
Communication
|
|
|
Communication
|
COM port or HID
|
|
RS232
|
Baud rate support 9600, 19200, 115200 (default), 460800 optional;
|
|
Physical Specifications
|
|
|
Dimension
|
360mm*320mm*19mm
|
|
Net weight
|
1kg
|
|
Material
|
ABS
|
|
Power
|
|
|
Power Supply
|
USB power supply
|
|
Power consumption
|
15W (output power 33dbm)
|
|
Operating Environment
|
|
|
Operating temperature
|
-20 ºC ~+60 ºC
|
|
Storage temperature
|
-40℃~+85℃
|
|
Working humidity
|
<95% (+25°C)
|

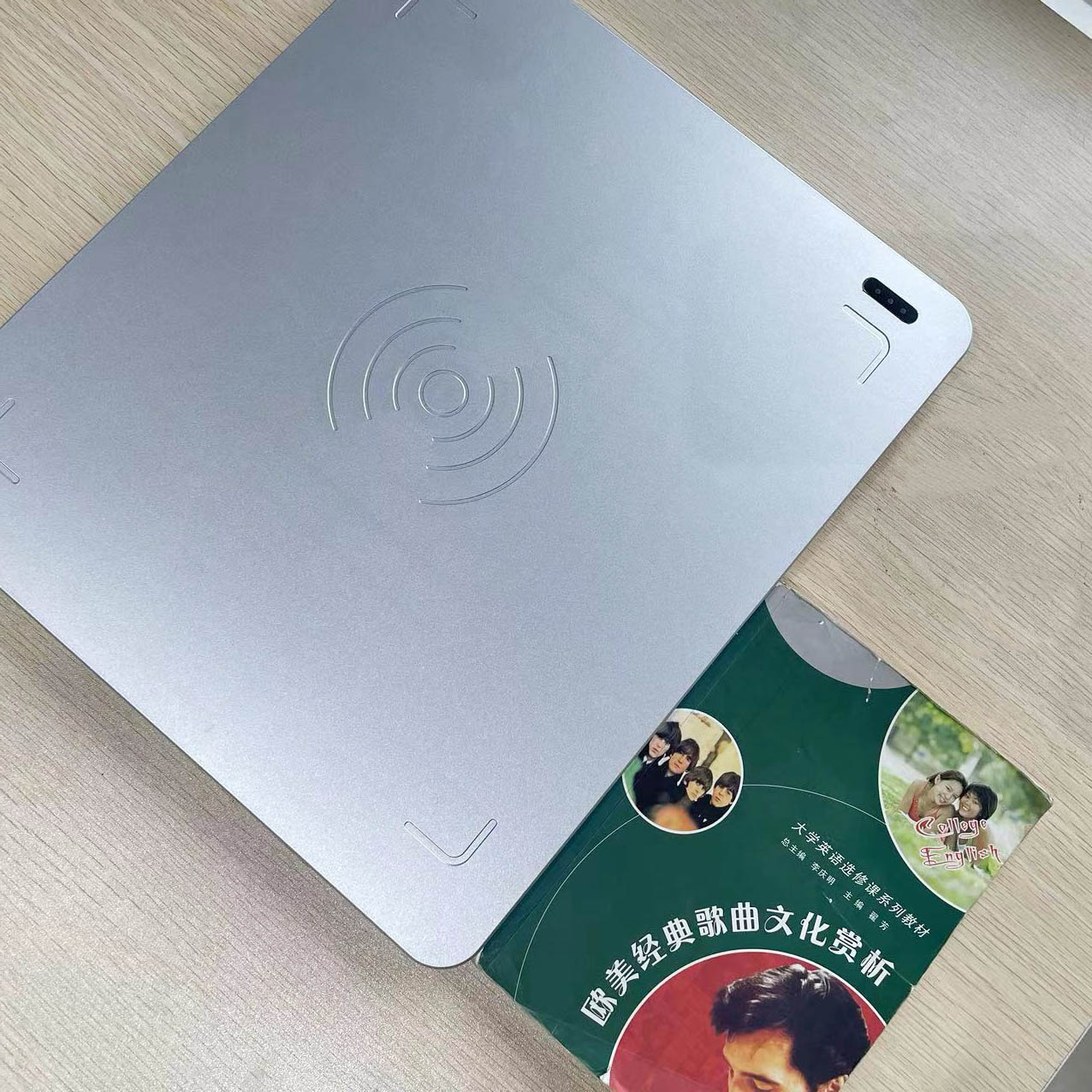

Details Images
Packing & Delivery
Package: Normally it is packed by carton for small quantity. But sometimes we take wooden case if the quantiry is large.
Delivery: We support air and sea shipping and will take different method according to the products dimension and weight. And of course, we will choose shipping method according to your request. Besides, you can also use you own shipping forwarder if you have one.Applications
FAQ
1.What is your minimum order?
Our RFID reader MOQ is 1 unit.
2.What is your lead time?
Our normally lead time is 1~7 working days,also depends on real order quantity and specific requirement.
3.What method will you use for shipment?
We delivery goods by DHL,FedEx,TNT,UPS ,also can ship goods by sea or by air,real method depends on order quantity.
4.What payment methods your company accept?
We can accept payment by T/T, Western Union and paypal.
5.How to place order to you?
You can send online order on Alibaba platform,also can send purchase order to our sales directly ,we will send online or offlineproforma invoice to you confirm order.
6.Can you provide after-sales technical support?
Yes,we have strong technical team can provide after sale technical support service.
7.Why choose you?
Our products including RFID readers, RFID doorway, RFID cabinet,RFID antenna and RFID tags. I am sure our product line can cover your needs.
