The safety protection system provides safety protection for personnel and equipment, preventing personnel from unknowingly having
a dangerous collision with the machine, preventing it from error starting, and other accidents; the signals of each safety
sensorare fed back to the equipment PLC or the robot controller through the I/O unit communication system, and uses hard wiring toachieve system communication and interlock control.
Please contact a sales representative for detailed selection information.
Description

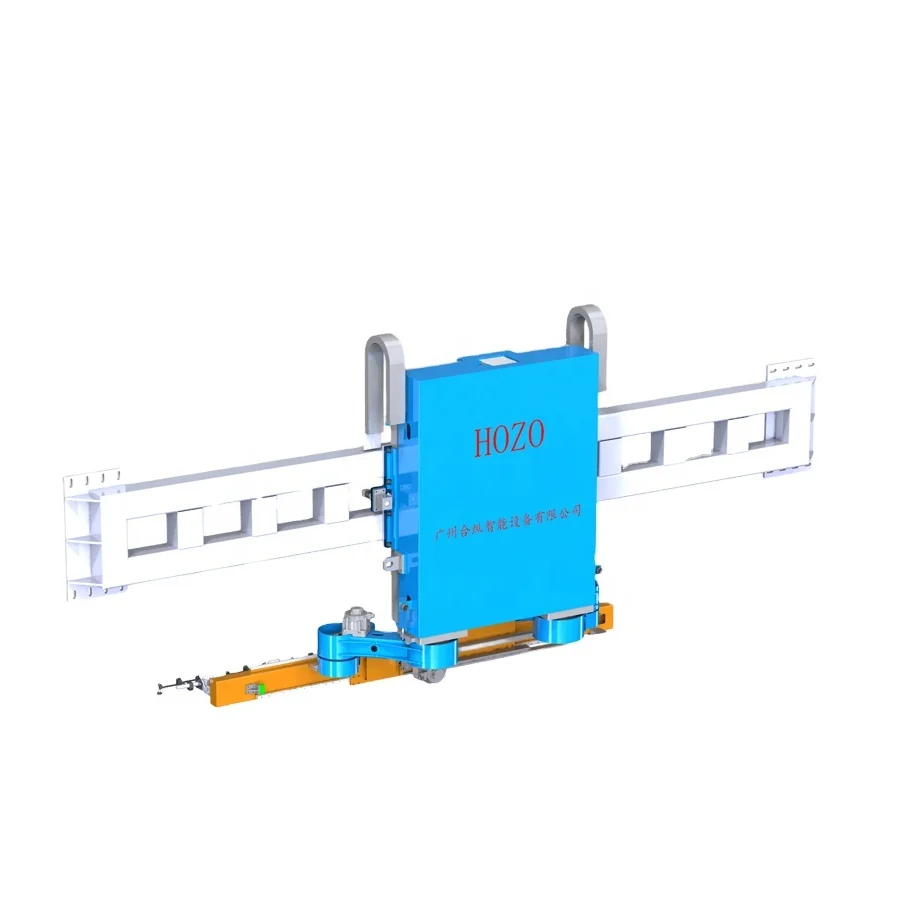

Multi-station three-dimensional stamping manipulator Features: 1. Full absolute value servo control; 2, the control system adopts stamping special control system, smooth operation, high transmission accuracy; 3, the manipulator has a middle transition, can be flipped in the transition table position, tapping and other processes; 4, the relative position of the punch and mold requirements are high, installation and debugging is difficult, slow line change speed; 5, suitable for large tonnage punching machine, such as 1000T punching machine, punching machine center distance ≤6400mm (can be customized).
Successful Project
Peripheral related device
1、Security System
2、Robot specialrobot end picker for sheet metal
1. We use a standard module design to make the robot end picker with a flexible figuration(Easy to install, adjust, and repair).The material is made of special aluminum alloy, which has the advantages of lightweight, high strength, and high durability.
2. The robot end picker is equipped with a high-quality vacuum suction cup to pick up sheet metal, which has the advantages of good suction, wear resistance, and surface oil resistance.
3. The robot end picker is equipped with a quick-change device to achieve the quick advantages of replacement, positioning, electrical connection, etc., and is compatible with various manipulators and robots manufacturers.
2. The robot end picker is equipped with a high-quality vacuum suction cup to pick up sheet metal, which has the advantages of good suction, wear resistance, and surface oil resistance.
3. The robot end picker is equipped with a quick-change device to achieve the quick advantages of replacement, positioning, electrical connection, etc., and is compatible with various manipulators and robots manufacturers.
3、Feeding Machine Series
In response to the characteristics of the stamping industry, Hezeng Intelligent has not only
developed a fast robot for simple installation and operation, but also developed
related equipment for support:
1. Double station servo feeding machine with hydraulic lifting device
2. Double station servo feeding machine
3. Double station servo feeding machine with double transfer arm
4. Servo secondary positioning table
5. Secondary positioning table with pneumatic cylinder
6. Gravity secondary positioning table
7. Roller lubricating machine for sheet metal
8. Flip platform
developed a fast robot for simple installation and operation, but also developed
related equipment for support:
1. Double station servo feeding machine with hydraulic lifting device
2. Double station servo feeding machine
3. Double station servo feeding machine with double transfer arm
4. Servo secondary positioning table
5. Secondary positioning table with pneumatic cylinder
6. Gravity secondary positioning table
7. Roller lubricating machine for sheet metal
8. Flip platform
