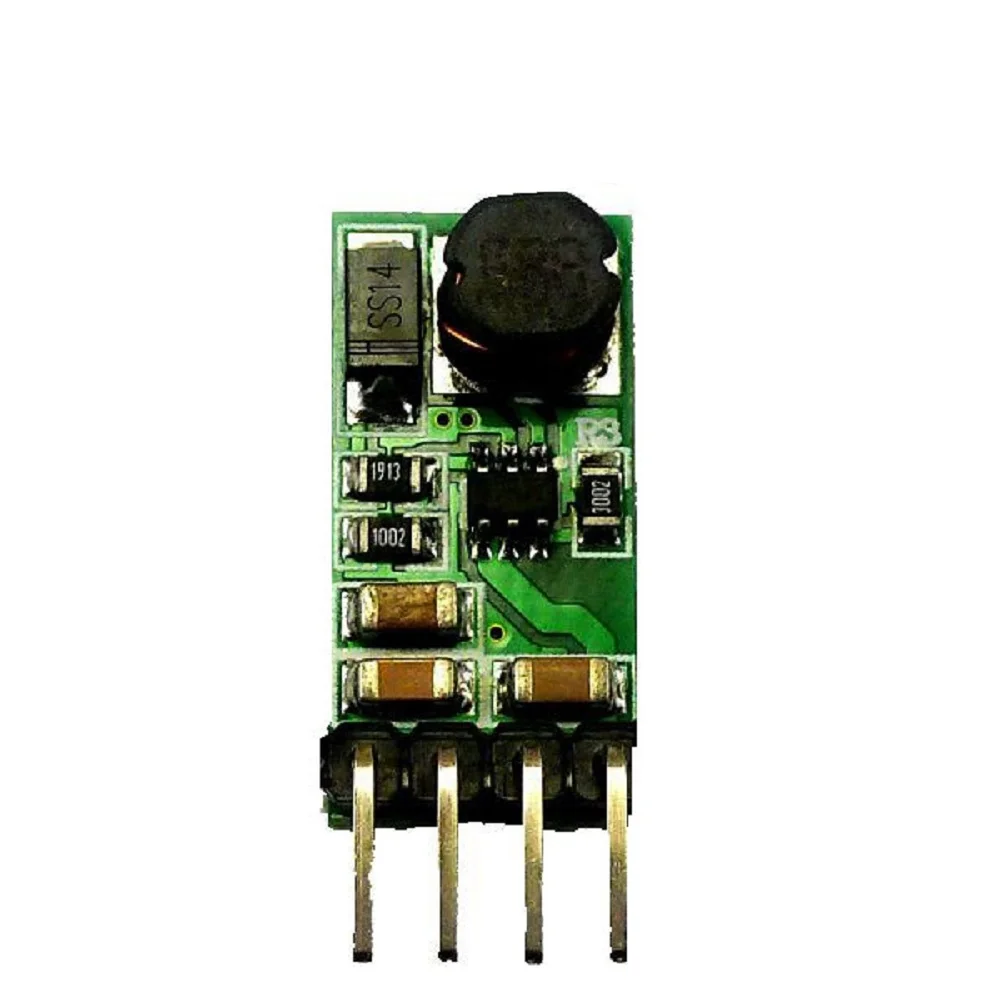

CE014 3V 3.3V 3.7V 4.5V to 5V 9V 12V DC DC Converter Step-Up Boost Current Mode PWM Voltage Transformation Module



5V

Description:


Input voltage 2.6~6V, output 5V (deviation +-6%)

Maximum input current :  1.2A
Long-term work Current : 1A
Conversion efficiency : 79-91%

Start Voltage 2.6V, Output Current 50MA

INPUT 2.8V 1A;  OUTPUT  5V 290MA
INPUT 3V 1A;    OUTPUT  5V 480MA
INPUT 3.3V 1A;  OUTPUT  5V 590MA
INPUT 3.7V 1A;  OUTPUT  5V 650MA
INPUT 4.5V 1A;  OUTPUT  5V 790MA

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/C PLD  Development Board  friendly.
Over Temperature Protection
Over Voltage Protection
Excluding Pin Size 20.6mm x 10.17mm x 5.7mm( Very small )
Weight : about 1.5g( Very light )

Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
RS485 PLC Modbus RTU
VCR
PDA
LED Lighting
5V Relay board
Wireless communication equipment
315M 433M Wireless remote controller







9v

Description:

Input voltage 2.8~6V, output 9V (deviation +-5%)

Maximum input current :  1.2A
Long-term work Current : 1A
Conversion efficiency : 81-91%

Start Voltage 2.8V, Output Current 60MA

INPUT 3V 1A;    OUTPUT    9V 290MA
INPUT 3.3V 1A;  OUTPUT  9V 330MA
INPUT 3.7V 1A;  OUTPUT  9V 360MA
INPUT 4.5V 1A;  OUTPUT  9V 440MA
INPUT 5V 1A;    OUTPUT   9V 490MA
INPUT 6V 1A;    OUTPUT   9V 590MA

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/C PLD  Development Board  friendly.
Excluding Pin Size 20.6mm x 10.17mm x 5.7mm( Very small )
Weight : about 1.5g( Very light )

Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC Modbus RS485
Network equipment/Router
VCR
PDA
LED Lighting
9V Relay board
Wireless communication equipment
315M 433M Wireless remote controller



12V

Description:

Input voltage 2.8~6V, output 12V (deviation +-5%)
Maximum input current :  1.2A
Long-term work Current : 1A
Conversion efficiency : 80-90%

Start Voltage 2.8V, Output Current 50MA
INPUT 3V 1A;    OUTPUT  12V 220MA
INPUT 3.3V 1A;  OUTPUT  12V 250MA
INPUT 3.7V 1A;  OUTPUT  12V 280MA
INPUT 4.5V 1A;  OUTPUT  12V 340MA
INPUT 5V 1A;    OUTPUT  12V 370MA
INPUT 6V 1A;    OUTPUT  12V 450MA

DC-DC Boost module working frequency 1.0MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius
2.54mm pin pitch,Arduiuo UNO DUE Breadboard FPGA/C PLD  Development Board  friendly.
Excluding Pin Size 20.6mm x 10.17mm x 5.7mm( Very small )
Weight : about 1.5g( Very light )

Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
PLC Modbus RS485
VCR
PDA
LED Lighting
12V Relay board
Wireless communication equipment
315M 433M Wireless remote controller

Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
