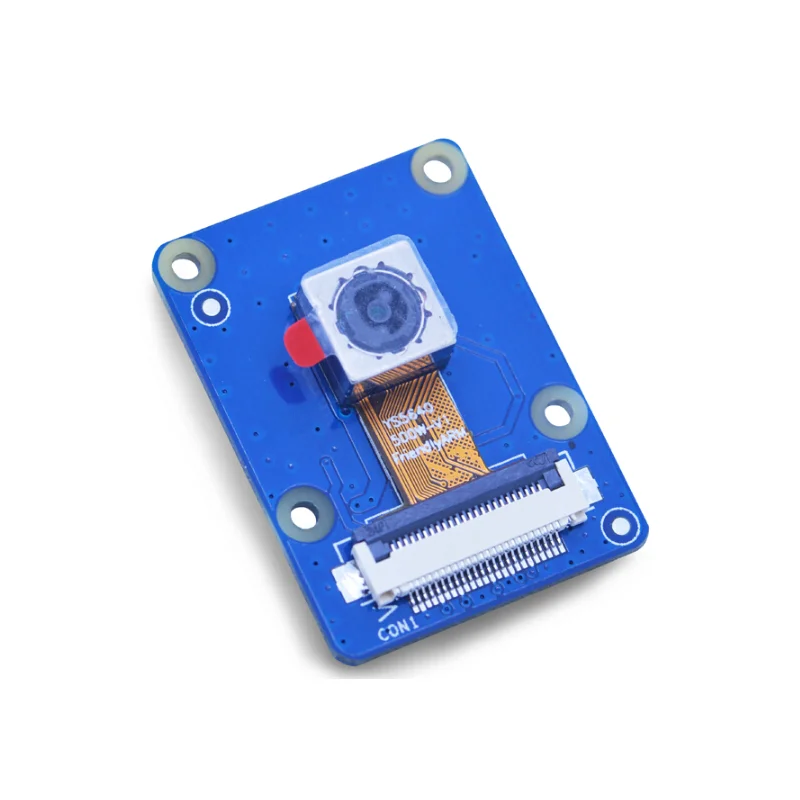

CAM500B 500W Pixel CMOS High Resolution Camera Module Support NanoPi M1 M2 M3 T2 NEO Air NanoPi S2 NanoPi 2 Smart4418
Product Description
* The CAM500B module uses Omni Vision’s QSXGA CMOS OV5640 module. It has DVP parallel output interface and supports up to 2592 x 1944 photographing and 720P@30fps video recording. It has automatic image control functions: AFC, AWB and AEC etc.
* The CAM500B uses a cell phone camera. This camera’s focal length is 2.7mm. Its aperture is 2.8. Its viewing angle is 66 degree.
* The CAM500B uses a cell phone camera. This camera’s focal length is 2.7mm. Its aperture is 2.8. Its viewing angle is 66 degree.
Features
* 5MP (2592 x 1944) photographing, 720P@30fps video recording
* Focal length: 2.7mm, Aperture: 2.8, Viewing angle: 66 degree
* Automatic image control functions: AFC, AWB and AEC etc
* 24 PIN FPC interface including DVC parallel output, 3.3V power, I2C and GPIO
* 3.3V signal level
* Focal length: 2.7mm, Aperture: 2.8, Viewing angle: 66 degree
* Automatic image control functions: AFC, AWB and AEC etc
* 24 PIN FPC interface including DVC parallel output, 3.3V power, I2C and GPIO
* 3.3V signal level
Specification
|
item
|
value
|
|
Power requirement
|
Active: TBD
Standby: TBD
|
|
Temperature range
|
Operating: -30 to 70°
Stable Image: 0 to 50°
|
|
Output format
|
8-/10 bit RGB RAW output
|
|
Focal length
|
V4"
|
|
Input clock frequency
|
6~27 Mhz
|
|
Maximum number of frames
|
●QSXGA (2596 x 1944): 15fps
●1080p: 30fps ●1280 X 960: 45fps ●720p: 60fps
●VGA(640 X 480): 90fps.
●QVGA(320 X 240): 120fps
|
|
Support output format
|
●RAW RGB
●RGB565/555/444 ●CCIR656 ●YUV422/420
●YCbCr422
●and compression
|
|
Sensitivity
|
TBD
|
|
Shutter
|
Rolling shutter / frame exposure
|
|
Maximum exposure interval
|
1964 x tROW
|
|
Pixel size
|
1.4 μmx1.4 um
|
|
Dark current
|
TBD
|
|
Potential well capacity
|
TBD
|
|
Fixed pattern noise (FPN)
|
TBD
|
|
Image size
|
3673.6 μm X 2738.4 μm
|
|
Package size
|
3673.6 μm X 2738.4 μm
|
