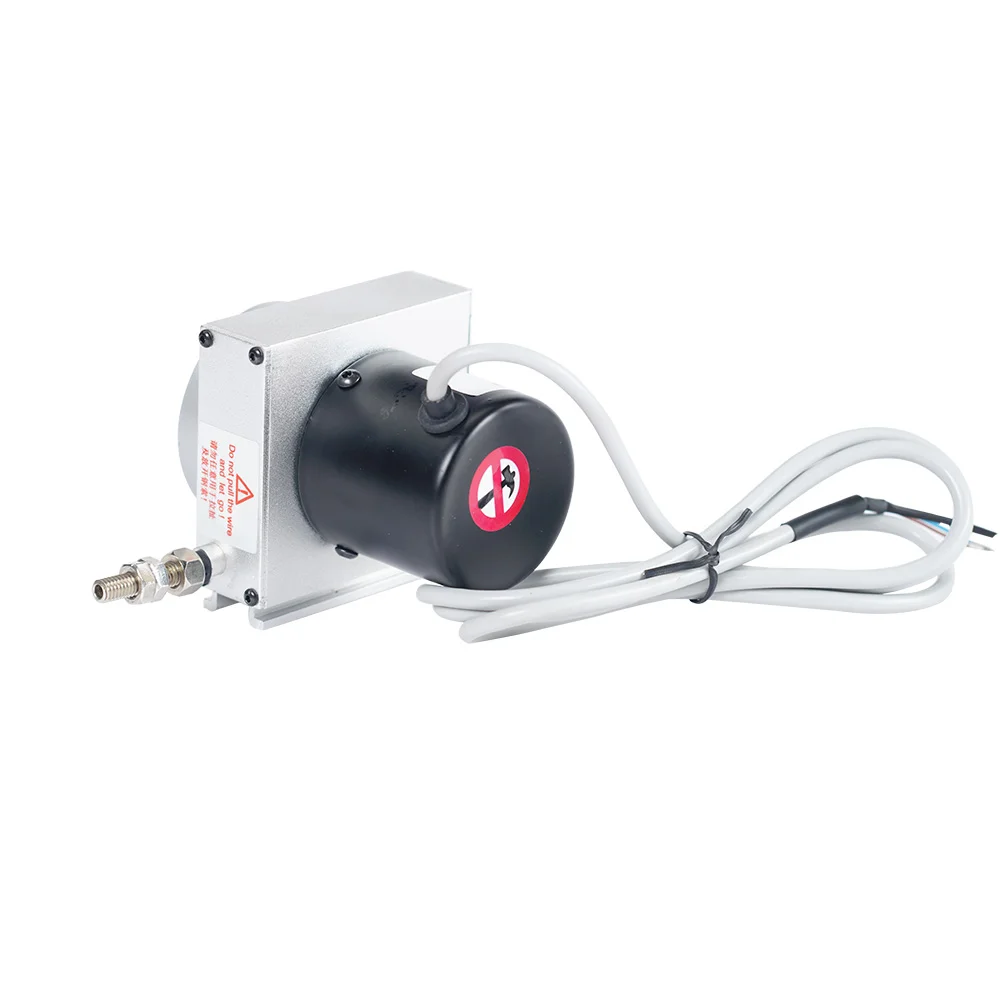

Cable Extension Transducer Pull Rope Encoder String Potentiometer Draw Wire Sensor
What is draw wire sensor?
The draw wire sensor is a compact integration of the linear displacement sensor. It combines the advantages of angular displacement sensor, linear displacement sensor and gear and strip transmission. It is compact, versatile, easy to install and small in installation size. No need to compensate for gaps, sensors with high precision measurement, high repeatability measurement and high positioning accuracy, long stroke and long life.
The draw wire sensor, also known as draw wire encoder, or string potentiometer, or cable extension transducer, or rope encoder etc.
What's the function of the draw wire sensor?
The draw wire sensor is suitable for accurate measurement and positioning control. Equipped with digital indicator, it can also be used as measurement tool for manual measuring.
WPS series position sensor is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworking machinery, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.
What's your key advantage to other suppliers?
The reason why SOP draw wire sensors are better than others, is that we use high accuracy and reliable SAKAE potentiometer imported from Japan.
Besides, we use high quality imported steel rope and have a skilled engineer who has over 10 years experience of position sensors.
Specification:
| Size | Output | Supply voltage | Output signal | Max stroke(mm) | Precision grade | Accuracy | Repeatability | Rope Dia |
| XXL | Customized | Customized | Customized | 100000 | M/P | ±0.001%-0.06% | 0.001% | 1.0-1.2mm |
| XL | R | 10-24V | 0-5/0-10kΩ | 30000 | M | ±0.005%-0.08% |
0.005%-0.01% |
0.8mm |
| V1/V2 | 24V | 0-5/0-10V | ||||||
| A2/A3 | 24V | 4-20mA | ±0.005%-0.15% | |||||
| Pulse | 8-30V | A,B/A,B,Z | M/P | ±0.001%-0.06% | 0.0005% | |||
| L | R | 10-24V | 0-5/0-10kΩ | 16000 | M | ±0.05%-0.08% | 0.005%-0.01% | 0.8mm |
| V1/V2 | 24V | 0-5/0-10V | ||||||
| A2/A3 | 24V | 4-20mA | ±0.08%-0.15% | |||||
| Pulse | 8-30V | A,B/A,B,Z | M/P | ±0.001%-0.06% | 0.0005% | |||
| M | R | 10-24V | 0-5/0-10kΩ | 6000 | M | ±0.05%-0.08% | 0.005%-0.01% | 0.68mm |
| V1/V2 | 24V | 0-5/0-10V | ||||||
| A2/A3 | 24V | 4-20mA | ±0.08%-0.15% | |||||
| Pulse | 8-30V | A,B/A,B,Z | M/P | ±0.001%-0.06% | 0.005% | |||
| S | R | 10-24V | 0-5/0-10kΩ | 2500 | M | ±0.05%-0.08% | 0.005%-0.01% | 0.68mm |
| V1/V2 | 24V | 0-5/0-10V | ||||||
| A2/A3 | 24V | 4-20mA | ±0.08%-0.15% | |||||
| Pulse | 8-30V | A,B/A,B,Z | M/P | ±0.004%-0.06% | 0.002% |
Please contact us freely for more details.
Product size drawing:
