Buck Converter Module 15A 200W DC-DC 8-60V TO 1-36V Adjustable Step Down Converter Board Stabilized Synchronous Rectification--shop.rfid-life.com

Description:

200W DC-DC high-voltage power supply synchronous step-down module

8-60V wide voltage input, 1-36V stepless adjustable output

Maximum peak output current 15A

Perfect ultra efficient circuit design with 94% low ripple

Parameters:

Name: 200W adjustable synchronous step-down module

Type: Non isolated buck module (BUCK)

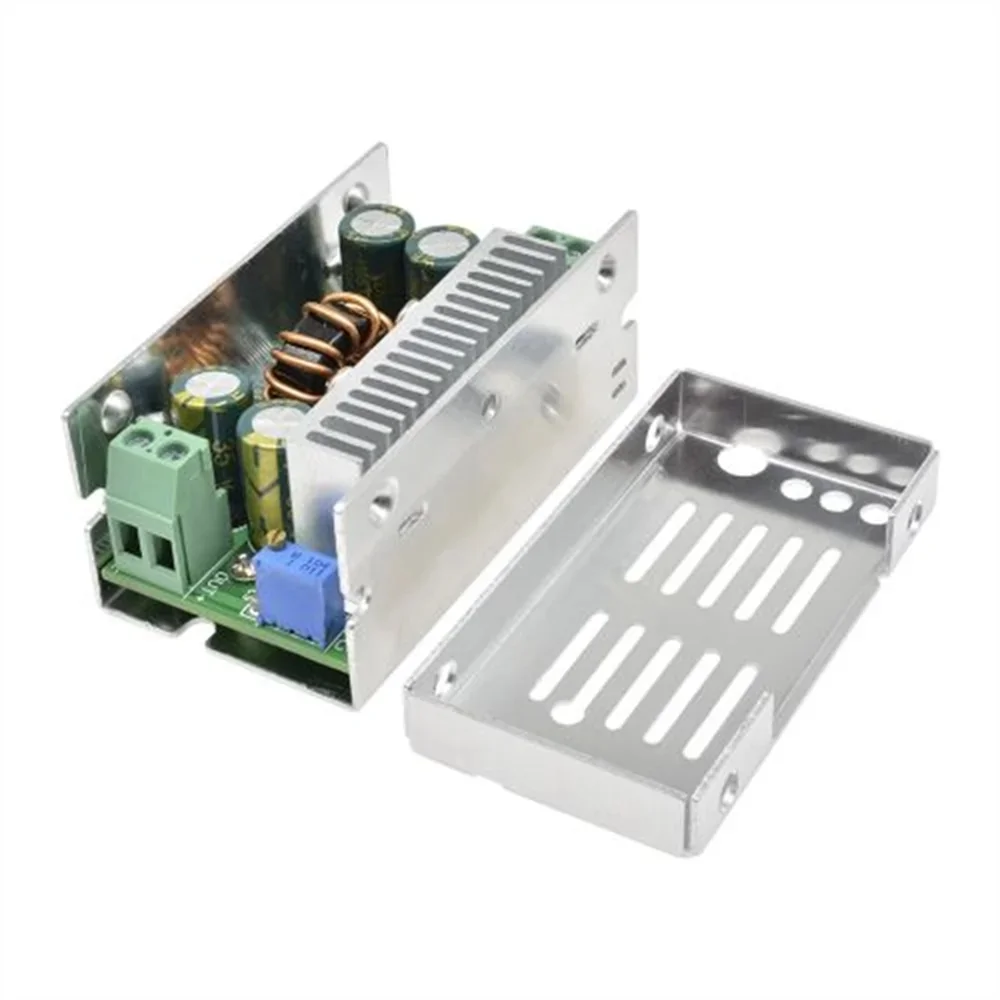

Aluminum housing size: 70 x 38 x 31 mm/27.5 "x15" x12“

Input voltage: 8-55V (60V limit, please reserve)

Output voltage: 1-36V, continuously adjustable (default output 12V)

Output current: normal 10A, MAX15A

Output power: natural cooling ventilation long-term power 100W

Improve the heat dissipation function of 200W

If working for a long time, please pay attention to the left edge and make it hot

Operating temperature: - 10 to+85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 94%

Overcurrent protection: Yes (maximum sampling protection for output current exceeding (15A) current)

Reverse polarity protection: (reverse non combustible)

Wiring: high current terminal, solderless, IN+input is positive, IN - input is negative, OUT+positive output, OUT - output is negative
