BTM308/QCC3008 Stereo Audio Module Aptx-ll Adapter I2S Output TWS Ble 5.0 Transmitter Receiver
Product Description
Overview

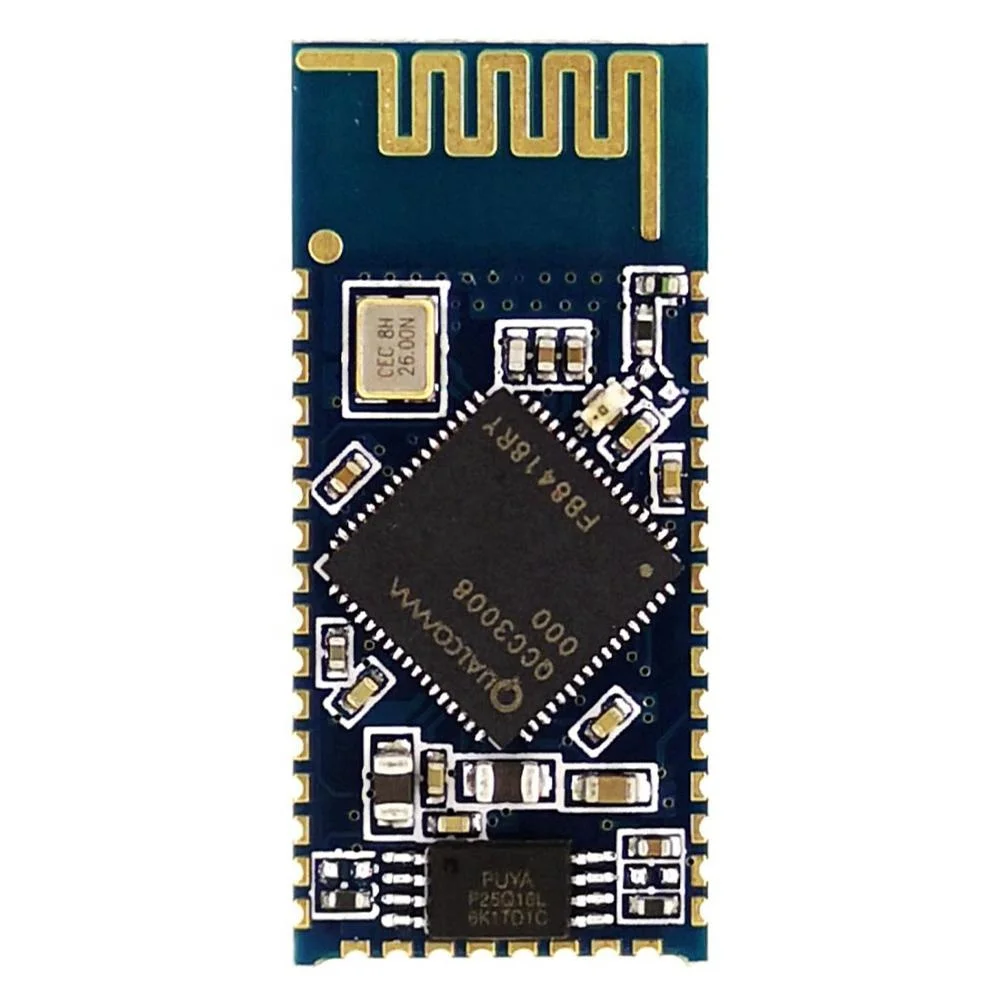

Ble 5.0 modules SJR-BTM308-C which is a high performance, cost effective, low power and compact solution. The Ble module provides a complete 2.4GHz Ble system based on the QCC3008 QFN chipset which is a single chip radio and baseband IC for Ble 2.4GHz systems,. This module is fully qualified single-chip dual mode Ble@v5.0 system.
Key Features
Additional Functionality
· Support for multi-language programmable audio prompts
· Multipoint support for A2DP connection to 2 A2DP sources for music playback
· Talk-time extension, which automatically reduces processor functions to extend use when a low battery condition is detected
· Slim module with 28.5mm× 13mm × 2.0mm
Ble Profiles
Ble Profiles · Ble v5.0 specification support Qualcomm Ble Low Energy secure connection A2DP V1.3.1 AVRCP V1.6 HFPV1.7HSPV1.2SPPV1.2DIDV1.3 HOGPV1.0 PXPV1.0.1 FMP V1.0 BASV1.0 · QTIL's proximity pairing and QTIL's proximity connection
Music Enhancements
· aptx, aptx Low Latency, SBC, and AAC audio codecs Qualcomm TrueWirelessl Stereo(TWS), which allows two devices to be configured as a stereo pair
· Configurable Signal Detection to trigger events
· 1 bank of up to 10-stage Speaker Parametric EQ
· 6 banks of up to 5-stage User Parametric EQ for music enhancement · Qualcomm meloD Expansion audio processing:3D stereo widening
· Compander
to compress or expand the dynamic range of the audio
to compress or expand the dynamic range of the audio
· Post Mastering to improve DAC fidelity
· Dual IPS outputs with crossover
Applications
Application
· Stereo Headsets
· Wired Stereo headsets and headphones
· Portable Ble Stereo speakers
Precautions
1. The module pins are dense and require a good welder foundation. Module pre-shipment test
2. CSR Ble module audio is differential output, you need to add op amp or amp circuit to single-ended output (left channel, right channel, audio common).
3. Only the module application data, ie the Ble module specification and the Ble module reference schematic, are provided.
4. Support app control, you can view Ble information and modify EQ function
Software Description
Ble name: BT Speaker Note: The button is active high (MFB high level is 3.3V, PIO high level is 1.8V)! Another: Here is the PIO port, not the actual PIN pin, you need to check the specification to see the actual PIN foot!
|
MFB
|
High level boot, low level shutdown (PIN30 needs low level when the module is powered on, need to do delay circuit when powering on, can't pull up directly, boot automatically enters pairing mode)
|
|
PIO6
|
Amplifier control enable pin (output level 1.8V when audio output is available)
|
|
PIO8
|
Short press play/pause/answer/hang up, long press 1 second to reject the call
|
|
PIO1
|
Short press the previous track, long press the volume minus
|
|
PIO0
|
Short press a song, long press volume plus
|
Special function description: PIO8: Press and hold for 3 seconds to force the pairing mode, press and hold for 6 seconds to clear the pairing list. PIO8+PIO1: Long press for 1 second to enter search TWS mode (CSRA64xxx/QCC300x Ble series only) PIO8+PIO0: Long press for 1 second to enter the searched TWS mode (CSRA64xxx/QCC300x Ble series only) PIO1+PIO0: Long press for 1 second to disconnect TWS (CSRA64xxx/QCC300x Ble series only)
