BT33 MCR100-6 Transistor Desk Lamp Dimmer Circuit Electronic Hobby Kits DIY Circuit Board Electronic Components Kit

DIY Circuit Board Electronic Components Kit
$2.68
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
BT33 MCR100-6 Transistor Desk Lamp Dimmer Circuit Electronic Hobby Kits DIY Circuit Board Electronic Components Kit
Product Description

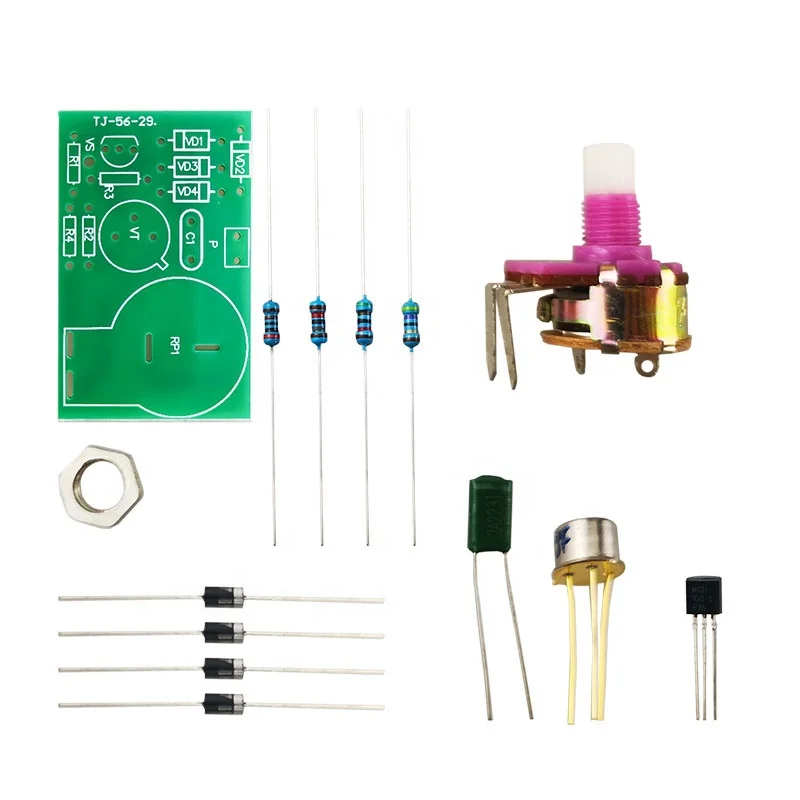

Reminder: This product is a set of spare parts, you need to assemble it by yourself! BT33 desk lamp dimming kit uses a dimmer switch kit composed of a single junction transistor BT33 and a one-way thyristor MCR100-6. The dimming circuit can make the voltage at both ends of the bulb In the range of tens of volts to 200 volts, the dimming effect is significant. The working principle is simple, easy to understand and master, and it is also convenient to strengthen the understanding of the working principle of single-cell transistors during the production and debugging process.

Note

This circuit uses 220V mains power supply, which can dimming 10-40W incandescent lamps. Pay attention to the installation and debugging process, and do not touch the circuit board when the power is turned on. The working voltage of the circuit: 220V circuit load 10-40W incandescent lamp can not use energy-saving lamps.
Installation Instructions
Installation sequence
Tag
Name
Specification
Quantity
1
D1 D2 D3 D4
R1
R2
R3
R4
diode
resistance
resistance
resistance
resistance
1N4007
51K
300Ω
100Ω
18K
4
1
1
1
1
2
VT
Single junction transistor
BT33
1
3
VS
Thyristor
MCR100-6
1
4
C1
Polyester capacitor
223
1
RP
Potentiometer with switch
500K
1
5
China
Circuit board
1
Details Images
