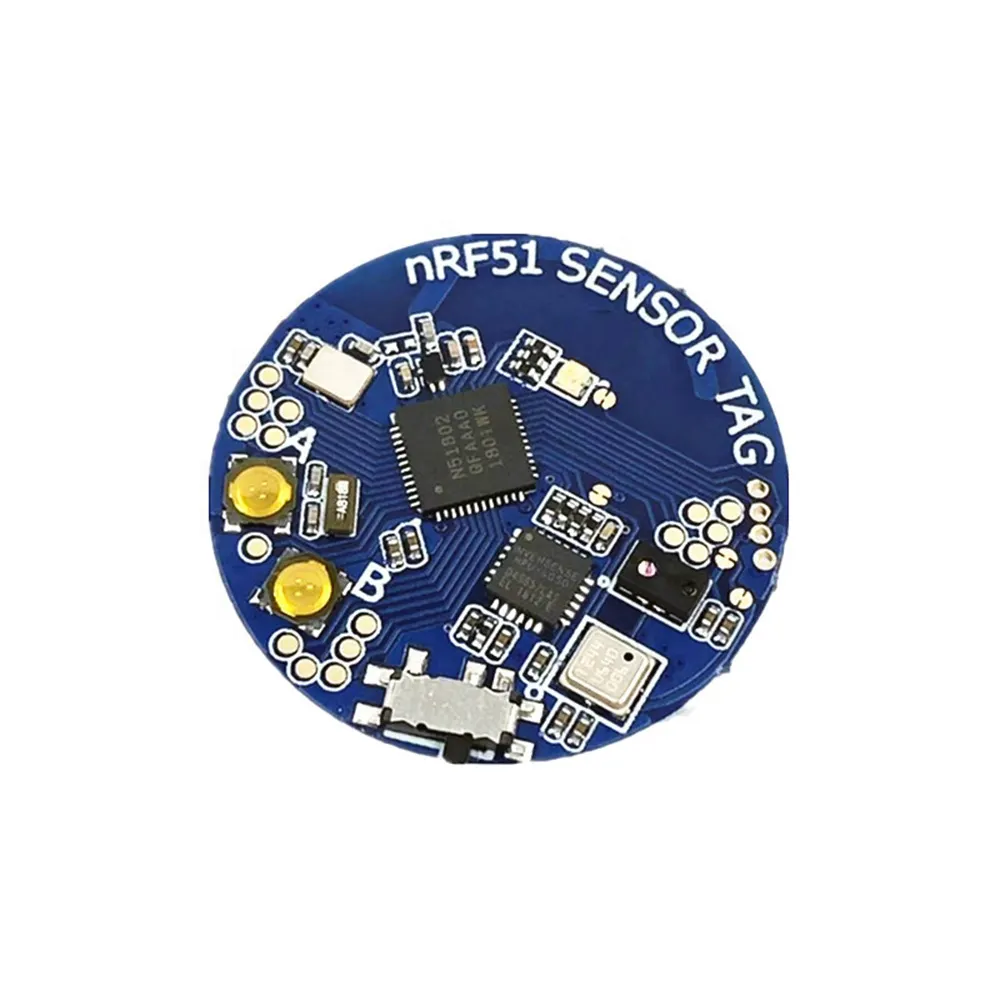

BMP180 Ble 4.0 SOC Air Pressure Temperature Sensor AP3216 Ambient Light MPU6050 Motion Detection nRF51822 Beacon
Product Description
The Ble wireless sensor board integrates a 3-axis acceleration sensor, 3-axis angular velocity sensor, air pressure sensor, ambient light sensor and Ble 4.0BLESOC. The Ble chip uses the industry-leading nRF51822 chip introduced by Norway NORDIC. When shipped, the wireless sensor board will come with a program. As long as the user installs a CR2032 battery and then turns on the power switch, the wireless sensor will automatically send a Ble 4.0 broadcast. The device name is "SENSOR". When the user runs the APP on the host computer (tablet, mobile phone, etc.) and scans for this BLE peripheral, the connection can be established without entering a password. After establishing the connection, the Ble wireless sensor will periodically read the data of each sensor, and then send these data to the host.
|
1
|
Based on nRF51822 Ble 4.0BLE SOC, which has leading power consumption performance in the industry
|
|
2
|
ARM CORTEX-M0 kernel
|
|
3
|
Using 3-axis acceleration 3-axis gyroscope chip MPU6050
|
|
4
|
BMP180 temperature and pressure sensor chip, sensing pressure range: 300-1100 hPa; temperature range: -40- + 85 degrees Celsius
|
|
5
|
Ambient light proximity sensor chip AP3216
|
|
6
|
There is a power switch
|
|
7
|
CR2032 button battery powered, no battery by default
|
|
8
|
30mm * 30mm volume
|
|
9
|
Support customers to request customization
|
|
10
|
Support iBEACON function
|
Instructions
1. Install the host software. Please install MCP on the Android device. There are files in the attached materials. For IOS devices, please log in to APPSTORE to install LIGHTBLUE online. We do not provide LIGHTBLUE installation files. 2. Install the battery. Please put the purchased CR2032 battery into the battery compartment on the back of the sensor. 3. Turn on the power switch sensor to face the user, toggle the power switch on the right to turn on the power. 4. Run the host software, scan the peripherals to turn on the Ble of the mobile phone, run MCP or LIGHTBLUE, and scan the Ble peripherals. 5. Establish a connection, look at the data, select "SENSOR", establish a connection, enable "NOTIFY", you can view the data.
