Description

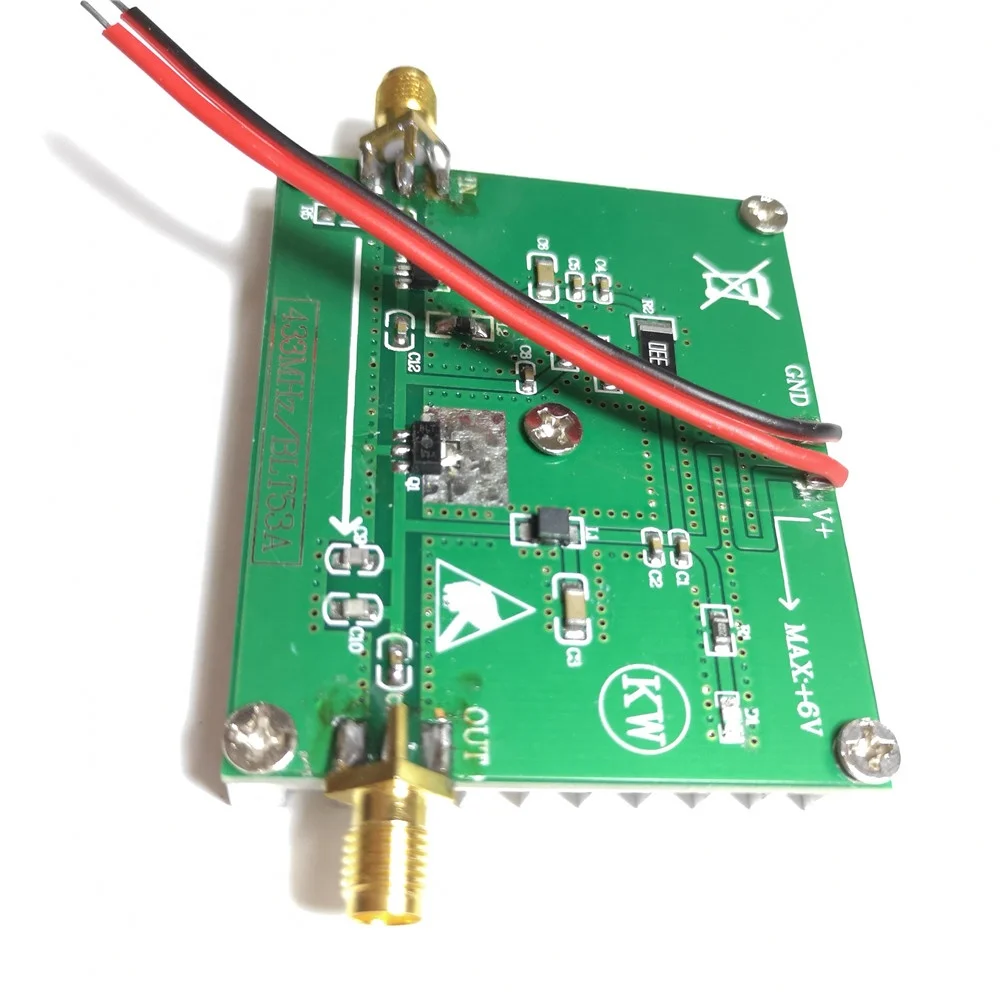

BLT53A 433M RF Power Amplifier UHF Wireless 2W High Power PCB RF Power Amplifier with Preamplifier with SI4463 SI4432
Product Description
BLT53A 433M RF power amplifier 2W high power with si4463, SI4432 data transmission module
Specification
|
item
|
value
|
|
Product Name
|
BLT53A power amplifier 433MHz power amplifier 315MHz power amplifier
|
|
Power supply
|
+6V(max power) High voltage version Max power current: 700mA
|
|
Size
|
60mm*50mm
|
|
Input resistance
|
50Ω
|
|
Input power
|
Less than 2dBm (with preamplifier)
|
|
Maximum output power
|
33dBm = 2W power output (measured value) to reach the maximum power such as input power of 2dBm
|
|
Applicable frequency band
|
300MHz~650MHz
|
|
Main frequency point power
|
315MHz(33dBm) 433MHz(33dBm)
|
Details Images
