Product Description

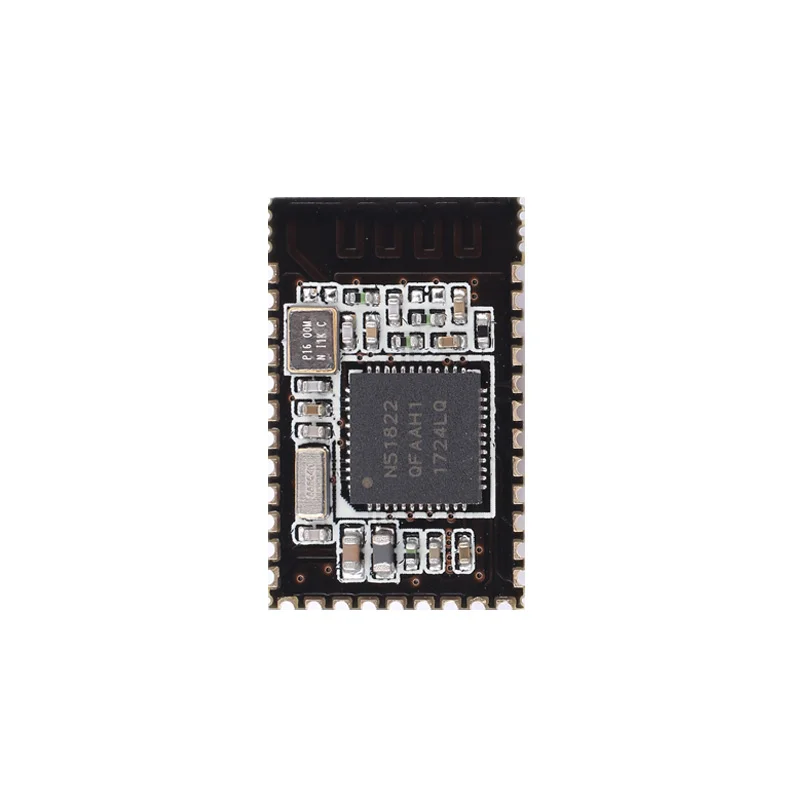

51822-A1 BLE Module
We will provide complete hardware and software reference schemes to shorten the product R & D cycle and save cost for you.
|
Technical indicators
|
parameter
|
remarks
|
|
working voltage
|
DC 1.8V to 3.6V
|
|
|
working frequency
|
2400~2483.5MHz
|
|
|
Number of channels
|
40
|
|
|
modulation mode
|
GFSK
|
|
|
output power
|
- 20dBm ~+4 dBm
|
Programmable configuration
|
|
Emission current
|
0.5mA Power=0dbm
|
related to output power
|
|
Receiving sensitivity
|
- 93dBm
|
|
|
Receiving current
|
9.7mA
|
|
|
Standby current
|
420nA
|
@ 3V OFF MODE
|
|
transmission speed
|
1Mbps
|
250\1m\2m optional
|
|
Chip flash memory
|
256KB
|
128KB optional
|
|
Chip RAM
|
16KB
|
|
|
Antenna
|
PCB Antenna
|
|
|
Communication distance
|
> 50m
|
+ 4dBm output power
|
|
Dimension
|
19mm*12mm*1.5mm
|
|
NO.
|
PIN
|
Function
|
|
1
|
VCC
|
Power
|
|
2
|
P002 AIN3
|
IO Analog Input/ADC Input3
|
|
3
|
P001 AIN2
|
IO Analog Input/ADC Input2
|
|
4
|
P000 AIN1
|
IO Analog Input/ADC Input1
|
|
5
|
P030
|
IO
|
|
6
|
P029
|
IO
|
|
7
|
P028
|
IO
|
|
8
|
P026....P017
|
IO
|
|
9
|
SWCLK
|
Download debug port
|
|
10
|
SWDIO RESET
|
System reset (active at low level) Download debugging port
|
|
11
|
P016....P007
|
IO
|
|
12
|
P006 AIN7 AREF1
|
IO Analog Input/ADC Input7 Analog Input/ADC Reference voltage
|
|
13
|
P005 AIN6
|
IO Analog Input/ADC Input6
|
|
14
|
P004 AIN5
|
IO Analog Input/ADC Input5
|
|
15
|
P003 AIN4
|
IO Analog Input/ADC Input4
|
|
16
|
GND
|
Ground
|
Internal structure diagram
Specification
|
item
|
value
|
|
Model Number
|
51822-A1
|
|
Type
|
Bluetooth 4.0
|
|
Country of Origin
|
China
|
|
Chipset
|
nrf51822
|
|
Application
|
Kids/student tracking&location
|
