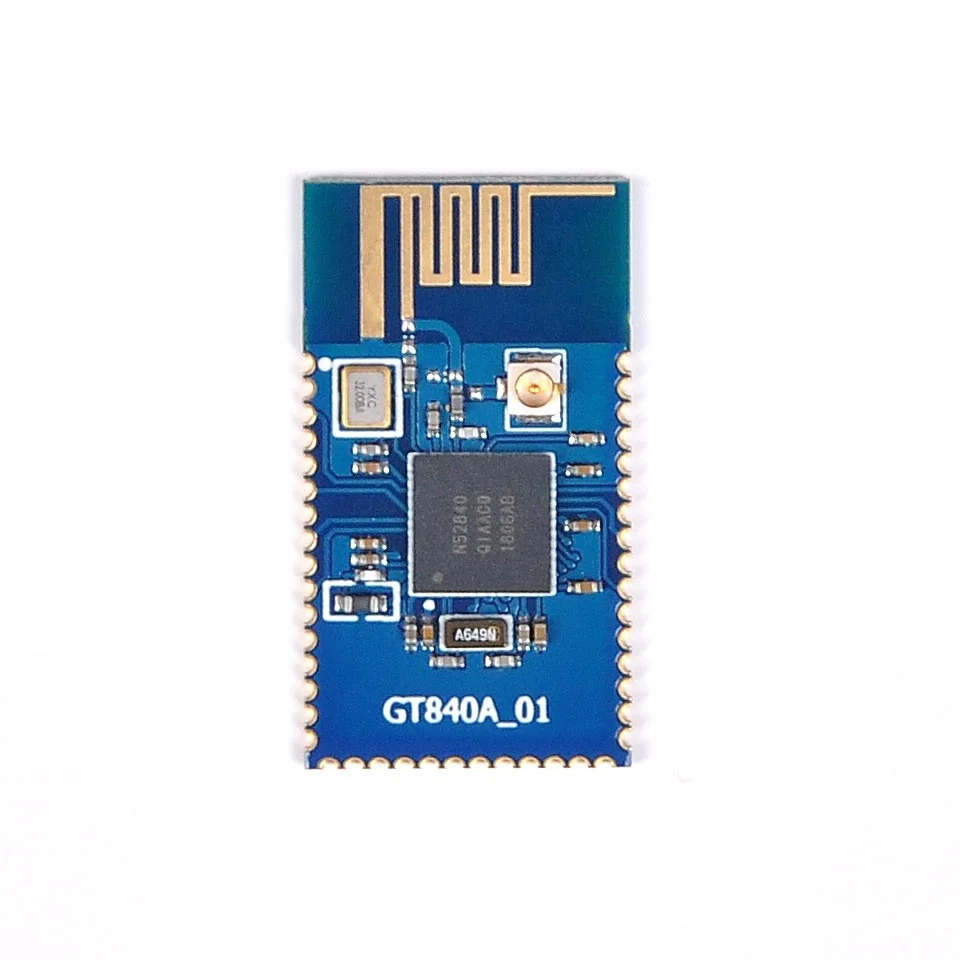

Ble 5.0 Ble Mesh Module Low Power Consumption Module Ble Mesh Controller ZIGBEE GT840A01 NRF52840
Product Description
Adopts the industry's first M4 core, 1MB FLASH, 256K RAM, NFC-enabled multi-protocol SOC NRF52840 chip
Adopt 1.27mm stamp hole method
All adopt branded inductor and capacitor components, the antenna is specially designed, and the high frequency performance is superior.
Small size, only 1.6 * 2.9CM.
Lead to nRF52840 most GPIO
Reserved IPEX antenna interface, support external antenna
Adopt 1.27mm stamp hole method
All adopt branded inductor and capacitor components, the antenna is specially designed, and the high frequency performance is superior.
Small size, only 1.6 * 2.9CM.
Lead to nRF52840 most GPIO
Reserved IPEX antenna interface, support external antenna
|
Parameter
|
||
|
Power consumption
|
4.9mA TX at 0dBm 4.8mA RX at 1Mbs
|
|
|
Transmitting power
|
-20dBm-8dBm
|
|
|
Ultra low standby current
|
1.3uA
|
|
|
Receive sensitivity
|
-95dBm @1M bps BLE mode
-103dBm @long range mode |
|
64MHZ external clock
On-chip integrated 1MB FLASH, 128KB RAM
PPI channel
Integrated NFC, support for near field detection and wake-up
Integrated BALUN (more than 4 peripheral components are omitted)
Integrated PDM, IIS interface
4-channel PWM output
12BIT 200KSPS ADC
Full speed USB 2.0 interface
On-chip integrated 1MB FLASH, 128KB RAM
PPI channel
Integrated NFC, support for near field detection and wake-up
Integrated BALUN (more than 4 peripheral components are omitted)
Integrated PDM, IIS interface
4-channel PWM output
12BIT 200KSPS ADC
Full speed USB 2.0 interface
