BLE 4.1 2 Channel Remote Control Relay Switch Controller iOS Android Smart Phone BLE Relay Control for Open Door
Product Description

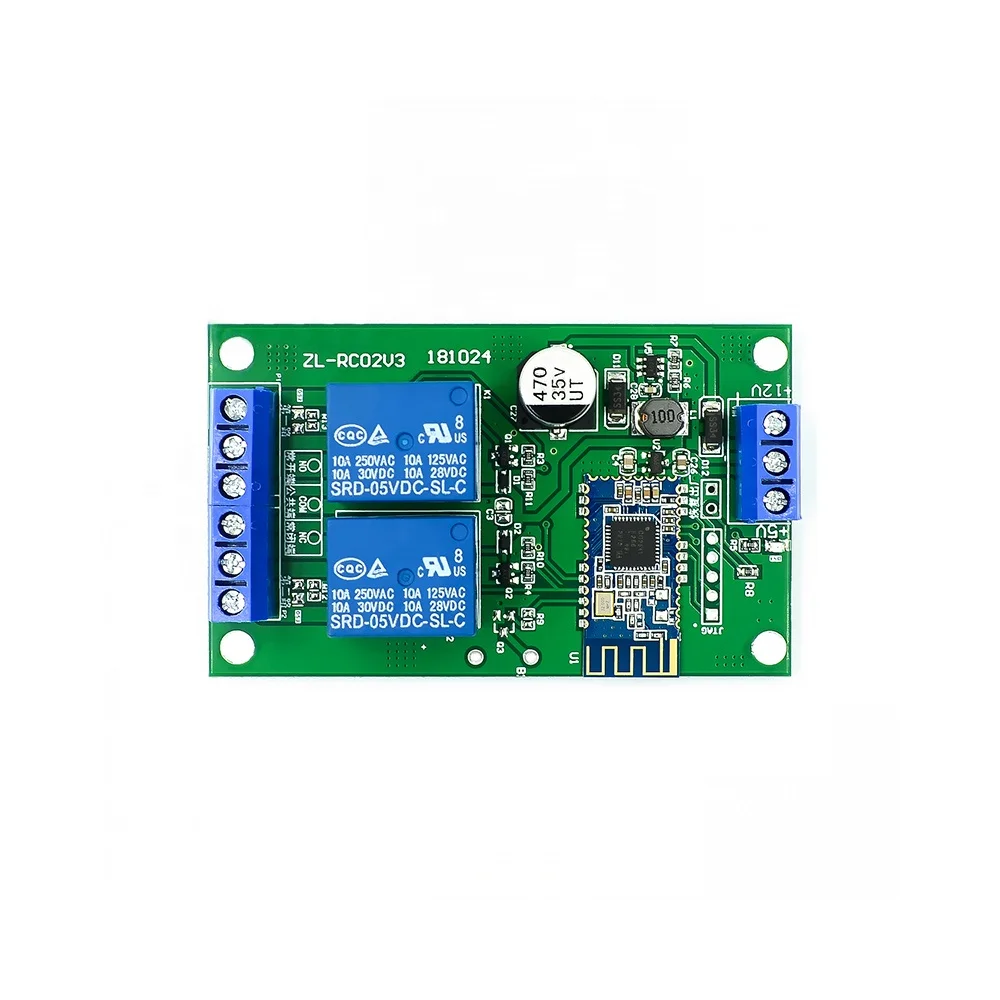

ZL-RC02D is based on CYPRESS CY8 series Ble 4.1 chip relay control module, this module has control relay action, ibeacon and password verification and other functions, with a powerful AT command can be flexibly applied to a variety of Ble control.
CYPRESS CY8 series Ble 4.1 chip core for the 32-bit ARM Cortex-M0, powerful, transmission rate and function far more than TI's CC254X program.
With Ble 4.1BLE communication module, you can support Android and iOS phones. Android phone hardware must support Ble 4.0, the system version of Android 4.3 or more, no matching password, mobile phone installation software directly search connection operation.
CYPRESS CY8 series Ble 4.1 chip core for the 32-bit ARM Cortex-M0, powerful, transmission rate and function far more than TI's CC254X program.
With Ble 4.1BLE communication module, you can support Android and iOS phones. Android phone hardware must support Ble 4.0, the system version of Android 4.3 or more, no matching password, mobile phone installation software directly search connection operation.
The function of the ZL-RC02 two-way Ble relay switch module is to perform wireless switching after connecting the module through a Ble host device (such as a computer or mobile phone). Each relay switch is an independent module, and each relay interface is defined as NO, A/B, NC. When the relay is off, A/B and NO are connected, and after the relay is closed, A/B and NC are connected. Here the relay interface is mechanically connected and has no electrical output.
Features
◆Support Android and Apple mobile phone APP connection. ◆Support WeChat Mini Program ◆Support to modify password and name. ◆ 5V and 6-24V power supply options. ◆Support jog, delay, self-locking, mutual exclusion mode.
Product Paramenters
|
Input voltage (module supply voltage)
|
5V/ 6-24V
|
|
Ble version
|
Ble 4.0BLE (iOS, Android mobile phone general)
|
|
Number of switches
|
2 way
|
|
Quiescent current
|
15mA
|
|
Control method
|
Jog, self-locking, mutual exclusion, delay
|
|
Working temperature
|
-20℃ to 70℃; humidity≤95%
|
|
Storage temperature
|
-20℃ to 70℃: humidity≤95%
|
|
Encryption feature
|
8-bit software password
|
|
Output port control voltage
|
0-220V10A below equipment
|
|
Size
|
60*51*17mm
|
|
Interface definition
|
||
|
Interface Definition
|
Description
|
|
|
+5V
|
5V DC positive power supply
|
|
|
GND
|
DC negative power supply
|
|
|
+12V
|
6 to 24V DC power supply positive
|
|
|
COM
|
Relay common
|
|
|
NO
|
relay normally open
|
|
|
NC
|
Relay normally closed
|
|
Description of relay operation status
After getting the product normally, the default state of the module is self-locking without delay. Currently our relay supports the following actions: (1) Relay self-locking mode: that is, each relay opening and closing is a two-step operation and requires two commands to control. The performance on the software page is to press the button to open, and then press to close. (2) Relay jog mode: This mode has no change for the module, but it can be switched in the app, which is shown as pressing the button to turn on the relay, releasing the button, and turning off the relay. (3) Relay delay mode: that is, after each relay sends an open command, the relay opens, and automatically closes after a specified delay. (4) Relay timing action: The relay can be set to open, close, and jog regularly. (5) Mutually exclusive action of relays: Mutually exclusive action of two relays, one way open and the other way close. (4) Automatic disconnection function for long time Ble occupation: This function is to prevent the module from being occupied by the mobile phone app for a long time. After it is turned on, Ble is automatically disconnected after being connected for a period of time without any action. Smart cell access control version is applicable. (5) Automatic disconnection function after one action is completed: This function is set in order to cooperate with some Android phones that cannot be actively disconnected, that is, after the module is connected and an action command is sent, the module automatically disconnects after the action is completed. Smart cell access control version is applicable.
