Description

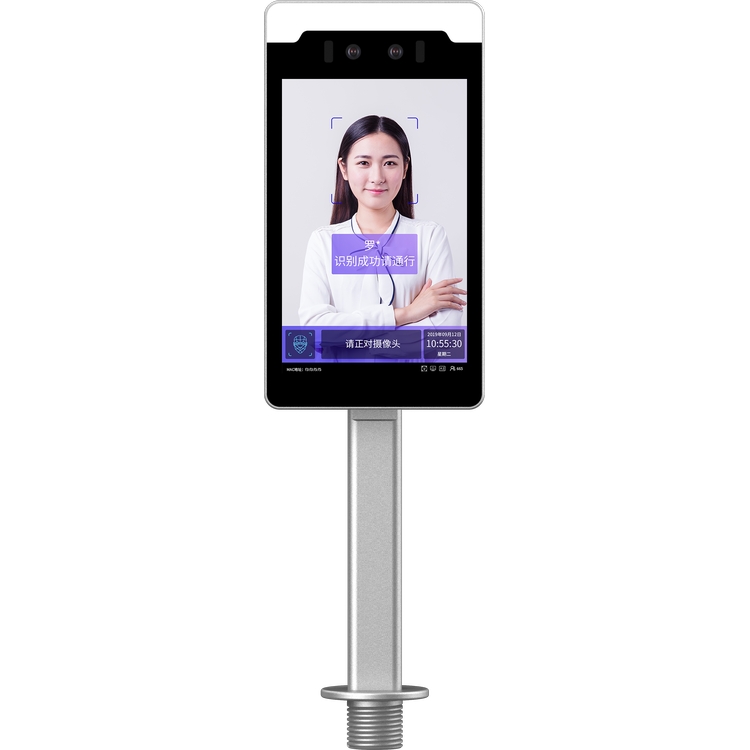

Biometric Face Recognition Access Control Device and time attendance reader
| Product model | 108R-B | 108R-Z | |
| Basic parameters | Installation scenarios | Wall installation | Gate installation |
| Operating temperature and humidity | -10ºC to 55ºC, <90ºC RH | ||
| Protection level | IP55 | IP55 | |
| Application scenarios | Indoors | ||
| Dimensions | 238*128*21.5mm (Height*Width*Thickness) | 389*128*21.5mm (Height*Width*Thickness) | |
| Material | Aluminum alloy | ||
| System parameters | System | Embedded Linux system | |
| CPU | High-performance embedded processor | ||
| Storage | Internal storage 1GB, data storage 8GB | ||
| Display screen | 8’’ HD LCD with resolution of 800*1280 | ||
| Lens focus | 4.5mm | ||
| Camera | Binocular camera, 200W pixels with WDR | ||
| Recognition performance | Recognition distance | 0.3-3m(The best recognition distance is within 2 meters) | |
| Recognition time | Less than 400ms | ||
| Storage capacity of face database | 1: N, N<=50000 | ||
| Accuracy | 99% | ||
| Peripheral interface | Power interface | 1 x DC12V, DC005 female 2.1*5.5 | |
| USB interface | 1 x USB2.0 | ||
| Relay output | 1 x on-off output, 2PIN 3.8 spacing terminal | ||
| RJ45 cable interface | 1 x RJ45 Internet access | ||
| Wiegand output interface | 1 x WG output | ||
| Door sensor signal | 1 x door sensor detection | ||
| Firefighting linkage | 1 x firefighting linkage | ||
Different ways of using it
case
