Description

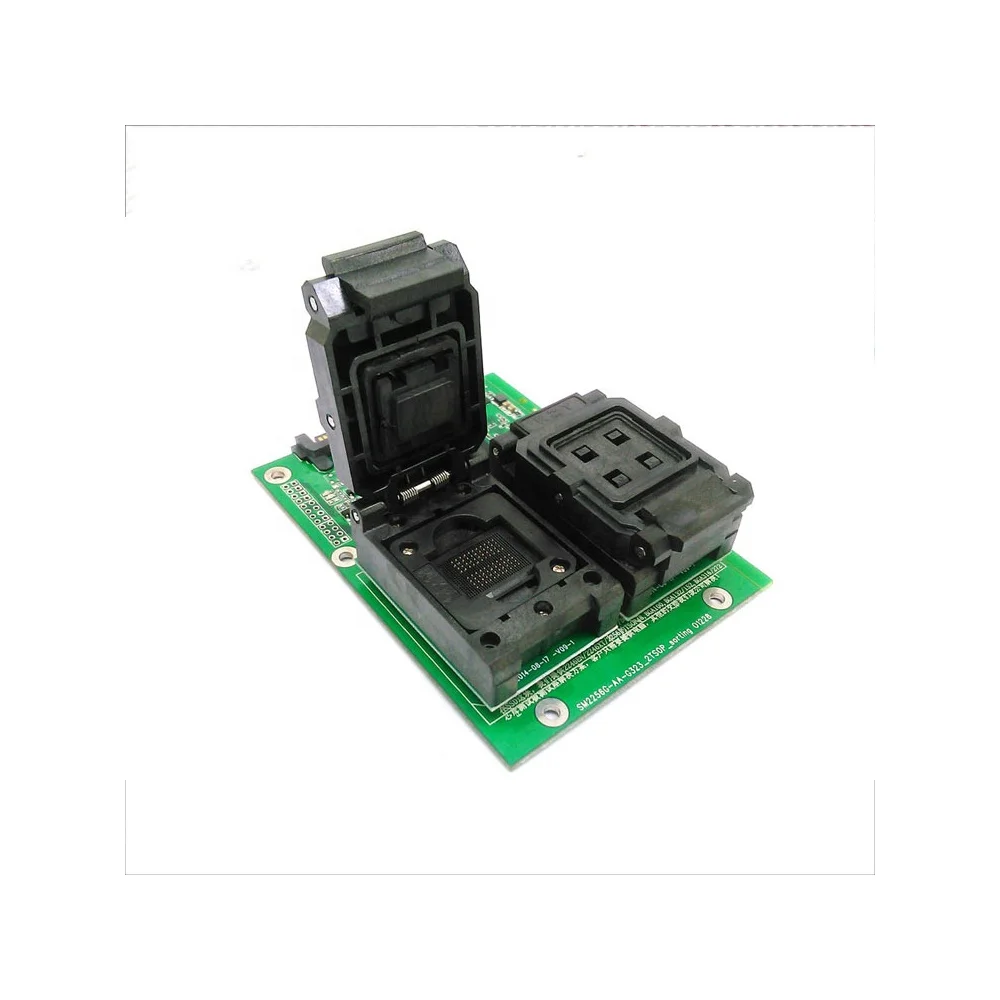

BGA Socket Adapter Clamshell Double-sided a Drag Two Turn SSD Test Socket BGA152 to DIP48 SM2256K Master BGA152
Product Description
Product introduction
Product use: programming base, test base, test and read data of IC chip of BGA152 Applicable package: BGA152, BGA132 lead pitch 1.0mm Test stand: BGA152 / 132-1.0 Special note: For the time being, only TLC-level FLASH can be supported, and chips below 4CE can be supported.
Features
1. Can test all kinds of packages such as FLASH BGA100 / 132 / TSOP48 / LGA and DIP48 test sockets 2. Each test socket has been converted to the industry-standard 48pin defined by our company, which can be used not only on solid-state hard disk test racks, but also can be inserted in U with our test socket if there are some chips that cannot be used for SSD level. The one-to-four test rack of the disk solution is tested on the test rack, which reduces the cost of the test rack for customers.
SM2256K master
Model
BGA152 / 132-1.0
Pin pitch (mm)
1.0
Pin
88
Adapter chip size
12 * 18mm or 14 * 18mm replaceable limit box, buy the chip size.
