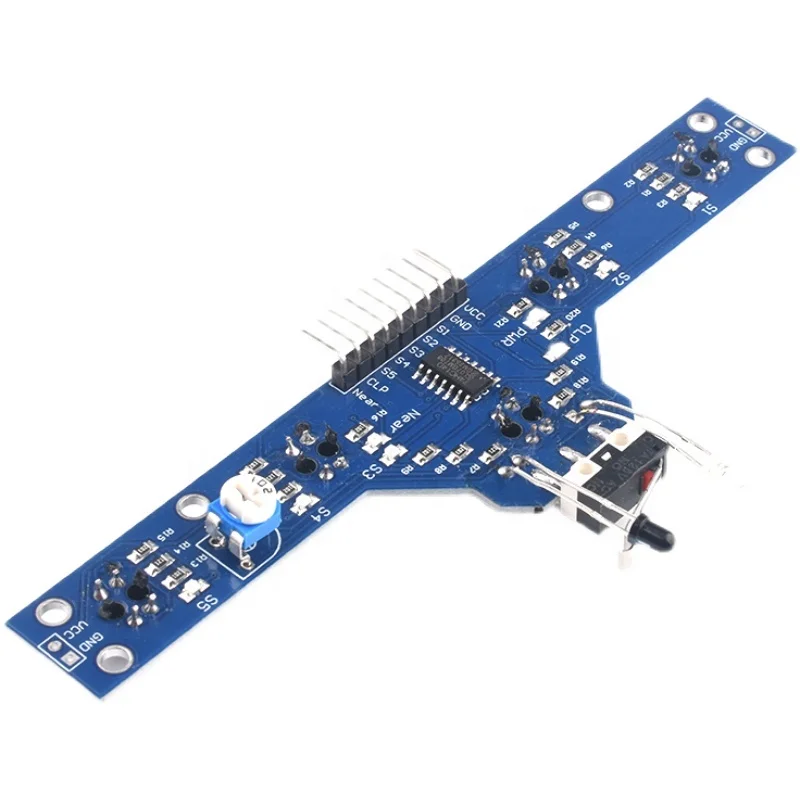

BFD-1000 5 Way Tracking Module Obstacle Avoidance Detection Sensor High-Sensitivity IR Tracking Sensor Detection
Product Description
This module is a cost-effective, multi-functional tracking module for the majority of friends who want to make tracking robots. This module is sufficient for daily tracking tasks, and it also has an infrared distance detection sensor, touch The detection sensor enables the robot you design to adapt to more situations.
BFD-1000 is specially designed for black (white) line search, especially suitable for the detection of complex black and white lines and cross black and white lines. It has 6 high-sensitivity infrared sensors (5 patrol lines, 1 barrier), Able to accurately identify black and white lines, it has the following functions and features:
1. BFD-1000 integrates 5 high-sensitivity tracking sensors, which has little impact on the environment, can accurately track complex black lines (white lines), and is more comfortable with simple black line tracking. 2. BFD-1000 integrates an infrared barrier sensor, and the barrier distance can be adjusted by sliding rheostat. 3. BFD-1000 has a specially designed touch detection sensor, which makes the design of the shuttle robot easier. 4. All the output signals of BFD-1000 are digital signals (high and low level), which is convenient to connect with the single-chip microcomputer. 5. The output status of all sensors of BFD-1000 is indicated by LED lights, which is convenient for debugging. 6. BFD-1000 supports a voltage of 3.0-5.5v to meet most system requirements. 7. Using a high-sensitivity sensor, the tracking range can be arbi
Specification
|
item
|
value
|
|
Detection distance
|
0-4 cm (black and white line sensor) 0-5 cm (adjustable distance detection)
|
|
Input voltage
|
3.0-5.5V
|
|
Output form
|
digital output (high and low level)
|
