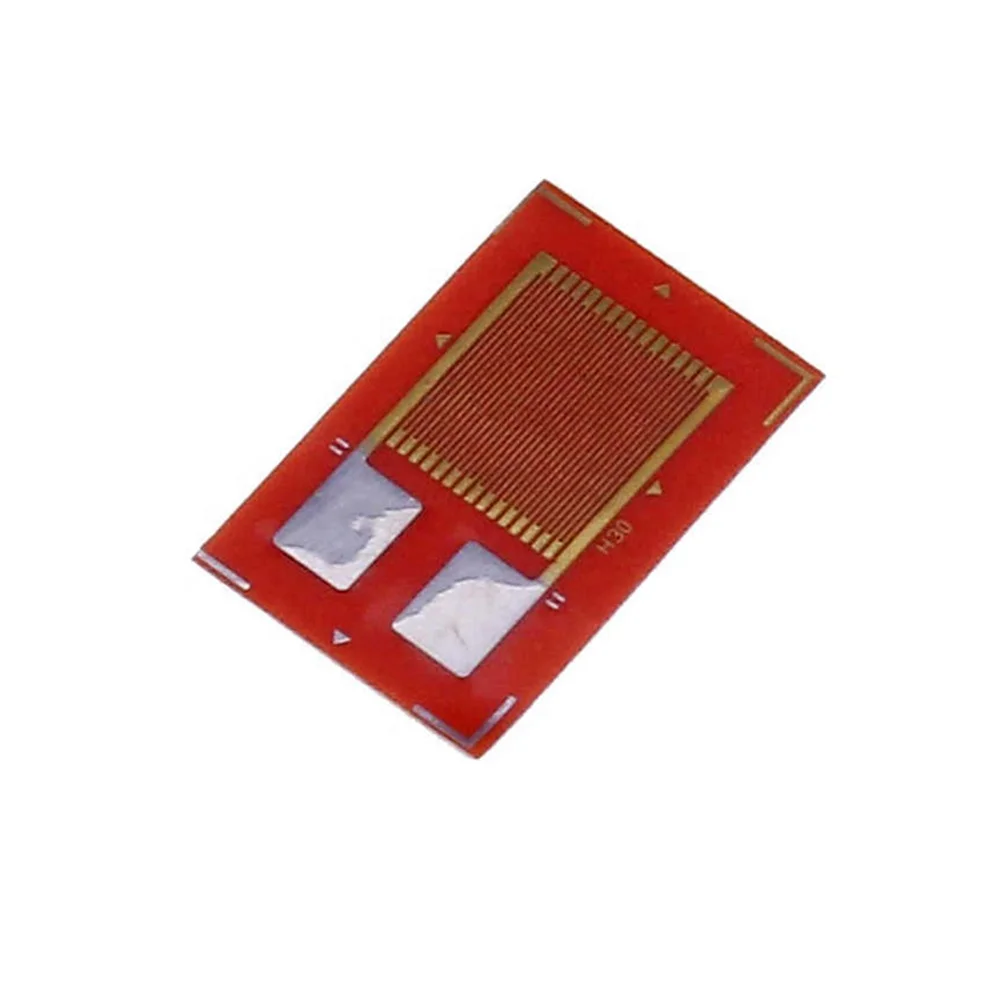

BF350-3AA High-precision Resistance Metal Foil Strain Gauge Load Cell Strain Gauge Pressure Sensor 350 ohm

Pressure Sensor
$1.27
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
BF350-3AA High-precision Resistance Metal Foil Strain Gauge Load Cell Strain Gauge Pressure Sensor 350 ohm
Product Description
Model
BF350-3AA Constantan metal foil resistance strain gauge
Resistance
349.8 +/- 0.1 Ω
Sensitivity coefficient
2.0-2.20
Accuracy grade
0.02 grade
Strain limit
2.0%
Monolithic size
7.1mm * 4.5mm
Strain limit
2.0%
Fatigue life
≥1M
Foil metal strain gauge. Grid Material Constantan Substrate Epoxy-modified phenolic Base thickness (um) 32 ± 1 Insulation resistance 10000 ohms BF350-3AA (23) N8 Product model length x width 3.1x3.5 Base size length x width 7.1x4.5 In the strain gauge model, N * is the creep label. Different labels have different creep values. The law is: (+) N9> N7> N5> N3> N1> N0> N8> N6> N4> N2> T0> T2> T4> T6> T8> T1> T3> T5 (-) The difference in actual creep value between adjacent labels is 0.01-0.015% FS / 30min
Details Images
