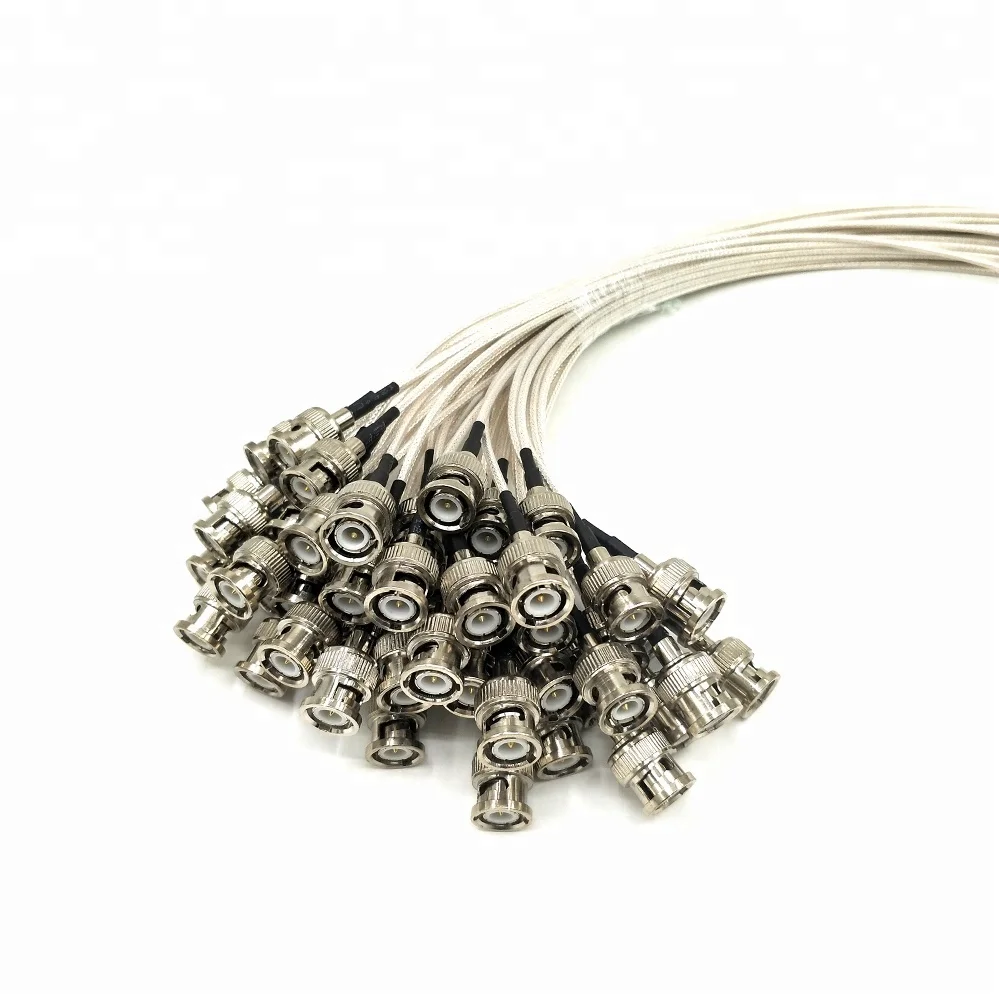

Best quality Copper Pin gold plated spring end RG58/59/60 BNC connector with Screw
Product Description
Type BNC is one of RF coaxial connectors using a bayonet type coupling mechanism, characteristic impedance has two types: 50ohm and 75ohm. They can be quick connect/disconnect, reliable lock etc. they are widely used in connection with the RF coaxial cables in computer filed, network of wireless, medical equipment and electronic instrument.
| Material | Shell | Brass, gold/nickel plated |
| male center contact | Brass,gold plated | |
| female center contacts | Gold plated, beryllium copper | |
| Insulators | PTFE | |
| Gaskets | Silicone Rubber | |
| Crimp Ferrules | Copper Alloy,Nickel Plated | |
| Electrical | Characteristic impedance | 50Ω, 75ohm |
| Frequency range | DC-4GHz | |
| Dielectric withstand voltage | 1500V RMS at sea level | |
| Insulation resistance | ≥ 5000MΩ | |
| Contact resistance | Center contact ≤ 1.5MΩ | |
| Outer contact ≤ 1.0MΩ | ||
| Durability | Mating Cycles ≥ 500 | |
| Operating Temperature | -55 to +155 Deg C |
Packaging & Shipping
Packaging Details:gold plated bnc connector will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: About 7 workdays after payments.
