Description
Product Description

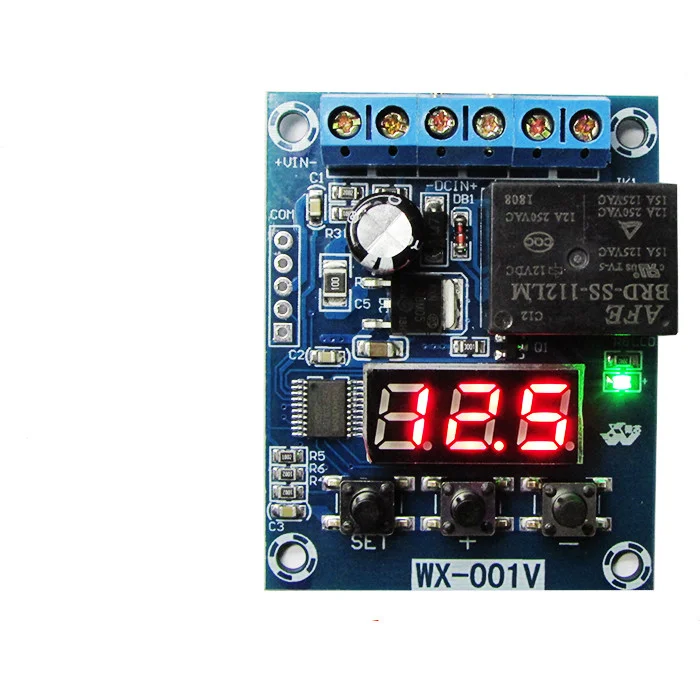

Battery Voltage Monitor Module DC 12V Low Voltage Cut Off Charge Discharge Protection Board for 0-99V Lead Acid Li Battery
Descriptions:
[INDEPENDENT WORKING VOLTAGE]In order to avoid consuming the voltage of the battery being measured, the device can be separately connected to another power supply as its working voltage
[CHARGE AND DISCHARGE PROTECTION]You can freely set the charging or discharging mode and set parameters. For example, when the battery voltage reaches the set voltage, the module will automatically disconnect to avoid battery over-discharging and prolong battery life
[INTERZONE VOLTAGE PROTECTION]This means that you can set the number of values between which the voltage will disconnect or connect the relay
[FIXED VOLTAGE MONITORING]When the measured voltage is higher than the set voltage value, the relay is connected, otherwise it will be disconnected. Alternatively, you can set it to always stay connected until you manually power off, and the relay outputs a pulse signal when the measured voltage is equal to the set voltage (up and down 0.1V)
[PARAMETER]Working voltage: DC 12V; Measuring Range: DC 0-99.9V; Board size: 43.7*56mm; Load current:15A(Max); Load voltage:DC0-30V or AC0-250V
