Description
Battery Test Monitor 200V Volt Current Capacity Residual Current Monitoring Electric Meter Battery Powered LCD Monitor
Product Description
Function

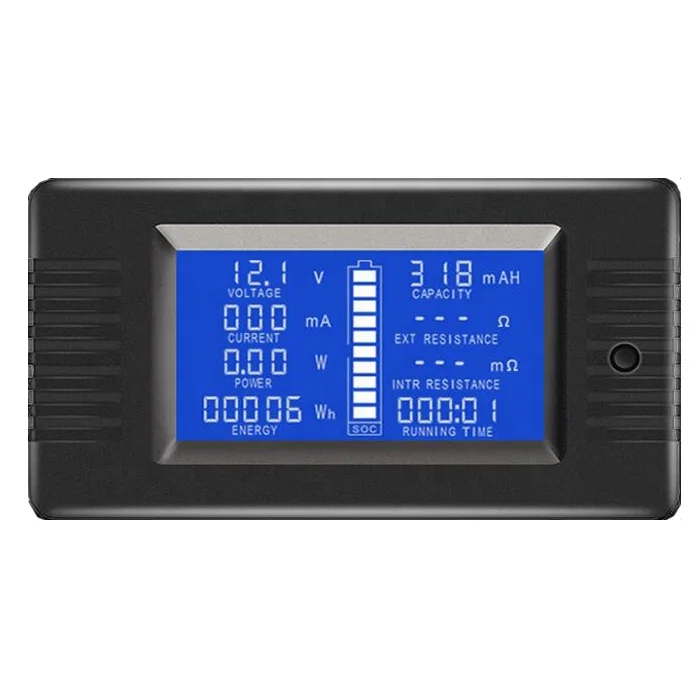

Display 9 sets of data on one screen Most of the products on the market display a single set of data functions, and the upgrade model can display 9 sets of measurement parameters at the same time, and various parameters are clearly visible. Full viewing angle LCD Sampling blue film STN full viewing angle LCD screen Built-in backlight function With backlight function, it is clearly visible during day and night, and LCD LCD looks better for visual experience. Screwless installation Push-on terminal block, no screws required, quick and easy to install.
Product Paramenters
|
Voltage measurement range
|
0-200V (<8V requires external power supply)
|
|
Current measurement range
|
0-10A (Model: PZEM-013)
0-300A (Model: PZEM-015), can set 50A, 100A, 200A, 300A four ranges, according to the external shunt specifications, the factory default 100A |
|
Power measurement range
|
0-2000W or 0-60000W
|
|
Capacity measurement range
|
0-1000AH
|
|
Energy consumption measurement range
|
0 ~ 9999kWh
|
PZEM-013 display function introduction 10A range (built-in shunt)
Current Measuring range: 0-300A <1A shows 999mA Voltage Measuring range 0-200V <10V display such as 9.99V impedance Measuring range: 0-1000 Ω <100Ω shows 99.9Ω Capacity Measuring range: 0-1000AH <1AH such as: 999mAH Power Humidity measurement range: 0-60000W Display format <10W Showing 9.99w Internal resistance Measuring range: 0-999mΩ Display format: 999mΩ Energy consumption Measuring range 0~9999kWh Display format <1kWh Display like 999Wh Operation hours Range 0~999 hours Format 0:00:00~999:59 Remaining battery The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid representing 10% of the electricity.
PZEM-015 display function introduction 300A range (external shunt, can be equipped with 50A, 100A, 200A, 300A four shunts)
Current Measuring range: 0-300A <1A shows 999mA Voltage Measuring range 0-200V <10V display such as 9.99V Impedance Measuring range: 0-1000 Ω <100Ω shows 99.9Ω Capacity Measuring range: 0-1000AH <1AH such as: 999mAH Power Measuring range: 0-60000W Display format <10W Showing 9.99W Internal resistance Measuring range: 0-999mΩ Display format: 999mΩ Energy consumption Measuring range 0~9999kWh Display format <1kWh Display like 999Wh operation hours Range 0~999 hours Format 0:00:00~999:59 Remaining battery The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid representing 10% of the electricity.
Details Images
